295-9890 2959890 CYLINDER GP LIFT KIT E 320D3 323D3 WHEEL LOADER 950G 950H 962G H IT62G IT62H
1. Repair Seal Kit Details
| Part NO | 295-9890 2959890 |
| Machine | E 323D3 950G 950H 962G H IT62G IT62H |
| Size | 76.15mm U-ring |
| Material | PU/NBR/SPCC |
| Oil seal type | LIFT CYLINDER SERVICE KIT |

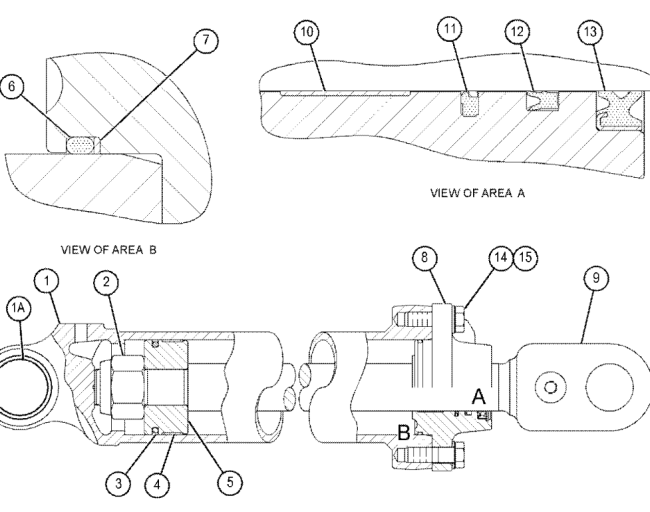

2. 295-9890 PART NO. ON CYLINDER:
| Pos. | Part No | Qty | Parts name |
| 1 | 125-0028 | [1] | CYLINDER AS |
| 1A. | 3G-7624 | [1] | BUSHING |
| 2 | 3J-6899 | [1] | LOCKNUT (2-1/4-12-THD) |
| 3 | 8C-9173 | [1] | SEAL AS |
| 4 | 1J-0708 H | [1] | RING-WEAR |
| 5 | 125-0027 | [1] | PISTON |
| 6 | 6D-9157 | [1] | SEAL-O-RING |
| 7 | 8J-1717 H | [1] | RING-BACKUP |
| 8 | 125-0026 | [1] | HEAD |
| 9 | 125-0025 | [1] | ROD AS |
| 10 | 8T-7584 | [1] | RING-WEAR |
| 11 | 312-4248 CH | [1] | SEAL AS-BUFFER |
| 12 | 421-4025 | [1] | SEAL-U-CUP |
| 13 | 312-4247 | [1] | SEAL-WIPER |
| 14 | 6V-8237 | [4] | WASHER (26X44X4-MM THK) |
| 15 | 8T-0664 | [4] | BOLT (M24X3X70-MM) |
| 295-9890 | [1] | KIT-SEAL |

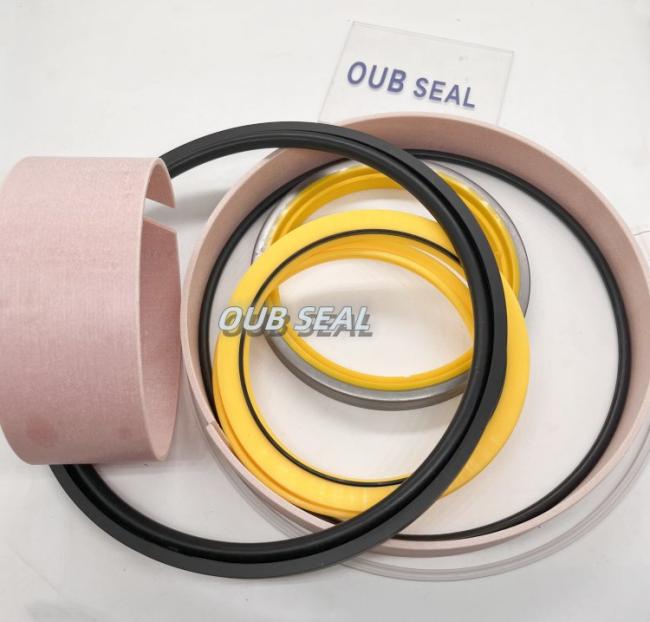

3. Picture viewing for 295-9890
4. E SERVICE KIT NO. AND PART NO.
| SERVICE KIT No. | Part No. | Part No. |
|
295-9890 |
3769012 |
2179894 |
| 2959890 | 3651289 | 3314221 |
| 295-9890 | 2641260 | 2040273 |
| 2281779 | 2671414 | 3179183 |
| 2281775 | 1514999 | 2280807 |
| 3746391 | 2710259 | 3561178 |
5. FAQ
Q1. What kind of cylinder service kit do you have?
A1. We have cylinder kits such as boom,arm,bucket,blade lift,tilt,ripper,counter weigh,adjuster,positioning cylinder.
Q2. Why can't I find what I need on your website?
A2. There are too many product egories to upload to the website one by one.you can contact
Q3. Can you quote for the size and picture?
A3. Of cause!We can check by a part no.or machine no.or size or picture.becuase we are professional.
6. Exhibition & Warehous
Oil seals,Hydraulic Seals, Cylinders Seal Kits, And More
