Soundproof Outdoor Badminton Court Flooring SPU Coating
SPU Coating Sports Flooring For Basketball / Volleyball / Badminton Court Floor
Product Description
What is SPU?
It's a design based on human kinetics and physical characteristics flooring system, with hard top layer combined with soft rebound cushion lower layer structure. It's suitable to lay on concrete or asphalt substrates. The cushion layer is formed by single component modified polyurethane and top up with two-component modified acrylic resilience layer.
Excellent Performance
Hard Top Soft Down
The purpose of building sports courts is to ensure a professional,safe,healthy sports condition-the characteristics of hardness will bring the professional sporting feeling; the cushion effectively increasing the shock absorption and reduce the incidence of injuries to ankles,joints and ligaments.At the same time,it should reduce abrasion caused by failing and accident.
Standard Of Sports Performance
| Serial number | test project | technical requirement | test result |
| 1 | The springback value,% | ≥ 20 | 30 |
| 2 | Sliding friction coefficient | 0.4 ≤ u ≤ 0.7 | 0.53 |
| 3 | Compression recovery rate | ≥ 90 | 97 |
| 4 | Hardness(HA),20℃ | 35-50 | 47 |
| 5 | Tensile elongation,% | ≥ 90 | 172 |
| 6 | The tensile strength,Mpa | ≥ 0.5 | 1.5 |
| 7 | Flame retardant level | I | I |
| 8 | Vertical deformation,mm | 0.6-2.5 | 1.2 |
SPU Runway flooring Performance Data
| Inspection project | technical requirement | result of inspection | determine |
| thickness | ≥13 | 13 | reach the standard |
| shock absorption,% | 35-50 | 35.8 | reach the standard |
| vertical deformation ,mm | 0.6-2.5 | 1.48 | reach the standard |
| Anti-slide value(BPN 20ºC) | ≥47 | 56 | reach the standard |
| Tensile strength,MPA | ≥0.5 | 1.12 | reach the standard |
| Elongation at break,% | ≥40 | 138.6 | reach the standard |
| Fire resistance,level | 1(Burn spot diameter≤50mm) | 1(Burn spot diameter≤38mm) | reach the standard |
Health and Environmental Properties Data
| Inspection project | technical requirement | result of inspection | determine | |
| Benzene(mg/kg) | ≤50 | Did not check out | reach the standard | |
| BTX(mg/kg) | ≤50 | Did not check out | reach the standard | |
| Toluene diisocyanate(mg/kg) | ≤200 | Did not check out | reach the standard | |
| Soluble heavy metal | lead | ≤90 | 1.8 | reach the standard |
| cadmium | ≤10 | 1.3 | reach the standard | |
| chromium | ≤10 | 9.0 | reach the standard | |
| mercury | ≤2 | <1 | reach the standard | |

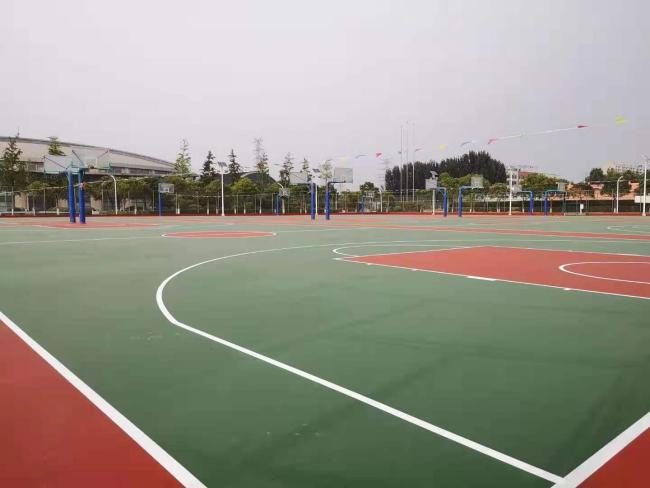

Project Case
