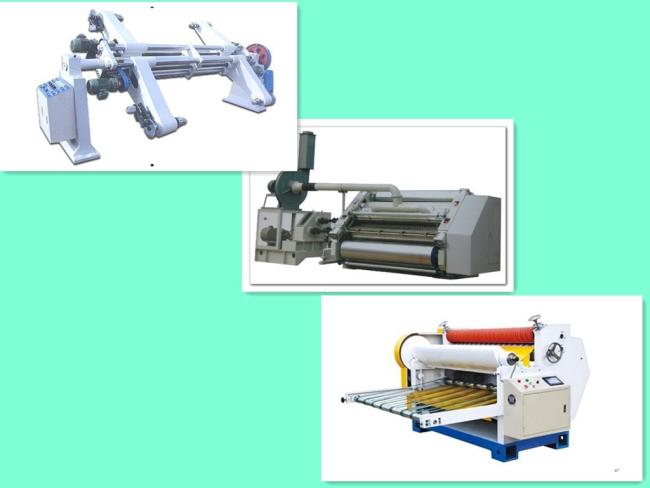

80 Meters/Min Single Facer Machine For 2 Ply Corrugated Flute Paper

Single Facer Machine For 2 Ply Corrugated Flute Paper

1.Designed speed: 100 m/min

2. Available width: 1400 mm,1600 mm,1800 mm.

3. Flute type: A, C, B, E, F for option

4. Electric,steam heating system of corrugator.

5. Immersed / closed gear box lubricating to reduce noise, universal joint power transmission, to insulate vibration.

6. Adjustment of upper corrugating roller, pressure roller, and glue roller, is controlled by pneumatic system

7. Suction blower type paper delivering with air speed adjusting device, to keep good flute shape under high speed running

8. Bearings of upper/lower corrugating roller, and pressure roller, use high-temperature-resist lubrication to keep running

smoothly and durably

9. Gluing section applies with automatic, self-circulating glue supply

10. Upper and lower corrugating machine rollers are made of 48CrMo alloy steel, with heated-treatment for hardness HRC56-60,

and the surface is well treated by grind , board machinery corrugating machine.

11. Surface treatment of gluing roller: Engrave reticulate and chrome plated .
