B Flute Single Facer Corrugated Cardboard Production Line 80 Meters/Min
Price:
USD 15000 - 50000 per set
MOQ:
1 set
Delivery Time:
25-40 days
Brand:
Dahua
Product Description

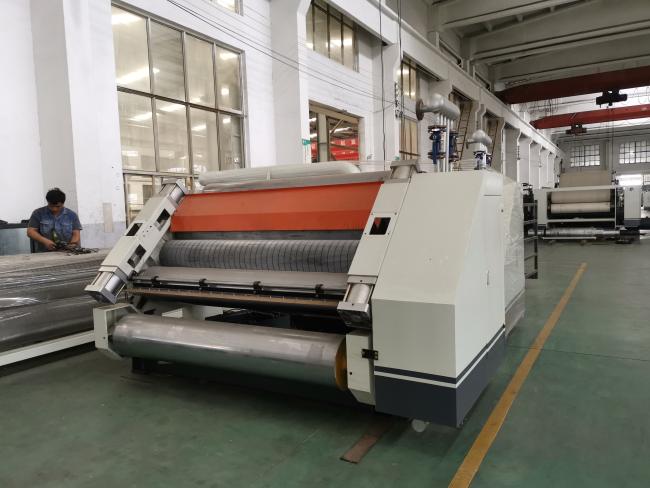

B Flute Single Facer Corrugated Cardboard Machine Corrugator Machine
Functional features
- 1. The single facer machine is vacuum suction type, make flute with good quality, wind amount is adjustable.
- 2. Glue roller and doctor gluer roller can be sided on rail, convenient to dismounting and install.
- 3. Gimbal connect independent gearbox with roller to drive machine, drive more stable and reliable, easy to maintain. Closed oil-immersed gear box, machine reduce vibrator.
- 4. Upper corrugator roller, pressure roller and glue roller up down controlled by pneumatic.
- 5. Upper and lower corrugated roller made from 48CrMo alloy steel with heat treatment, hardness 50-55 degree, surfaced be grinded and chrome plated.
- 6. Pressure roller made from 45# steel, precision grinded with chrome plated, crowning deign in middle, prolong use life.
- 7. Bearing of corrugated roller and pressure roller be lubricated by high temperature grease
- 8. Glue width adjust by motorized or manual
- 9. Glue section can drive separately when main motor stop, prevent glue is dry. (option configuration)
- 10. Glue amount adjusted by manual, electric adjust option as customized
Technical parameter:
| Working Width | 1600mm | 1800mm | 2000mm | 2200mm | ||||||
| Heating method | Oil heating / Steam heating/electrical heating | |||||||||
| Design speed | 80m/min | |||||||||
| Economical speed | 45-60 m/min | |||||||||
| Compress-air pressure | 0.4-0.9MPa | |||||||||
| Flute type | Standard flute | UV Flute | ||||||||
| Standard spec. | A,B,C,E,F | |||||||||
| For other type and model, we can produce as customer’s requirement. | ||||||||||
| Corrugated roll diameter (mm) | 280 | |||||||||
| Wall Thickness (mm) | 130 | |||||||||
| Type | Vacuum Absorb | |||||||||
| Roller material | 50CrMo alloy, Heat treated | |||||||||
| Machine Size (mm) | 3300*1300*1700 | 3550*1300*1700 | 3800*1300*1700 | 4050*1300*1700 | ||||||
