Fiber Media Converter Single Mode to Multimode 1310nm to 850nm SFP to SFP Media Converter
Fiber Media Converter Single Mode to Multimode 1310nm to 850nm SFP to SFP Media Converter
Overview
Nufiber’s NF-T101 has two SFP interfaces. It can converts various fiber digital signals between SFP modules of different wavelength, distance, mode(single / multi-mode,UTP/ fiber) under the two same signal rate, including Ethernet, ATM, SDH and monitor signal. Such as the converter of 1310/1550nm, 1490/1550nm. It adopts high rate convert circuit and high quality IC chips, high stability and performance, can be widely used in all kinds of fiber digital transmission.
Key Features
1. Realize digital signal conversion between the SFP modules under two same signal rate, but different wavelength, distance and mode type.
2. Support 2~2.5Gbs Digital optical signal conversion
3. Fast speed, shorter delay, High efficiency
4. Includes two SFP ports
5. Protocal-independent operation
6. Converts between dissimilar fiber modes and Wavelengths
7. Includes diagnostic LEDs
8. Hot-swappable architecture Small and Wavelengths
9. Supports an external 5VDC power module
10.Extended temperature range from 0°C to 70 °C
11. Cam use all standard MSA compliant SFP devices
12. Provides Extensive Diagnostic LED function
Technical Parameter
| Interface | 2 SFP port |
| Transfer speed rate | 2~2.5Gbps |
| Power | External power supply AC100~240V/DC5V |
|
LED indicator
|
Power: power status |
| FX1Link, FX2 Link: SFP connection status indicator, easy to monitor working and bug diagnose. | |
| Environment Temp. | 0 °C to +70 °C |
| Storage Temp. | -20 °C to +80 °C |
| Humidity | 5% to 90% (non-condensing) |
| Dimensions | 26×71×93mm(H×W×D) |
Connection Diagram

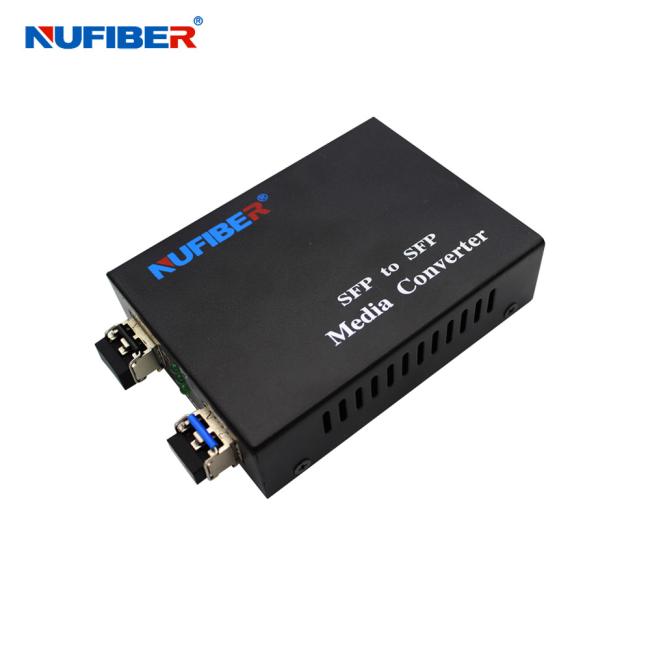

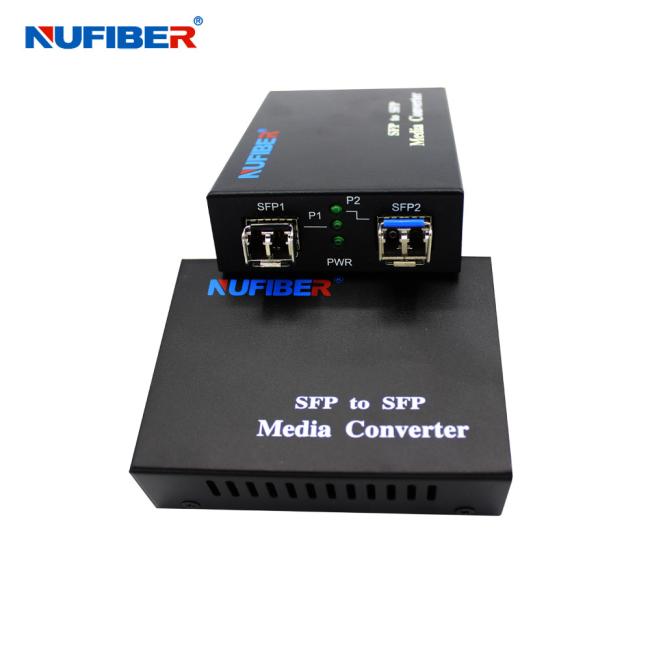

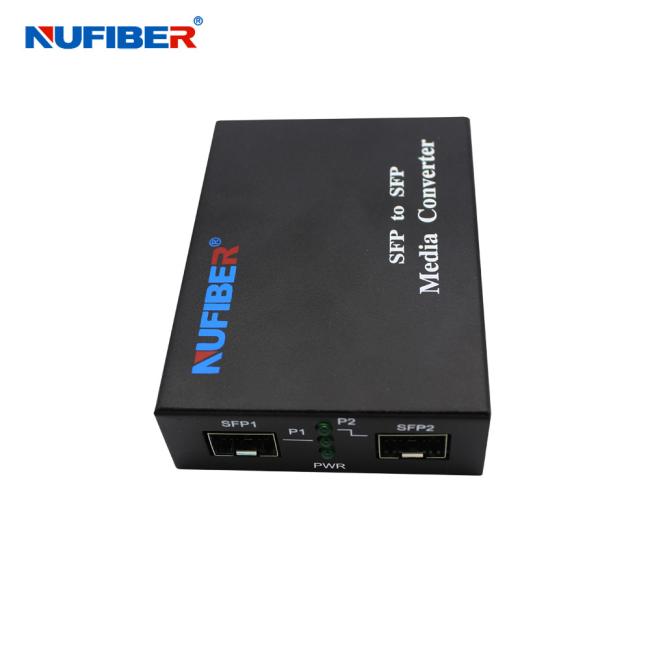

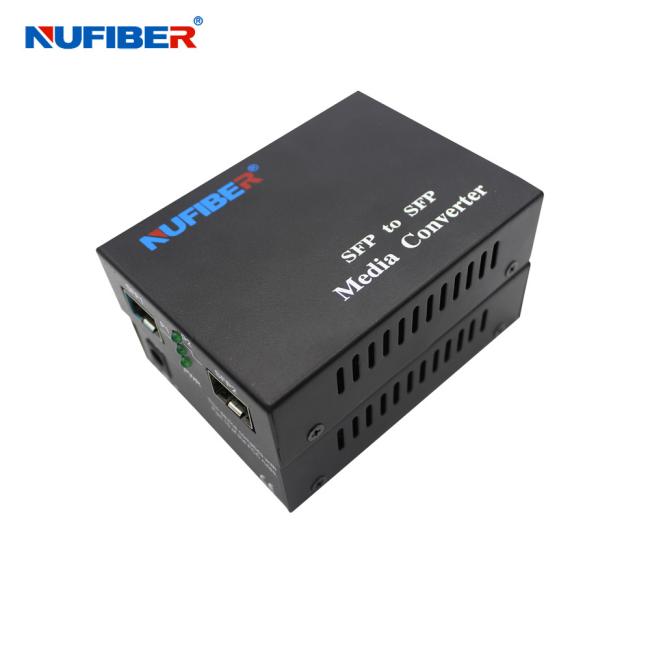

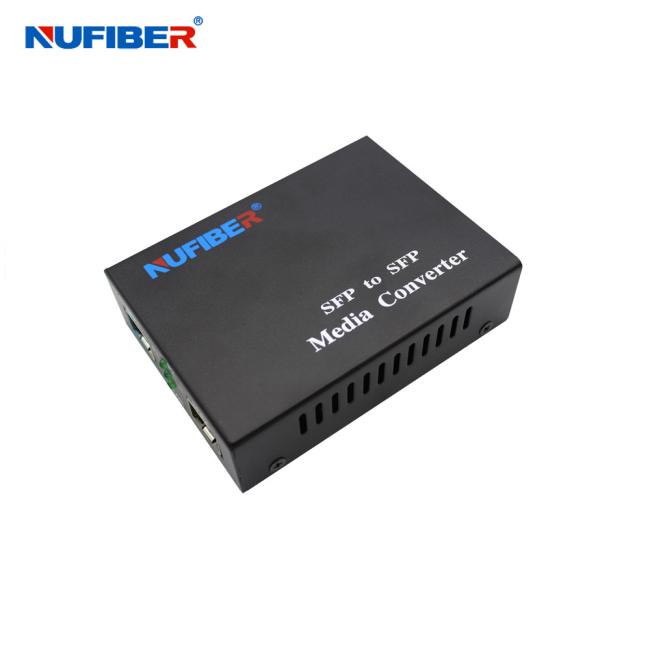

Products show
Packaging and shipping
