PP Pall Ring Plastic Random Packings 50MM Corrosion Resistant

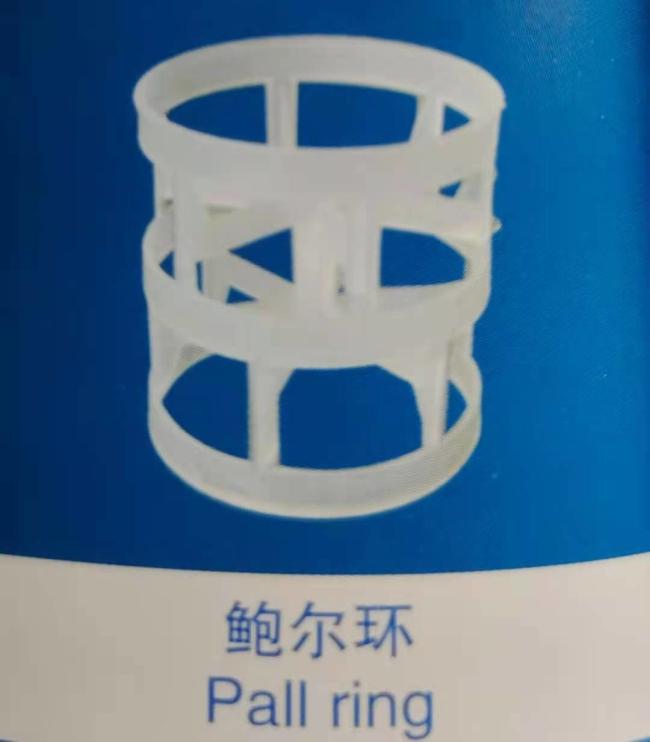

Pall ring
Pall ring packing is a kind of open ring packing with equal high diameter, each layer of window hole has 5 tongues, each tongue blade bends to the ring center, the position of the upper and lower two layers of window holes is opposite staggered, the general opening area accounts for about 30% of the total area of the ring wall. It has the characteristics of large voidage, low pressure drop and mass transfer unit height, high flooding point, full vapor-liquid contact, small specific gravity and high mass transfer efficiency.
Plastic tower packings are in the material of polyethylene(PE),polypropylene(PP), polypropyleneRPP) polyvinyl chloride
(PVC).chlorinated polyvinyl chloridCPVCand polyviny idone fluaride(PVDF), Thmy have a strong resistance to chamical corrasion, large void space and fuid capacty. low pressure drop, onerey saving.ow operation cost Ignt in weight and easy to be load and unload.and reusable. They are available for stripping.absorbing and washing in low temperature of 60-150 degree in tha tower in chemical petrochemical alkai chloride, cal gas and environmental protoction industries.
Plastic Random Packing indluding pall ring, Intalox saddles, Super intalox Cascade ring, Heilex nng Canugate ring. HCM fat ring. Tater
Rosetto, Hollow ball. Polyhedral ball, Cage ball and Cowering ball,HOR ring.
| Product name | Pall ring |
| Normal | 50MM |
| SIZE(diameter x height x thickness) | 50x50x1.5mm |
| Surface Area(m2) | 100 |
| Void Fraction | 92% |
| Bulk density(kg/m3) | 60 |
| No.elements | 6300per/m3 |
| Packing factor | 130m-1 |
| Item/Material | PE | PP | RPP | PVC | CPVC | PVDF |
| Density g/cm3 | 0.94-0.96 | 0.89-0.91 | 0.92-0.94 | 1.32-1.44 | 1.50-1.54 | 1.75-1.78 |
| Working temperature, °C | ≤90 | ≤100 | ≤120 | ≤60 | ≤90 | ≤150 |
| Chemical resistance | Corrosion resistance | Corrosion resistance | Corrosion resistance | Corrosion resistance | Corrosion resistance | Corrosion resistance |
| Crushing strength, N/mm | ≥6.0 | ≥6.5 | ≥7.0 | ≥6.0 | ≥8.0 | ≥10.0 |
A: If you need to order sample for checking-up, we will arrange your sample after receipt of your payment and detail shipping information. Normally sample can be ready in 2-3 days, and shipping time within 3-7 days by express.
2. Q: How much the Courier freight will be for the samples?
A: Courier freight depends on weight and carton size, destinations and other relating factors.We will give you a quotation after you tell us the address.
3. Q: How can I get your price list?
A: Please leave your contact way such as Email/Whatsapp/ Inquiry to us. We will contact you and send our quotation sheet to you as soon as possible within 12 hours.
