38MM Plastic Saddle Packing CPVC Super Intalox Saddless

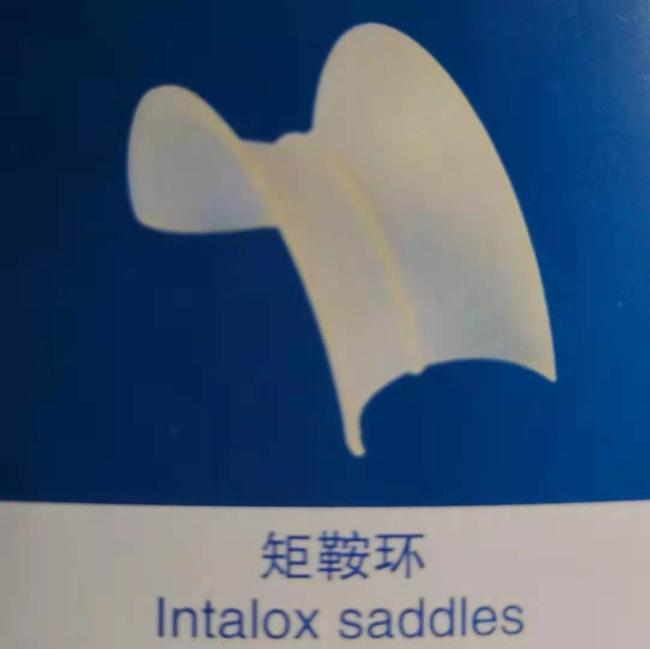

Intalox Saddles
The shape of plastic saddle ring filler is between ring and saddle, so it has the advantages of both. This structure is beneficial to the liquid distribution and increase the gas passage, and compared with pall ring, the resistance is small, the flux is large, and the efficiency is high. Packing strength and rigidity is good, is currently the most widely used one kind of bulk packing.
Plastic tower packings are in the material of polyethylene(PE),palypropylene(PP), polypropyleneRPP) polyvinyl chloride
(PVC).chlorinated polyvinyl chloridCPVCand polyviny idone fluaride(PVDF), They have a strong resistance to chamical corrasion, large void space and fuid capacty. low pressure drop, onerey saving.ow operation cost Ignt in weight and easy to be load and unload.and reusable. They are available for stripping.absorbing and washing in low temperature of 60-150 degree in tha tower in chemical petrochemical alkai chloride, cal gas and environmental protoction industries.
Plastic Random Packing indluding pall ring, Intalox saddles, Super intalox Cascade ring, Heilex nng Canugate ring. HCM fat ring. Tater
Rosetto, Hollow ball. Polyhedral ball, Cage ball and Cowering ball,HOR ring.
| Product name | Intalox Saddles |
| Normal | 38MM |
| SIZE(diameter x height x thickness) | 38x19x1.2mm |
| Surface Area(m2) | 265 |
| Void Fraction | 95% |
| Bulk density(kg/m3) | 91 |
| No.elements | 25200per/m3 |
| Packing factor | 309m-1 |
| Item/Material | PE | PP | RPP | PVC | CPVC | PVDF |
| Density g/cm3 | 0.94-0.96 | 0.89-0.91 | 0.92-0.94 | 1.32-1.44 | 1.50-1.54 | 1.75-1.78 |
| Working temperature, °C | ≤90 | ≤100 | ≤120 | ≤60 | ≤90 | ≤150 |
| Chemical resistance | Corrosion resistance | Corrosion resistance | Corrosion resistance | Corrosion resistance | Corrosion resistance | Corrosion resistance |
| Crushing strength, N/mm | ≥6.0 | ≥6.5 | ≥7.0 | ≥6.0 | ≥8.0 | ≥10.0 |
