16mm Metal Random Packing Pall Ring Heat Resistant
Pall Ring

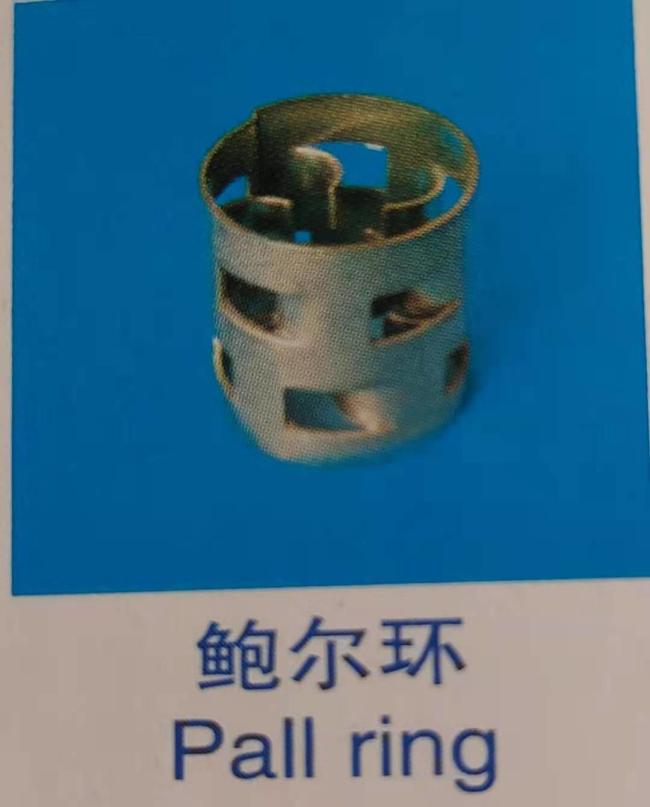

The pall ring is made of metal sheet and has two rows of window holes with internal protruding blades on the ring wall. Each row of window holes has five tongue lobes, each tongue leaf curved to the ring, pointing to the ring center, almost overlap in the center, the position of the upper and lower window holes staggered each other, the total area of the hole is about 35% of the entire ring wall area.
The material of metallic random packing including carbon steel and stainless steel,due to its thin wall, high void and capacity, low fluid resistance,and heat& corrosion resistance,it is very suitable for the process of the heat sensitivity,easy decomposing,easy polymerzation and easy carbonization in the vacuum rectifying towers.
The Metalic random packing including Conjugated ring, VSP ring Intalox saddles; Twin curved saddles, HQM flat ring, Cascade ring and Pall ring.
| Product name | Pall Ring |
| Normal | 16mm |
| SIZE(diameter x height x thickness) | 16x16x0.4mm |
| Surface Area(m2) | 362 |
| Void Fraction | 95% |
| Bulk density(kg/m3) | 396 |
| No.elements | 214000per/m3 |
| Max.F-factor m/s.(kg/m3)0.5 | 423 |
A: If you need to order sample for checking-up, we will arrange your sample after receipt of your payment and detail shipping information. Normally sample can be ready in 2-3 days, and shipping time within 3-7 days by express.
2. Q: How much the Courier freight will be for the samples?
A: Courier freight depends on weight and carton size, destinations and other relating factors.We will give you a quotation after you tell us the address.
3. Q: How can I get your price list?
A: Please leave your contact way such as Email/Whatsapp/ Inquiry to us. We will contact you and send our quotation sheet to you as soon as possible within 12 hours.
