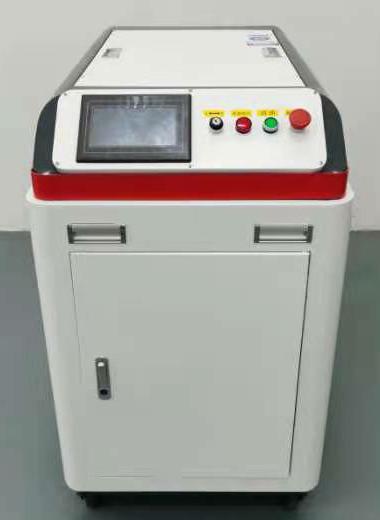

White 190KG Fiber Laser Cleaning Machine 50mj 100mj Fiber Laser Rust Removal
500 W Single&Twin Axles Cleaning Machine Introduction:
The laser cleaning machine is a high-tech product of the new generation of surface cleaning. It has the advantages of easy control, easy automation integration, no chemical reagents, conformable surface cleaning, high cleaning cleanliness and high precision. It is highly efficient, environmentally friendly, reliable, and almost no damage. It also can solve a variety of problems that traditional cleaning cannot solve.
Laser Cleaning Machine Specification:
| Average Power | 500W |
| Single Pulse Energy | 25 mj or 50 mj or 100 mj |
| Scanning Width | 5mm~120mm Grading Adjustable |
| Weight of Cleaning Head |
Single Axle1.6KG(Not Including QBH) Twin Axles 1.8KG(Not Including QBH) |
| Peak Power | 1MW |
| Cleaning Rust(100 µm) |
3 m³/h
|
| Cleaning Paint(120 µm) | 5 m³/h |
| Size | L*W*H : 1055*620*950 mm |
| Weight | 190KG water cooling |
Laser Cleaning Machine Features:
1.Powerful, short pulses, fast moving laser pulses act on the surface of the target, producing tiny plasma ruptures, shock waves, thermal stress, etc., causing surface materials to sublimate and evaporate.
2.The focused laser beam is capable of accurately evaporating surface objects or dirt.
3.Fiber Laser cleaning is suitable for metal surfaces. The treated and optimized laser beam does not alter metal properties or damage those laser treated surfaces. The precisely tuned laser beam acts only on the coating, residual residue or oxide, and does not harm the underlying parent metal surface.
4.By adjusting other parameters, the laser beam is able to achieve the desired cleaning effect accurately and easily.

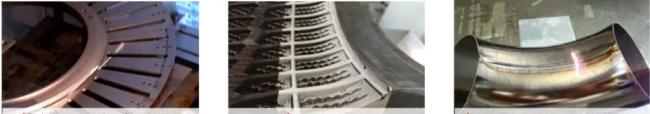

Applicable Industry:
Metalsurface rust removal, Surfacepaint removal and paint treatment, Surfaceoil, stains, dirt cleaning, Surfacecoating, clear coating, Weldingsurface / spray surface pretreatment, Stonesurface dust and attachment removal, Rubbermold residue cleaning
Functions :
