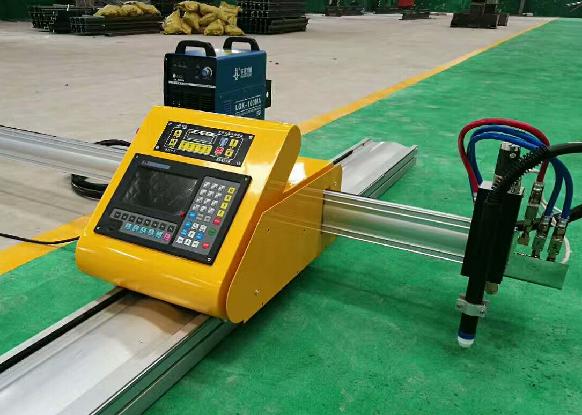

120 A Portable 1500*3000mm CNC Plasma Cutting Machine
120A Portable 1500*3000mm CNC Plasma Cutting Machine
Product Description:
1.Having a lightweight, easy to set up, portable plasma cutter is essential for anyone working with metal. Getting one at a great price is also essential, which is where Welders Supply comes in.
2.The portable plasma cutters we carry are designed to be as light as possible, but with enough power to cut through almost any metal. Their compact design makes them perfect for workers who are on the go, and a handy carrying handle makes for easy transport around the job site or between locations. While they pack as much punch as other plasma cutters, they don’t hog up space in your shop.
Flame portable Plasma Cutting Machine features:
1.The beam used light structural design,with good rigidity structure,light deadweight
2.The gantry structure,Y axis used dual-motor dual-driven system,X,Y,Z axis all use dual-straight rail that make the machine driving smoothly with high-precision.
3.Aiming at cutting three dimension LED character,through metal panels and floor cutting,the accuracy can reach good indicators.If it equipped with United States HYPERTHERM plasma source the machine can reach threshold.
4.Equipped with other advertise equipment(blister/engraving machine).Improve the efficiency of several times.

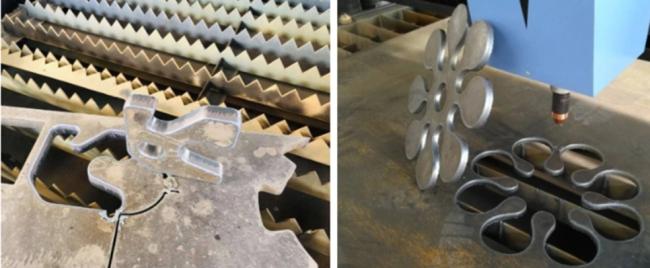

5.Cutting mouth is small,tidy,and avoid a second dressing processing.
6.It can apply to iron sheet,the aluminium sheet,the galvanized sheet,hundred steel plates,metal plates.
7.The numerical control system disposes high,the automatic striking arc,the performance is stable
8.Support Wentai,Astronautics Haire,ARTCAM softwares,Tyre3 produce standard G code way document,also can change software to read AUTOCAD softwares produce DXF form documents.
CNC Plasma Cutting Machine Technology Parameter:
| Crossbeam Length | 2230mm |
| Trail Length | 3500mm |
| Effective Cutting Width | 1500mm |
| Effective Cutting Length | 3000mm |
| Layout | Horizontal,Vertical |
| Flame Cutting Gun | 1 group |
| Plasma Cutting Function | Yes |
| Flame Cutting Speed | «1500mm-only for carbon steel |
| Flame Cutting Thickness | «200mm |
| Line Drawing Accuracy | 0.1mm |
| Moving Accuracy | 0.001 |
| Cutting Thickness | 25mm |
| Source Power | 120 A |
| Resource | 220V/110V 50HZ 200W |
| Software | Artcut/6 Caxa/ Autocard |
| Tranmission Mode | USB |
| Cutting Gas | Acetylene, Propane, Liquefied gas,Gas |
| Gap Compensation | Automatic |
| Plasma Interference | No disturb |
Applicable Industry:
This portable CNC plasma cutting machine is designed to be used with a wide variety of cutting applications,including chopping,mincing,carving,slicing,peeling,cleaning,polishing,gardening and more.It is a must have for any kitchen,home,office,restaurant,hotel,job site or home office
Functions :
