120A 25mm Carbon Steel Hand CNC Plasma Cutting Machine
120A 25mm Carbon Steel Hand CNC Plasma Cutting Machine
Product Description:
1.Easy to assemble.Due to its compact size,installation of the scout 2 is easier than ever.Assembly and setup of all components do not require any special measuring tools.Prior to shipping,the Scout 2 is pre-adjusted our factory. Once you are ready,simply slide all components together and connect cables.

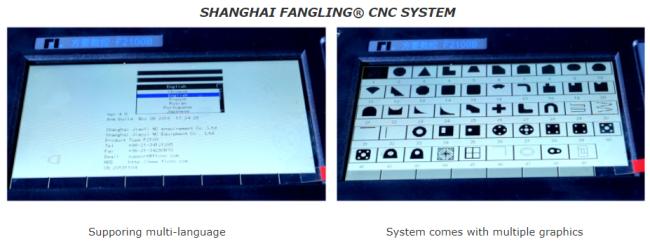

2.Easy to operation. The machine is easy to program and nest material.It can be used to manually program simple graphics or to auomatically program any complex graphics through the fastcam software provided with machine
120A Carbon Steel Hand Plasma Cutting Machine features:
1.Fastcam® Software for Plate Shape Cutting with integrated 2D drawing, tool pathing, true shape nesting, code verification & NC generation.
2.It is far less complex than other systems. Easy Editing & Verification of geometry combined with one step nesting makes the system instantly productive.
3.Extremely Powerful CAD interface that cleans and compresses code ready for quality cutting.
4.FastCAM® Reads and/or Nests DXF, DWG, DSTV/NC1, StruCAD, IGES and PDF file formats.

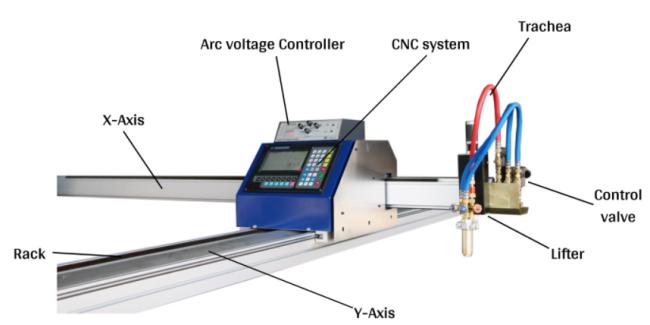

CNC Plasma Cutting Machine Technology Parameter:
| Crossbeam Length | 2230mm |
| Trail Length | 6500mm |
| Effective Cutting Width | 1500mm |
| Effective Cutting Length | 6000mm |
| Layout | Horizontal,Vertical |
| Flame Cutting Gun | 1 group |
| Plasma Cutting Function | Yes |
| Flame Cutting Speed | «1500mm-only for carbon steel |
| Flame Cutting Thickness | «200mm |
| Line Drawing Accuracy | 0.1mm |
| Moving Accuracy | 0.001 |
| Cutting Thickness | 12mm |
| Source Power | 120 A |
| Resource | 220V/110V 50HZ 200W HUAYUAN&HYPERTHERM |
| Software | Artcut/6 Caxa/ Autocard |
| Tranmission Mode | USB |
| Cutting Gas | Acetylene, Propane, Liquefied gas,Gas |
| Gap Compensation | Automatic |
| Plasma Interference | No disturb |
Applicable Industry:

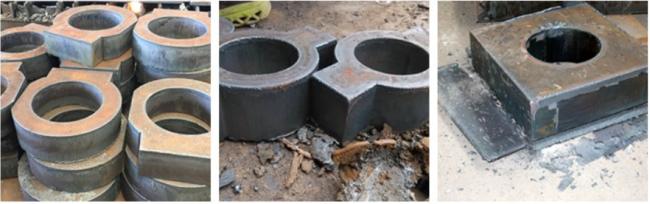

Carbon steel, stainless steel, aluminum,copper, other non-ferrous metals.
Functions :
