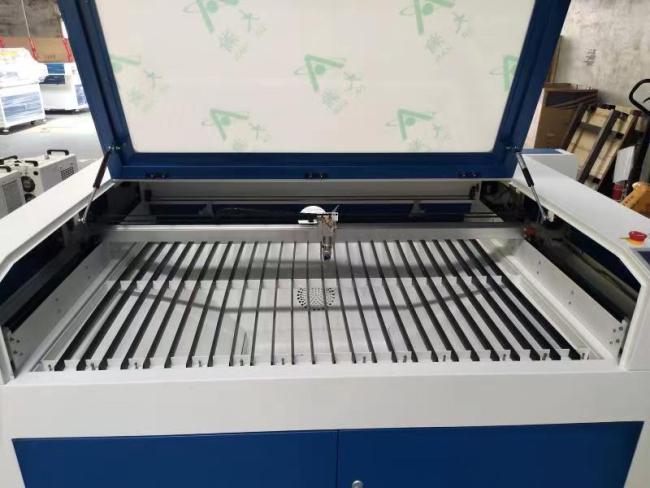

Plywood 10.6um Co2 Laser Cutting Engraving Machine 1400mmx900mm
Plywood 1400mm*900mm CO2 Laser Cutting Machine Factory:
1400mm*900mm 60W-300W CO2 Laser Cutting Machine Supplier Introduction:
This CO2 laser engraving machine as an engraving machine features advanced co2 laser technology, which can be a general-purpose model, with a rear focusing mode, small size, and high integration. In addition, it makes laser beam transmitted and focused on the surface of the material through the optical mechanism, and the material of the high energy density laser beam action point rapidly vaporizes to form pit points. Equipped with a computer-controlled XY console, our CO2 laser engraving machine realizes the function to drive the laser head and control the laser switch as required, the image information processed by the software has been stored in the computer in some way.
60W-300W low price CO2 Laser Cutting Machine Supplier Features:
This CO2 laser machine as an engraving machine features advanced co2 laser technology, which can be a general-purpose model, with a rear focusing mode, small size, and high integration. In addition, it makes laser beam transmitted and focused on the surface of the material through the optical mechanism, and the material of the high energy density laser beam action point rapidly vaporizes to form pit points. Equipped with a computer-controlled XY console, our CO2 laser engraving machine realizes the function to drive the laser head and control the laser switch as required, the image information processed by the software has been stored in the computer in some way.
| Model | RG-1490 |
| Woring Area | 1400mmx900mm |
| Laser Type | Sealed CO2 gless laser tube wavelength 10.6um |
| Laer power | 60W-300W |
| Cooling Mode | Pure circulating water cooling |
| Control System | DSP offline control system,laser power software 0-100% adjustable |
| Max engraving speed | 0-60m/min |
| Max cutting speed | 0-30m/min |
| Repositioning accuracy | ≤0.01mm |
| Min letter | Chinese 2.0x2.0mm English 1.0x1.0mm |
| Working voltage | 220V/110V,50HZ/60HZ |
| Woring condition | Temperature:0-45°C,humidity:5%-95% |
CO2 Engraving Laser Cutting Machine Factory Application:
Application Industry: Model Field(Construction Model,Aviation navigation model, wooden toys), advertising filed,decorative and decorating, craft gift industry, electronic, garments and leather industry, art glass industry, art glass industry,computerized embroidery and clipping, packaging and paper industry.
Main Cutting Materials: Acrylic, density board(MDF), double-color board, paper, plastic, rubber, cloth, wool, crystal, bamboo products, wooden products, etc
Materials Can work With: Organic glass, acrylic board (the paulownia, lightwood), bamboo products, Double-color board, paper, leather, ceramics, textiles, crystal, jade, coconut shells, horn, resin animal sebum, ABS plate, lamp shade and other non-metallic materials.
Cutting Samples:
