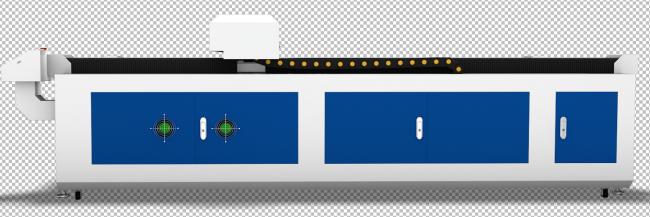

1600mmx1000mm CO2 Laser Tube Cutting Machine Supplier
1600mmx1000mm CO2 Laser Tube Cutting Machine Supplier
CO2 Laser Tube Cutting Machine Supplier Introduction:
This model laser engraver cutter machine is based on various types of customer requirements, combined with our many years of equipment production experience, the use of a variety of advanced technology and special design, to achieve the perfect unity of the two functions of sculpture and cutting.
The co2 laser engraving cutting machine runs fast with simple operation and low cost; Theengraving effect is good, no burr on the cutting edge, no secondary grinding, less cutting waste, carving depth of the best laser engraving machines can be adjusted independently and with high precision.
CO2 Laser Cutting Machine Factroy Features:
1. Application of gantry structure and cross table to achieve higher rigidity, stability, shock resistance.
2. PA system(Germany), die-follow sytem, automatic adjust the cutting width.
3. High-performance laser source and stable operating system which make the best cutting effect.
4. The machine owns perfect cooling system, lubrication system and dust removal system, to ensure that it can operate stably, efficiently and durably.
5. The machine is capable of automatic height adjustment to maintain constant focal length and stable cutting quality.
6. The machine is used for cutting plywood with excellent and stable cutting quality.
7. The specialized CAD / CAM automatic programming software and automatic nesting software aim to maximally save raw materials.
| Model | RG- 1610 |
| Woring Area | 1600mmx1000mm |
| Laser Type | Sealed CO2 gless laser tube wavelength 10.6um |
| Laer power | 60W-300W |
| Cooling Mode | Pure circulating water cooling |
| Control System | DSP offline control system,laser power software 0-100% adjustable |
| Max engraving speed | 0-60m/min |
| Max cutting speed | 0-30m/min |
| Repositioning accuracy | ≤0.01mm |
| Min letter | Chinese 2.0x2.0mm English 1.0x1.0mm |
| Working voltage | 220V/110V,50HZ/60HZ |
| Woring condition | Temperature:0-45°C,humidity:5%-95% |
CO2 Laser Cutting Machine Application:
1. Garment materials: textile carving, leather carving and cutting, cloth carving, shoe carving, fabric carving,denim carving, toy cutting, wool cutting,carpet carving and cutting, denim carving and cutting.
2. Advertising material: such as plastic engraving and cutting, acrylic engraving and cutting,PVC plate engraving and cutting, rubber plate engraving, organic glass engraving, seal engraving,organic glass engraving, granite carving, plastic engraving,marble engraving, Paper carving and cutting,EVA material carving.
3. Wood materials: MDF carving,wood carving and cutting, plywood cutting.

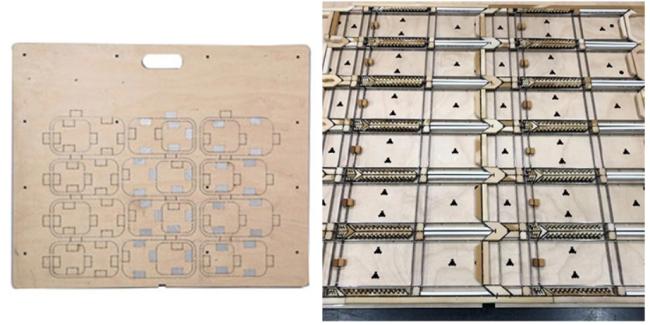

Cutting samples:
