NC Studio Acrylic Letter Cutting Machine With ATC
Acrylic Letter Cutting Machine with ATC
Regiant Acrylic Letter CNC Machine
1. Thick steel pipe welded lathe bed,special heat-treatment ensures minimum distortion,excellent rigidity and vigorous strength
2. High precision TBI Gridding Grade ball screw transmission and Japan YSKAWA servo system ensures high accuracy
3. 5.5KW water cooling spindle,imported tool shank ensures performance
4. Original NC Studio control system with hand wheel,convenient for positioning operation
5. Sprayer lubrication system and automatic lubrication system optional
Technology Parameters:
| Model | RG-AR 1212/RG-AR 1325 |
| Working Area(X*Y*Z) |
1200X1200X150mm/1300X2500X200mm |
| X/Y Feeding Speed | 30000mm/min |
| Z Feeding Speed | 15000mm/min |
| Transmission System | TAIWAN TBI Gridding Grade Ball Screw |
| Control System | NC Strudio |
| Spindle Motor | 5.5KW Water cooling Spindle |
| Spindle Speed | 24000rpm |
| Driving system | Japan YASKAWA Servo System |
| Fixing Method | Double layer Vacuum Absorption System |
| Tool Magazine and Tools No. | Cirlular tool Magazine,8 tools |
| Weight | 1750KGS |
| Working Voltage | AC380V/3PH/50HZ |
CNC Acrylic Feature:

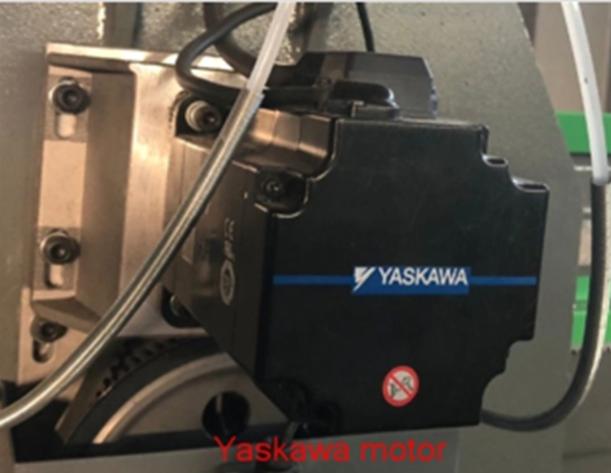

Japan Yaskawa servo motor and driver for X, Y and Z axis, with high power and high speed.

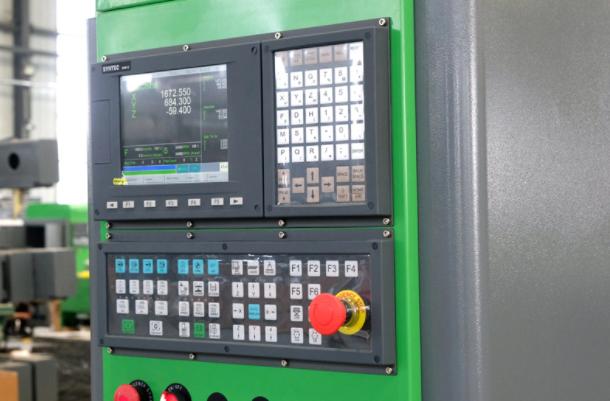

Woodworking machine adopt Syntec controller 60W-E, it support 3 axis /4 axis /5 axis /6axis /8axis cnc router machine. And the Syntec system can work online and WiFi links, greatly increasing the intelligence
of the device.

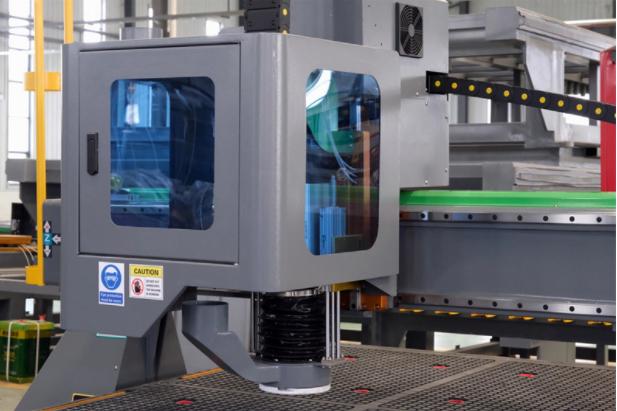

Italy HSD 9.6kw air cooling automatic tool changer spindle, with 24000 rpm. Italy spindle enjoy internation warranty service
Application:

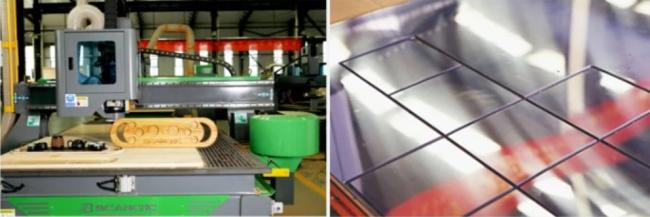

Advertising Industry: Billboard, signage, badges, logo, company plate, signs, emblem, badge, display panels, fair signs, building numbers, signs of decoration, literal hole cutting etc.; 3D character cutting, acrylic cutting, LED/neon channel, light-box; Electronic Industry: Circuit board; Insulation material.
Function:
