3.6KW SS304 Cup Filling Sealing Machine For 2 Cups Water Cup 1800B/H
Price:
Negotiable
MOQ:
1
Delivery Time:
10-20 days
Brand:
Fair Machinery
Product Description
Product description:
This machine is suitable for filling and sealing food, beverage, Pearl milk tea, coffee,juice etc.. Machine production process: Automatic lower cup, automatic filling, automatic capping, automatic sealing, automatic cupping; adopting imported stepless speed changing system, adopting cam indexing device to make the lower film positioning accurately, the machine runs smoothly; the cover and the sealing are completed at the same time The lower film movement has no influence on the positioning accuracy of the cover film; the accurate secondary sealing and sealing pressure can be adjusted, the sealing strength is good; the operation is simple and safe.
Technical parameters:
| Model | FBG-20A |
| Power (KW) | 4 KW |
| Heat sealing power | 3.6 KW |
| Capping speed (BPH) | 1800 B/Hour |
| Power supply (VAC) | 380V 220V 50/60HZ |
| Dimensions (MM) | 2500x750x1700 |
| Net weight (KG) | 950 |

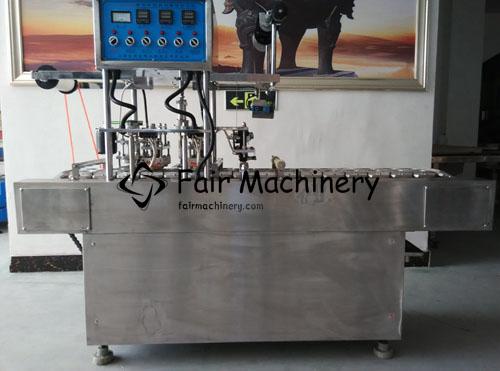

Front view:

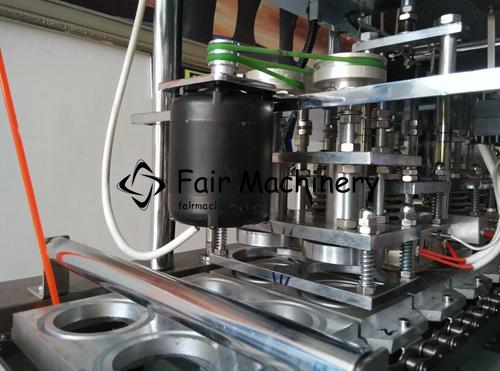

Cut film structure:

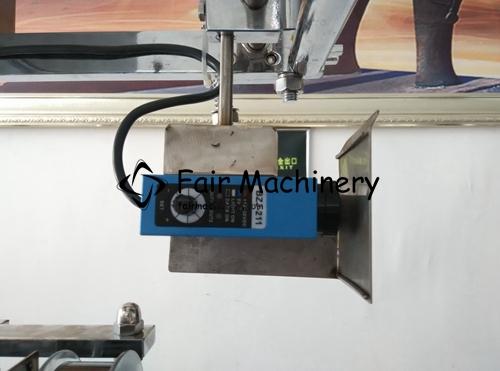

Electric eye detection structure:
This structure enables the pattern of the upper film to be accurately aligned with the package.

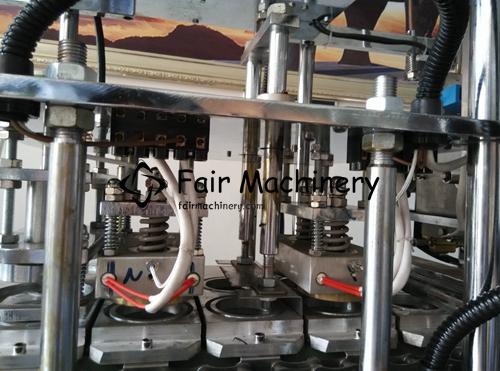

Sealing structure:

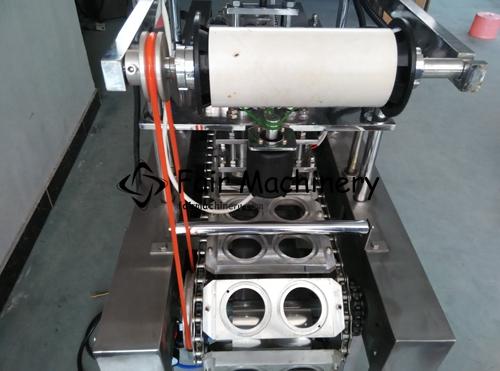

Residual material recovery structure:

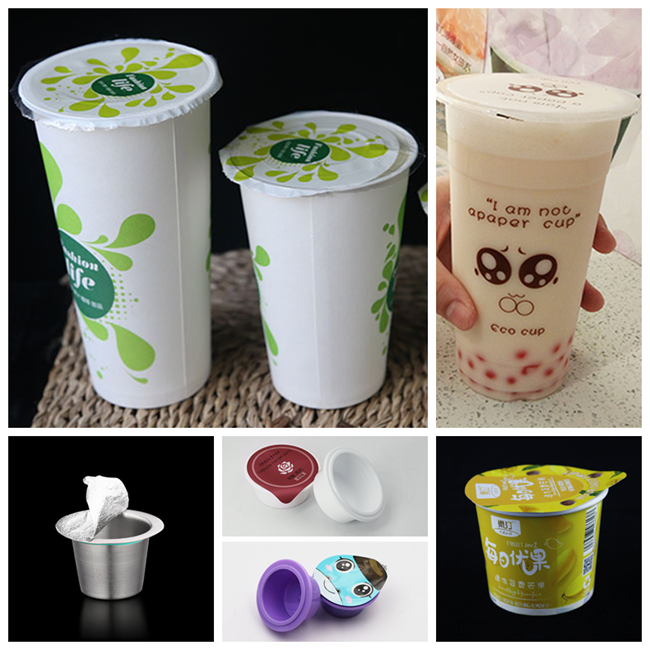

Cup picture:
