8KW SS316 Cup Filling Sealing Machine 6 Cups For Granule 5400B/H
Price:
Negotiable
MOQ:
1
Delivery Time:
10-20 days
Brand:
Fair Machinery
Product Description
granule cup Automatic filling and sealing machine of 6 cups machine
Product description:
The machine is mainly used for filling and capping the particles of cups, boxes, bowls, etc., and can also be used for the capping of other shaped boxes. Machine production process: Automatic lower cup, automatic filling, automatic capping, automatic sealing, automatic cupping; adopting imported stepless speed changing system, adopting cam indexing device to make the lower film positioning accurately, the machine runs smoothly; the cover and the sealing are completed at the same time The lower film movement has no influence on the positioning accuracy of the cover film; the accurate secondary sealing and sealing pressure can be adjusted, the sealing strength is good; the operation is simple and safe.
Technical parameters:
| Model | FBG-60 |
| Power (KW) | 8 KW |
| Heat sealing power | 6.5 KW |
| Capping speed (BPH) | 5400 B/Hour |
| Power supply (VAC) | 380V 220V 50/60HZ |
| Dimensions (MM) | 4000x950x1700 |
| Net weight (KG) | 800 |

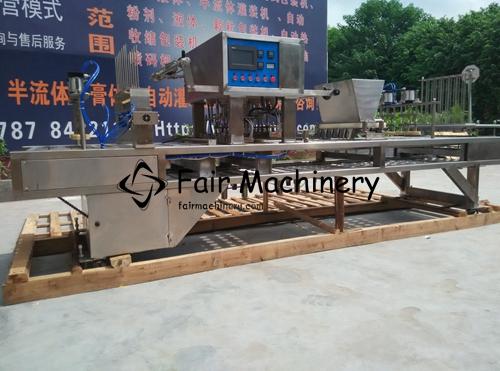

Front view:

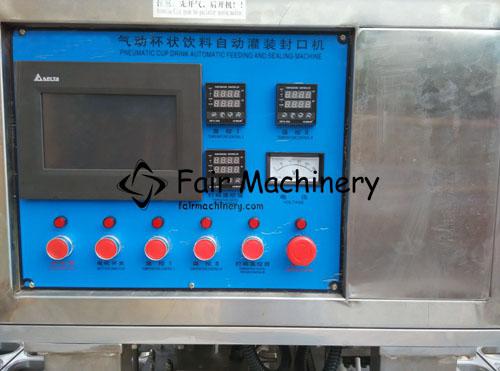

Control panel:

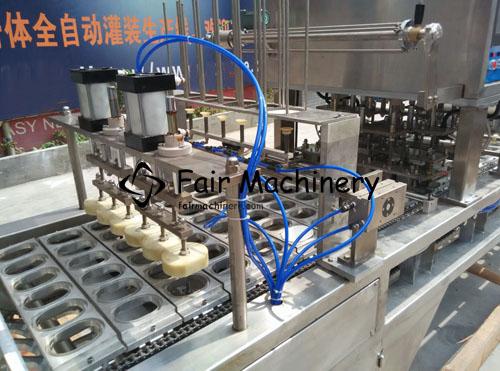

Automatic lower cup structure:

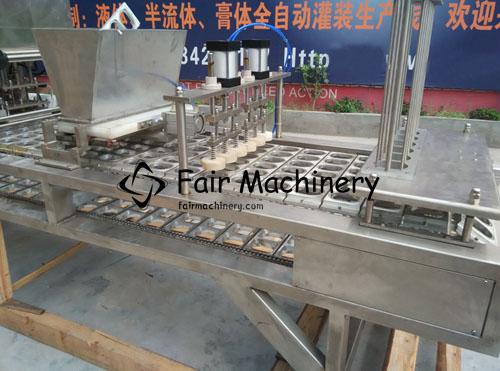

Pellet filling structure:

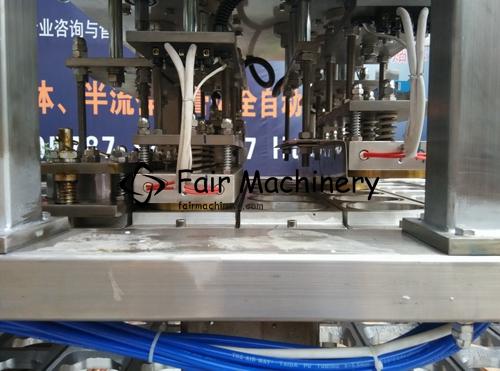

Sealing structure:

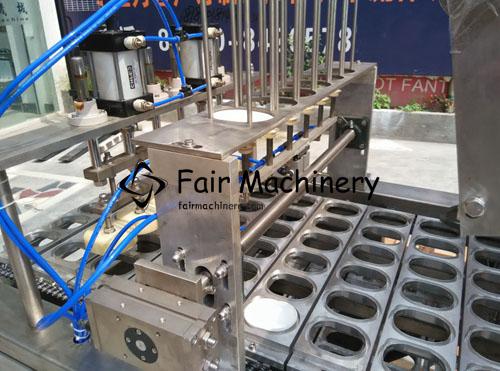

Automatic lower cover and gland structure:
Cup picture for reference:
