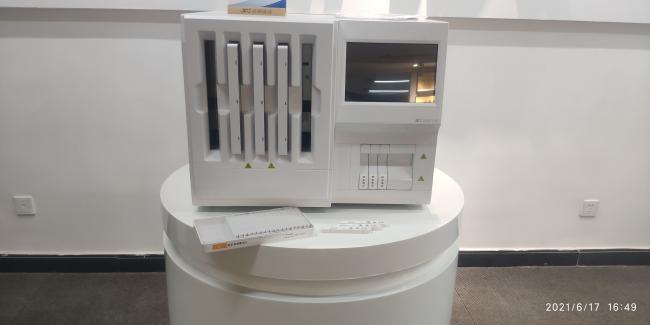

5Ch Homogeneous Fluorescence Analyzer

4-8minutes Immunofluorescence POCT Analyzer 5 Channels Rapid Pregnancy Test

Advantages:

Short detection time

The HFIAS Series adopts dynamic monitoring fluorescence signal technology. By collecting fluorescence values at
different times, it realizes the rapid diagnosis of high-risk patients and gains more treatment time for the disease.
For example, it can get the test results within 4 minutes for cTnl detection (dry immunofluorescence
chromatography takes more than 15 minutes), that help patients with myocardial infarction get the fastest
treatment.

High sensitivity
The HFIAS Series adopts high-sensitivity fluorescent substances, homogeneous immune response and dynamic
monitoring technology, which greatly improves the detection sensitivity. For example, in about 4 minutes, the
sensitivity of cTnl (Cardiac troponin I) can reach 1.6ng/m.

High precision
The HFIAS Series adopts a homogeneous immune reaction technology similar to biochemical reactions and
chemiluminescence. Compared with the precision of traditional fluorescence chromatography of 10% to 20%, the
precision of HFIAS Series can be controlled at 5 % to10%.

Integrated strip design
The strip integrates the sample compartment, immune response compartment, detection window, and TIP
compartment into one reagent strip, which is convenient for users to operate and can avoid direct contact between
users and samples.
At the same time, for rapid testing in outpatient clinics, a micro blood collection tube and TIP are integrated to
simplify fingertip blood detection steps.

Quality control and calibration
Equipped with quality control and calibration system to ensure the accuracy of test results and the standardization
of the laboratory.

Main features:

1. Full automatic, no liquid path, easy to operate and reliable;

2. one-person kit, no cross-infection;

3. Quality control and calibration module, guarantee the accuracy and the stability of the results;

4. Sample types: Serum, Plasma, Whole blood, Urine, etc.

5. Maximum test speed: 60 tests/ hour;

6. 5 tests at the same time;

7. Maximum loading of samples: 125 pcs;

8. Test time: 4 to 8 minutes(different tests, the time would be different.
