3.5 Inch LCD Immunofluorescence Analyzer
Price:
$300-500
MOQ:
1 set
Delivery Time:
5-10 days
Brand:
Diacegene
Product Description
Touch Screen semi auto Analyzer Immunofluorescence Quantitative Analyzer
Product description
Product Classification
The product is classified according to the classification catalogue
of medical devices issued by the State Food and drug
administration, and belongs to the clinical test device
(classification No.: 22-04-03), and the management category is
class II.
Instrument Model Description

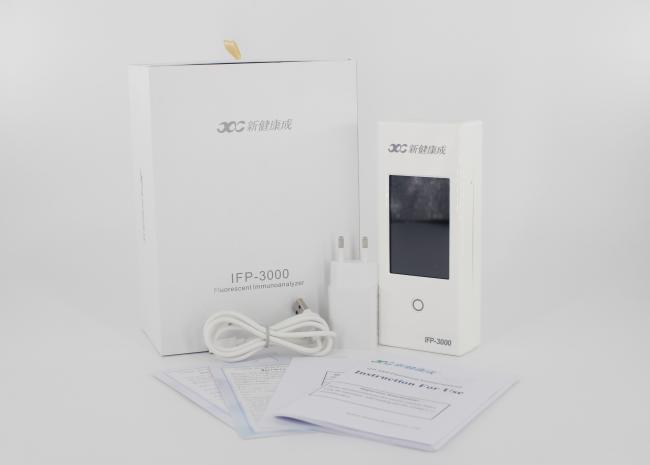

The model of Fluorescent Immunoanalyzer is IFP-3000,
I:Immunoassay ,F:Fluorescent ,P:POCT(point of care
testing)
Brief introduction of the instrument
IFP-3000 is a small Fluorescent Immunoanalyzer , which is used
to analyze the concentrations of various analytes in human
samples quickly and quantitatively.
Application Scope
Based on the principle of antigen antibody reaction and
Fluorescent Immunoanalyzer, the product is used in combination
with the matching reagent produced by our company for the
quantitative analysis of the substance to be tested in human
samples. It is only for medical laboratory personnel of medical
institutions to conduct in vitro diagnostic tests.It can be applied
to central laboratory, outpatient / emergency laboratory, clinical
department and other medical service center (such as community
medical center), physical examination center, etc. of medical
institutions, as well as scientific research laboratory.
Working principle
The detected substance in the test sample forms immune
complex with the fluorescent labeled antibody, and solidifies in
the detection area and the quality control area respectively
through the capillary surge process. When the reagent card is
- 15 -- 16 -
inserted into the Fluorescent Immunoanalyzer detector, the LED
excitation light source irradiates the detection area and quality
control area of the reagent card, excites the solidified fluorescent
immune complex, and the emitted light is collected and
converted into an electrical signal. The strength of the electrical
signal is strictly related to the number of fluorescent molecules.
The detector automatically calculates the content of the detected
substance in the test sample according to the scanned signal.
| Dimension | 168mm*70mm*44mm |
| Weight | 0.3Kg |
| Method | Immunoflurescent chromatography assay |
| Screen | 3.5 inch LCD |
| Power Supply | Built-in battery, 110-240V to 50/60 Hz |
| Data Storage | 1000 results |
| Data Trasmission | USB/ WIFI |
