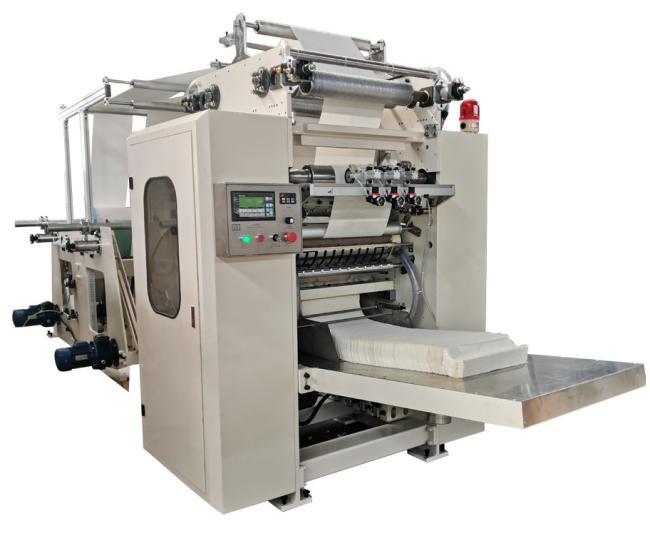

35kw Frequency Converter Paper Towel Making Machine
XY-BT-288 Automatic V Fold Embossing
Color Printing Hand Towel Paper Making Machine
Outline
This machine is used for embossing and cutting off the towel paper. The folding of products is “V” type folding and you can draw it one by one. This kind of towel paper is used widely in hotel, office and kitchen etc, which is convenient and sanitation. We adopt original creation full vacuum absorption technology, the adaptability of raw material is so strong. This machine is for folding, slitting and counting with high speed and output orderliness.
Video Link: https://youtu.be/rStsE_mF10Q
Feature and Functions
1. Production speed: (60~100)m/min

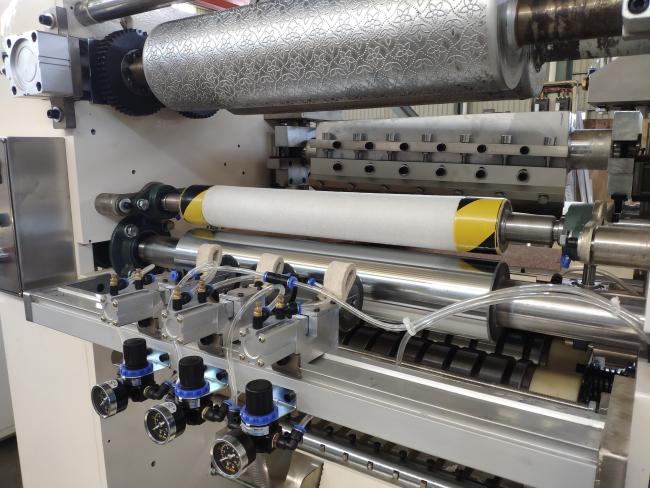

2. Embossing unit: Steel to steel embossing unit.
3. Pneumatic broken paper automatic separation, convenient wear paper.
4. Using synchronous belt transmission, transmission ratio is accurate, low noise.
5. Base paper adapt range, 33-45g/m2 (single ply)
6. To be order two layers glue lamination.(Optional)
Product Parameters
| Unfolding size (L*W) | 230*230±2mm (Other sizes are available) | ||
| Folded size (L*W) | 76.6*230mm±2mm (Other sizes are available) | ||
| Width of jumbo roll paper | 460-1380mm | ||
| Inner diameter of paper core | 76.2mm | ||
| Production speed | 100m/min | ||
| Counter | Ink marked | ||
| Embossing unit | Steel to steel | ||
| Total power | 11-45KW 380V 50HZ | ||
| Overall dimension | Depend on machine model | ||
| Weight | Depend on the size and configure | ||
| Remark | This machine can be customized to work with one set of glue lamination system | ||
Detailed Pictures
Related Machines
After Sales Service
Why choose machines from Fujian Xinyun Machinery Development Co.,Ltd?
1.Good quality of machine with reasonable price.
2.Good service:Any question from customer will by replied within 24 hours.
For all the machines we sell, we will offer one-year guaranteen for free and all life-long maintenance.
We deliver a USB dish of Operation Video with machine, it will help customers to work the machine easily.
After the machines arrive, the sellers shall send technicians to install the production line(if need).
And the buyer shall pay their round-trip air tickets from China factory to buyer's factory, the charge of visa, food, transportation and accommodation in buyer's city.
Company Profile
Fujian Xinyun Machinery Development Co.,Ltd is good at Paper Converting Machinery Manufacture.
Professional supplier of:
1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)
2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent roll, Customize Service)
3) Facial Tissue Machine (2-14 output lanes)
4)Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)
5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)
6) Pocket Tissue Machine(mini and standard size)

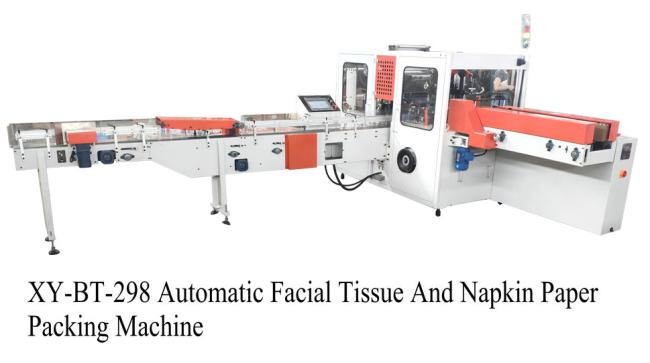

7) All kinds of Tissue Paper Cutting and Packing Machine
