Xinyun Jrt Roll Automatic Maxi Roll Paper Cutting Band Saw Machine Max 300mm Length 15KW

Price Negotiable
Price: $22000-25000/SET
MOQ: 1Set
Delivery Time: 60DAYS
Brand: Xinyun
Product Description

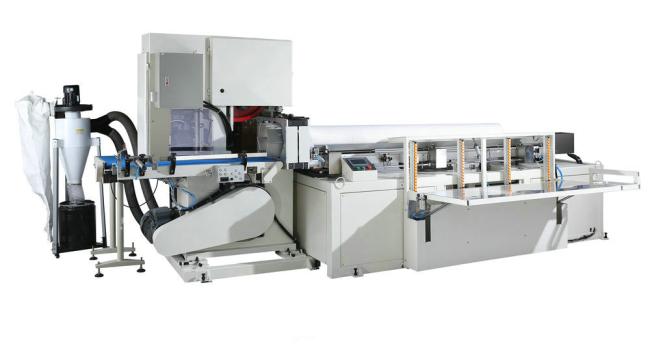

Automatic Jrt Jumbo Roll Maxi Roll Tissue Paper Band Saw Cutting Machine XY-AI-500

Product Application
The equipment is the latest research and development which is the extension of the company with the current market situation.
Using PLC program control, big screen true color human﹣computer interface. The precise servo control feed length, electromechanical integration control and other international advanced technology con automatically detect each key action, has good fault information prompt system, make the whole production line achieving the best working state.



Product Specifications
Cutting speed 15-30cuts/minute
Cutting channel single channel
Cutting blade band saw blade
Cutting blade size 5180*90*1.2
Log length Max. 2200m Or Max. 2850mm
Tolerance ±2mm
Cutting length Max. 280mm
Cutting diameter 150-300mm(Adjustable 150-200, 200-300)
Thickness of paper core Max.3 mm
Power supply 15KW 3 phase 4line 380V 50HZ
Machine weight 2700KG
Overall size of machine 4600*2350*2200mm(2.2m jumbo roll)
5300*2350*2200mm (2.2-2.85m jumbo roll)
Separated size Paper storage: 1500*1650*900mm( 2-4 logs )
Main machine: 4600*1700*2200mm(2.2m jumbo roll)
Paper storage: 1700*1650*900mm ( 2-4 logs )
Main machine: 5300*1700*2000mm(2.2-3m j
umbo roll)


Video Link: https://youtu.be/4jasCm1xL7g

https://youtu.be/YVRAW_Uks18




Company information

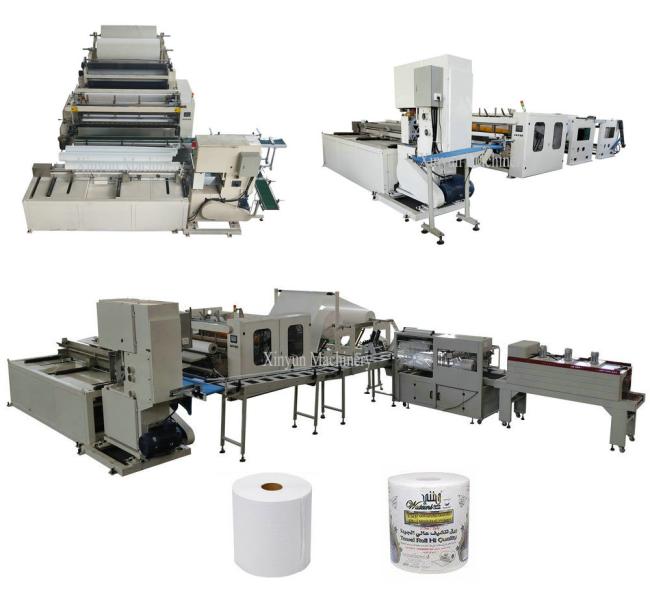

Fujian Xinyun Machinery Development Co.,Ltd is good at Paper Converting Machinery Manufacture.Professional supplier of:
1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)
2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent roll, Customize Service)
3) Facial Tissue Machine (2-8 output lanes)
4 )Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)
5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)
6) Pocket Tissue Machine(mini and standard size)
7) All kinds of Tissue Paper Cutting and Packing Machine
8) Another Household Paper Equipments and Production Line.
