45kw Toilet Paper Production Line Embossing 1800mm Width Recycling
XY-TQ-A-C Low Price Semi Automatic Toilet
Paper Kitchen Towel Maxi Roll Paper Making Machine Production Line

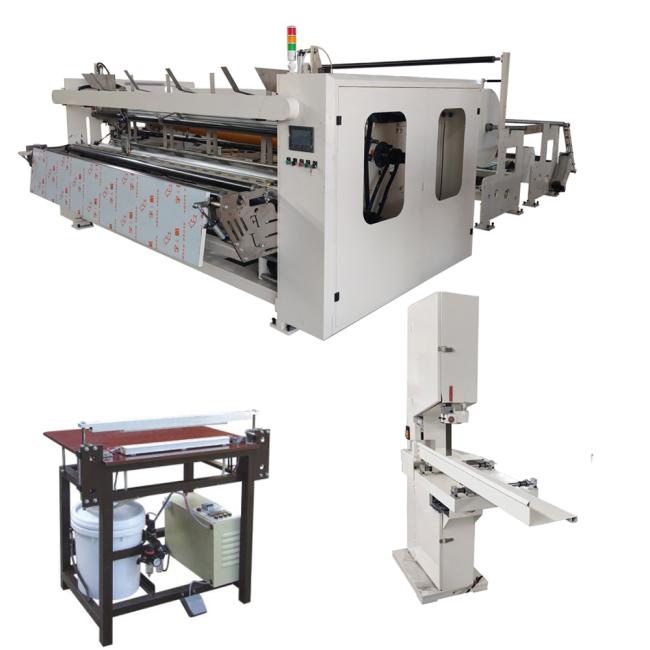

This production line is a complete production line for producing small toilet tissue paper, which composed of four machines:
1)XY-TQ-B Full-automatic Dot-to-Dot High-speed Rewinding and Perforating Toilet Paper Machine
2)XY-AI -300 Toilet Paper Cutting Machine,
3)XY-AI-398-B Plastic Bag Sealing and Packing Machine
4) XY-SD-B Automatic Paper Core Making Machine
Video Link: https://youtu.be/AUm-0c_OR0c

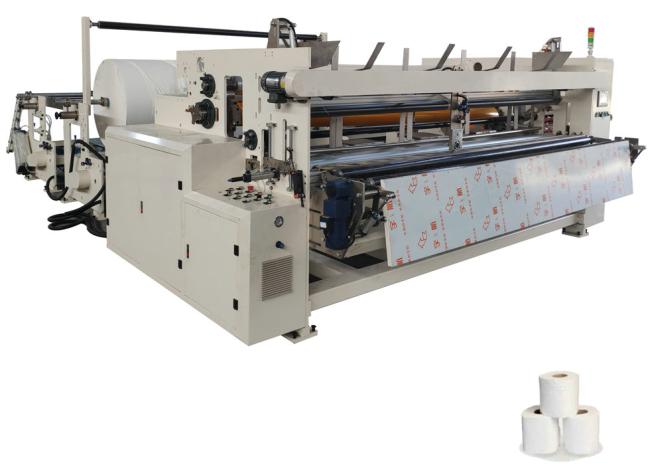

Automatic toilet paper rewinding machine is for toilet paper roll processing. Machine have core feeding unit, can do both
with and without core. Raw material from jumbo roll after full embossing or edge embossing, then perforation, end cutting and spray the tail glue become a log. Then it can working with cutting machine and packing machine to become the finished products. The machine is controlled by PLC, people operate it through touch screen, the whole process is automatic, easy to operate, lower the man cost. And Our machine can special-made according to clients' requirements.
Video Link: https://youtu.be/r8mkv57RIrs
|
Model
|
XY-TQ-B
|
|
Jumbo Roll Width
|
1800mm (Other size can be specified)
|
|
Jumbo Roll Diameter
|
max. 1200mm(Other size can be specified)
|
|
Jumbo Roll Inner Core Diameter
|
3 inches(76.2mm)
|
|
Perforation Distance
|
4 anvil Blades(115mm,230mm)
(Other size can be specified)
|
|
Finished Product Diameter
|
80~280mm
|
|
Finished Product Inner Diameter
|
38~76mm
|
|
20Production Speed
|
200-230m/min
|
|
Program Controller
|
PLC
|
|
Jumbo roll paper stand
|
1 or 3 Stands(Need to be specified)
|
|
Pneumatic System
|
0.5~0.8MPA(Provide by user)
|
|
Main Power
|
18KW
|
|
Overall Dimension
|
10000*3000*2000(L*W*H)
|
|
Weight
|
About 12T(wall board structure) (Other size can be specified) |
|
Jumbo Roll Layers
|
1~3plys,14~30gsm
|
|
Edge-Line Embossing
(can be specified)
|
Steel to steel (Pneumatic Control)
|
|
Embossment (can be specified)
|
Steel to Rubber, Double Sets
|
|
Voltage
|
380V 50HZ
|

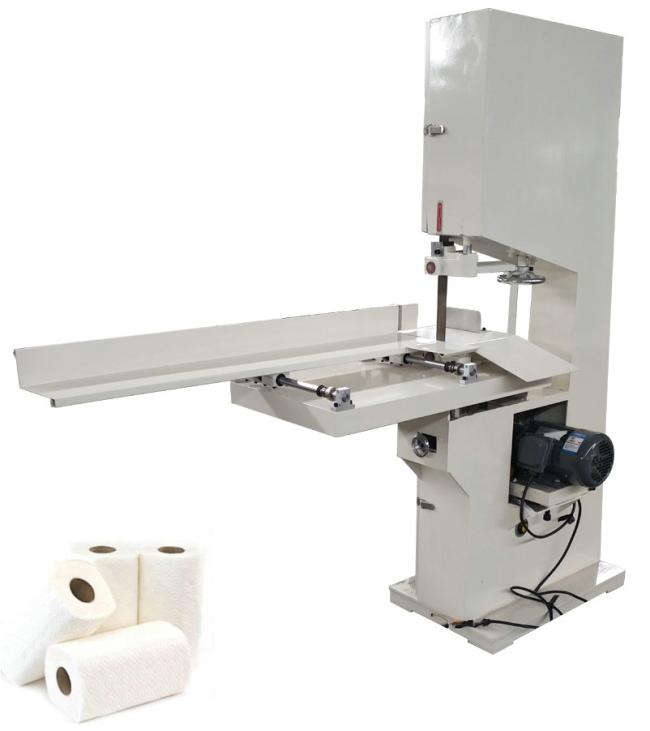

XY-AI-300 Manual Roll Paper Cutting MachineThis machine is the equipment for Toilet Paper and Kitchen Towel roll. The main function is to cut the rewinded big toilet paper into various kinds of standard small rolls.The machine is composed with stander, saw blade drive, adjustment, tension, saw blade grind, operation table and hand table.It is enjoy compact structure, stable running and convenient operation.Video Link: https://youtu.be/OQISmATEKPg

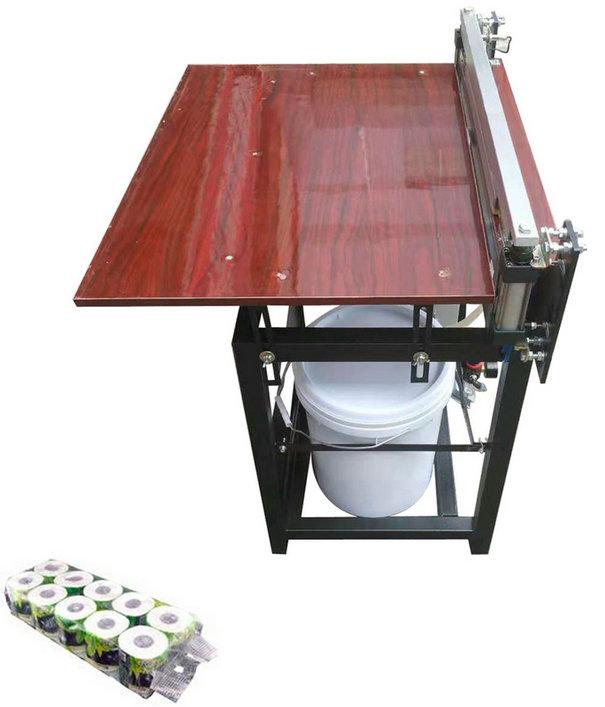

XY-AI-398-B Semi-automatic Plastic Bag Sealing Machine
Feature And Functions
1.Machine are the pioneer to use mini PLC and screen adjustable temperature range ensure fast efficient and accurate seal and cut operation.
big save for downtime and running cost.
|
Speed
|
10-20 bags/minute
|
|
Width of Flat Seal Thread
|
6mm
|
|
Max sealing width
|
49 cm
|
|
Diameter of Round Thread
|
¢0.5mm
|
|
Materials
|
Nickel Chrome Thread
|
|
Power
|
1.5KW (220V 50HZ)
|
|
Air compressor
|
0.3-0.5mpa (provided by customer)
|
|
Dimension (L×W×H)
|
900*620*960mm
|
|
Weight
|
80Kg
|

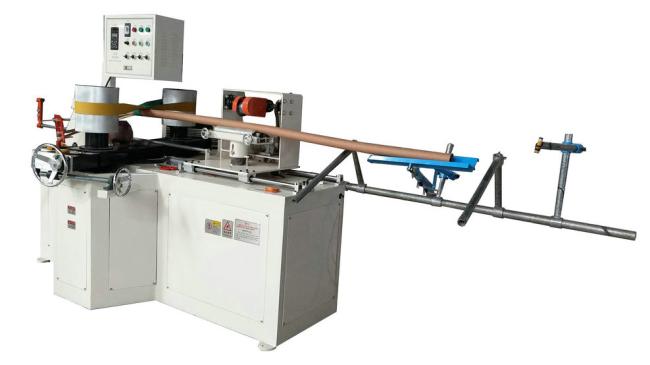

XY-SD-B Automatic Roll Core Making Machine
|
Production speed
|
15 ~ 20m / minutes
|
|
Kraft paper width
|
50-105 mm
|
|
Paper Tube diameter
|
20mm~100mm (can be customized)
|
|
Paper tube layers
|
2 ~ 30 layers
|
|
Paper grams amount
|
150-400 gsm
|
|
Reel Length
|
800-3000 mm
|
|
Defect rate
|
≤2%
|
|
Power
|
4.5KW 380V 50HZ
|
|
Equipment Size(L*W*H)
|
main machine: 2950*1700*1800mm
glue buckets device: 1250*850*1200mm |
|
Weight
|
1500Kg
|
After Sales Service
Why choose machines from Fujian Xinyun Machinery Development Co.,Ltd?
1.Good quality of machine with reasonable price.
2.Good service:Any question from customer will by replied within 24 hours.
For all the machines we sell, we will offer one-year guaranteen for free and all life-long maintenance.
We deliver a USB dish of Operation Video with machine, it will help customers to work the machine easily.
After the machines arrive, the sellers shall send technicians to install the production line(if need).
And the buyer shall pay their round-trip air tickets from China factory to buyer's factory, the charge of visa, food, transportation and accommodation in buyer's city.
