Xinyun 90m Diameter Tissue Paper Production Line , Toilet Paper Rewinding Machine
Price:
50,000-65,000USD
MOQ:
1
Delivery Time:
70-80 days
Brand:
Xinyun
Product Description
XY-TQ-A-H Automatic Jumbo Roll Paper Maxi Roll Toilet Paper Rewinding Machine Production Line
This production line consists of Wall Type Automatic Rewinding Machine, Band saw cutting machine and automatic shrink packing machine From jumbo roll paper into the finished rollers, the whole line work smoothly and run stable, saving the labor cost and reducing the labor strength. It's best choice for the producing maxi roll paper products.
Video Link:https://youtu.be/ofqJQbYss3I
XY-TQ-B Full Automatic Toilet Paper Rewinding Machine
Automatic toilet paper rewinding machine is for toilet paper roll processing. Machine have core feeding unit, can do both with and without core. Raw material from jumbo roll after full embossing or edge embossing, then perforation, end cutting and spray the tail glue become a log. Then it can working with cutting machine and packing machine to become the finished products. The machine is controlled by PLC, people operate it through touch screen, the whole process is automatic, easy to operate, lower the man cost. And Our machine can special-made according to clients' requirements.
The production process is: Unreeling - Embossing - Perforating- Lamination- Rewinding- Tail-gluing- Edge trimming---Automatic core loading.
Video Link: https://youtu.be/yy_CHnOqlqs
Function and Features:
1. Automatic core feeding system, automatic log pusher after rewinding, then rewinding the new log again.
2. Automatic edge-trimming, core feeding, glue spraying and sealing synchronously in one time. Leaving 10-18mm tail, easy to rewind again, so reducing shortcut waste and save the cost.
3. Adopts international advanced PLC programmable controlling technique, man-machine interface operation, data set and parametric fault shows on touch screen.
4. Adopts 4 pieces high Precision spiral knives, low noise, clear perforation, adopt gearbox to have bigger range.
5. Three horizontal type back stands, pneumatic loading system, with wide driving flat belts; each jumbo roll can be adjusted independently.
6. Embossing Unit: adopt point to point embossing rollers, making the two layers match well, the paper is soft and has clear patterns.
7. Adopt jogging switches for wearing the paper, easy and safe to operate.
| Model | XY-TQ-B Automatic rewinding toilet roll paper making machine |
| Jumbo Roll Max Width | 2800mm (Other size can be specified) |
| Jumbo Roll Diameter | Φ1200mm(Other size can be specified) |
| Jumbo Roll Inner Diameter | 3inches(76.2mm) (Other size can be specified) |
| Perforation Distance | 4 anvil Blades(115mm)(Other size can be specified) |
| Finished Product Diameter | Φ90~φ280mm |
| Finished Product Core Diameter | φ38~φ76mm |
| Program Controller | PLC( INVT) |
| Unwind Stands | 2 Stands(Need to be specified) |
| Production Speed | 0~230m/min |
| Pneumatic System | 3HP Air Compressor, Minimum Pressure: 5kg/cm 2Pa(Provide by user) |
| Edge-Line Embossing | Steel to steel (Pneumatic Control) |
| Full Embossment | Steel to rubber. |

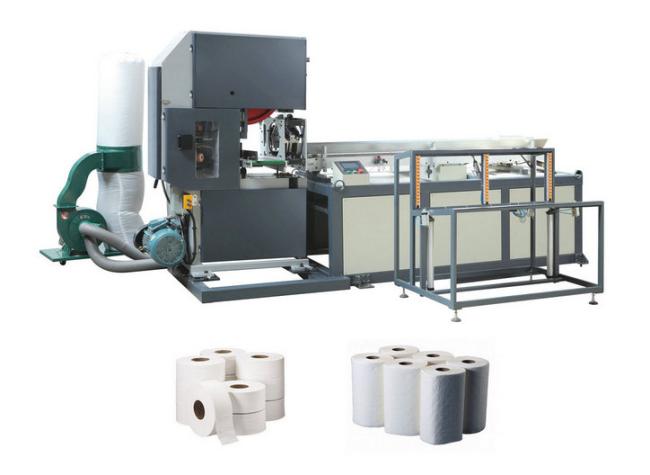

XY-AI-500 Automatic maxi roll band saw cutting machine
Description of the equipment:
The equipment is the latest research and development which is the extension of the company with the current market situation.Using PLC program control, big screen true color human-computer interface. The precise servo control feed length, electromechanical integration control and other international advanced technology con automatically detect each key action, has good fault information prompt system, make the whole production line achieving the best working state.
Features:
1.The main motor using the inverter independent drive.
2.For one set of machine, the cutting diameter of paper roll is adjustable as 150~250mm.
3.The equipment adopts automatic sharpening system, grinding wheel can be automatic feeding adjustment according to the blade loss.
4.The grinding system is equipped with an independent dust removal device to ensure the working environment.
5.The band saw adopts hydraulic tension system to ensure the tension of band saw.
6.It will be automatic stop and alarm when the knife is broken.
7.High precision servo system is used to ensure the quality of finished products.
8.According to the raw materials and the length of finished products, the number of finished products can be calculated automatically.
9.The device stops working and prompts the interface when the input data is wrong.
10.Using band saw for cutting and reduces the cost of use of users.
11.The thickness of finished paper core should less 3mm(Suggestion)
Video Link:https://youtu.be/jSJP9qnrAIc
|
Model
|
XY-AI-500 Automatic maxi roll band saw cutting machine
|
|
Cutting speed
|
15-30 cuts/min
|
|
Cutting channel
|
single channel
|
|
Cutting blade
|
band saw blade(18,000--20,000 rolls/blade)
|
|
Cutting blade size
|
5180*100*1.05
|
|
Log length
|
<=2200mm or <=2850mm
|
|
Tolerance
|
±2mm
|
|
Cutting length
|
<=300mm
|
|
Cutting diameter
|
100-280mm(Adjustable)
|
|
Thickness of paper core
|
<=3 mm
|
|
Power supply
|
15KW 3 phase 4line 380V 50HZ
|
|
Machine weight
|
2700KG
|
|
Overall size of machine
|
4600*2350*2200mm(2.2m jumbo roll)
5300*2350*2200mm (2.2-2.85m jumbo roll) |
|
Separated size
|
Main machine: 4600*1700*2200mm(2.2m jumbo roll)
Paper storage: 1500*1650*900mm |
|
Main machine: 5300*1700*2000mm(2.2-3m jumbo roll)
Paper storage: 1700*1650*900mm |

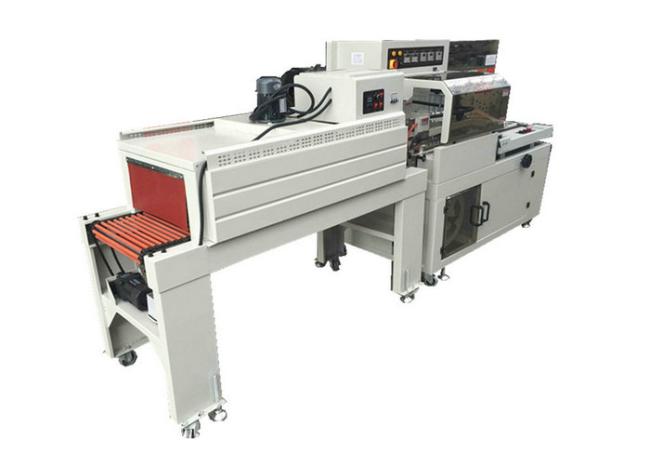

XY-TN-269 Automatic maxi roll paper shrink packing machine
Automatic cutting sealing and temperature shrink machine is using shrink film package the product out, after heating, the shrink film will shrink the wrap coiler in a package. In order to fully display the item, with protection and increase the beauty and sense value.
Video Link:https://youtu.be/Q8CQ8ggc6TE
|
Model
|
4525L cutting and sealing machine
|
4525 temperature shrink machine
|
|
Power source
|
220V 50Hz/60Hz
|
380V 50/60Hz
|
|
Rated Power
|
1.5KW
|
11KW
|
|
Sealing Size
|
L550*W450MM
|
450*220*120mm
|
|
Packing speed
|
10-20 Packs /min
|
10-20m/min
|
|
Packaging Size
|
L450 x W400 x H120 MM
|
450*220*120mm
|
|
Machine size
|
L1500×W750×H1360mm
|
L1600×W700×H1300mm
|
|
Weight
|
300KG
|
150KG
|
Related Products
FAQ
Q: Are you trading company or manufacturer ?
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 60-90 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance,balance before shipment.
After Sales Servies
Why buy Machine from Fujian Xinyun Machinery Development Co.,Ltd ?
1. Good quality of machine with reasonable price.
2. Good service: Any question from customer will be reply within 24 hours.
For all the machines we sell, we will offer two-years guarantee for free and all life maintenance.
We deliver a USB dish of Operation Video with machine,it will help customer to work the machine easy.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 60-90 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance,balance before shipment.
After Sales Servies
Why buy Machine from Fujian Xinyun Machinery Development Co.,Ltd ?
1. Good quality of machine with reasonable price.
2. Good service: Any question from customer will be reply within 24 hours.
For all the machines we sell, we will offer two-years guarantee for free and all life maintenance.
We deliver a USB dish of Operation Video with machine,it will help customer to work the machine easy.
After the machines arrive, the sellers shall send technician to install the production line(if need). And the buyer shall pay their round-trip air tickets from China factory to buyer's factory, the charge of visa, food, transportations and accommodation in buyer's city.
