160℃ Cured, Excellent Leveling HAA NH6562 Polyester Resin

◇ Applications:

NH6562 is a saturated carboxyl polyester resin for polyester/primid powder coating system at the ratio 95:5.

◇ Basic features:

Excellent leveling

Excellent mechanical properties

Good weathering resistance

Low temperature curing at 160℃

◇ Specifications:

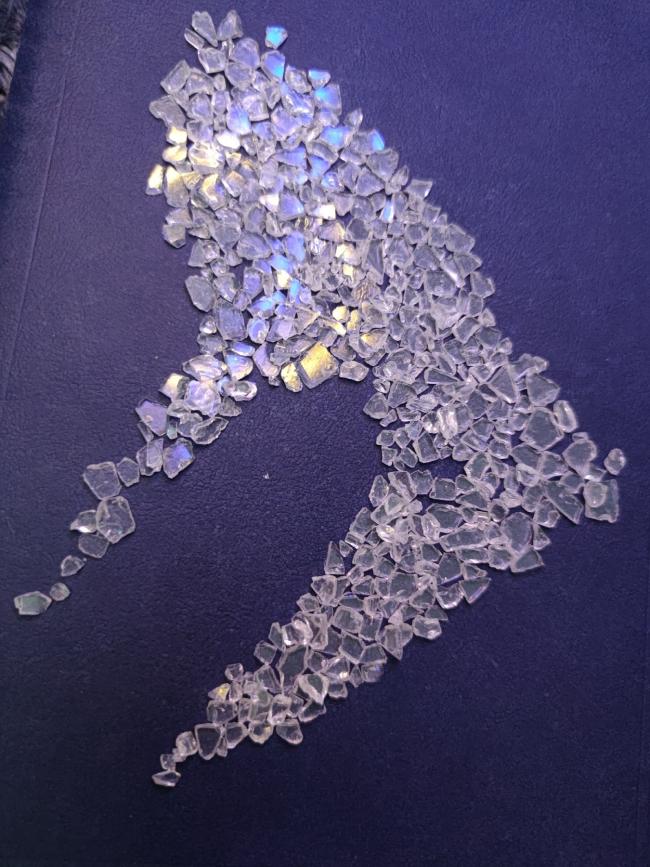

Appearance white or light yellow transparent flakes

Color (50%DMF): max: 2

Acid number(mgKOH/g): 30～35

Softening point(℃): 95～105

Glass transition temp.(℃): ～53

Melting viscosity(200℃, cone/plate, mPa·s): 3700±600

Reactivity at 180℃(s, 5% T105): 210±30

◇ Recommend Formulation:

◇ Extrusion Condition:

Two-screw extruder

Zone I: 90～110℃ Zone II: 110～120℃

Speed of revolution: 500～1200rpm

Fineness of powder: ＜100μm

◇ Application Condition:

Electrostatic spraying with: 40～70KV

Film thickness: 50～100μm

Degreased cold-rolled steel 0.5mm

◇ Curing Requirement: 160℃×10min.

◇ Film Properties:

Gel time(180℃,sec) 160~220

Flow(180℃,mm): 25~29

Gloss(60°): ≥85%.

Bending(φ1mm): Pass

Adhesive(1mm,grade): 0

Pencil hardness: ≥1H

Impact (50cm): pass

◇ Packaging:PE bags, N.W. 25KG±0.1KG / bag

Remarks:all the polyester resins could be customizes to Non-tin (A) ,anti gas burners(G),tribo gun(T) and anti-blooming(F)

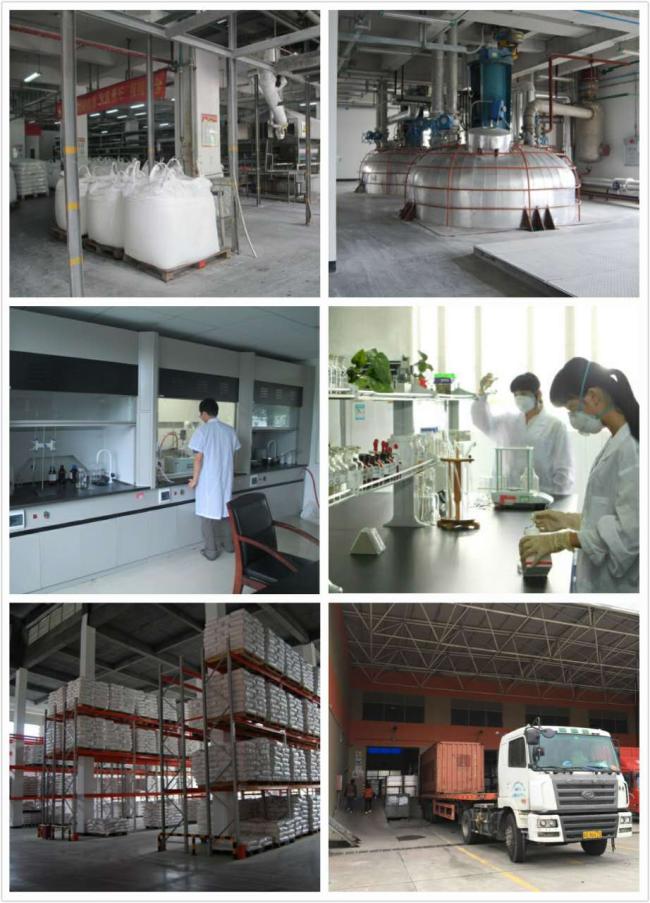

We adhere to the quality concept of "quality is the life of the enterprise", and comprehensively provide customers with one-stop solutions of standards, technical diagnosis and service. Product quality and stability are respected by customers, and Kinte’s market reputation is forged by continuous adherence. Kinte powder and liquid coating were successively rated as "famous brand products of Guangdong Province".
