Acid and Alkaline Resistance HAA Polyester Resin NH6361 with High Crosslinking Density

◇ Applications:

NH-6361 is a saturated carboxyl polyester resin designed for 93:7 Primid XL 552 powder coating to be cured at 160℃.

◇ Basic features:

High crosslinking density

Excellent chemical resistance

Good mechanical properties

◇ Specifications:

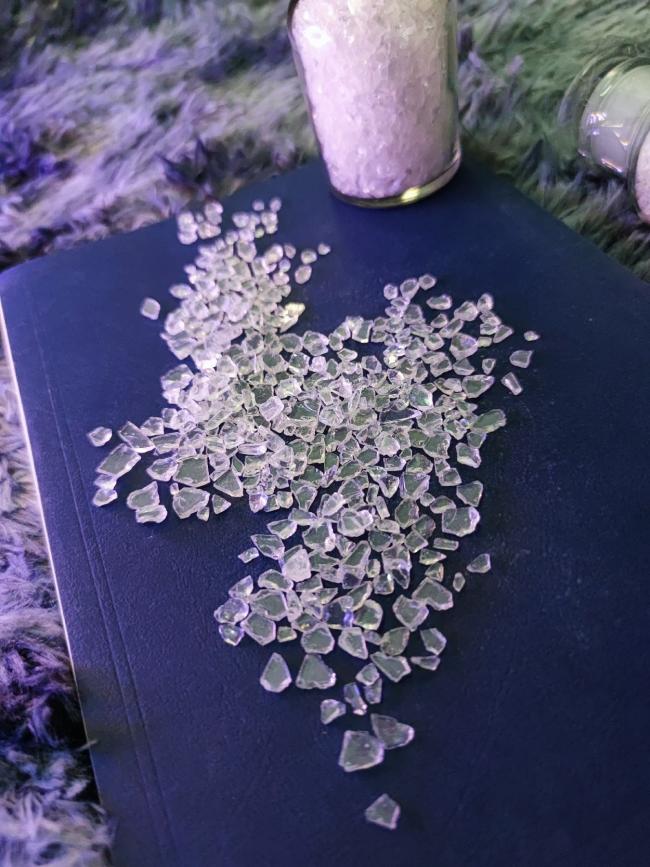

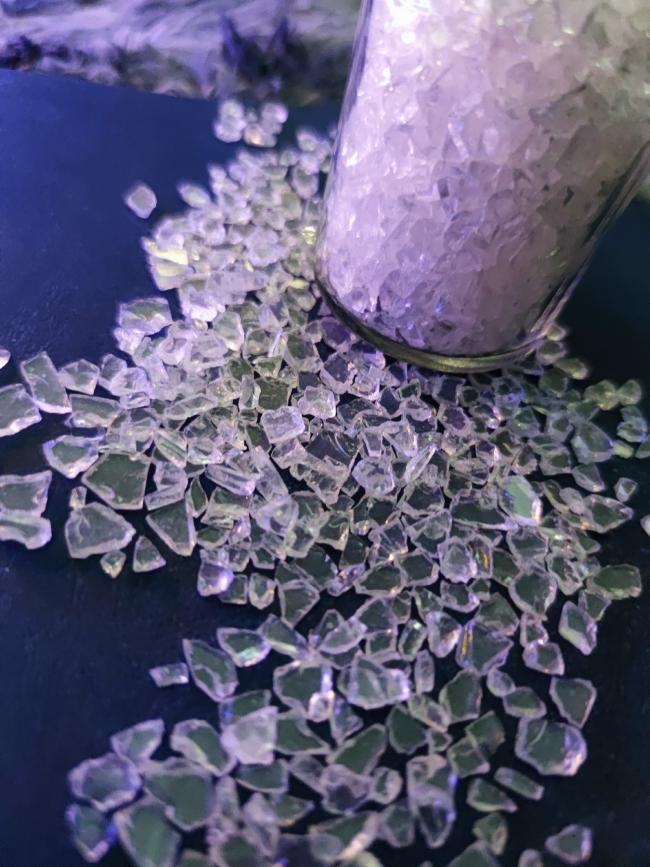

Appearance:White or pale yellow transparent flakes

Color(50%DMF): max:2

Acid number(mgKOH/g): 48～53

Softening point(℃):95～105

Glass transition temp.( ℃):～55

Melting viscosity(200℃, cone/plate, mPa·s): 3000±700

Reactivity at 180℃(s, 7% XL552): 80±30

◇ Recommend Formulation:

◇ Extrusion Condition:

Two-screw extruder

Zone I: 90～110℃ Zone II: 110～120℃

Speed of revolution: 500～1200rpm

Fineness of powder: ＜100μm

◇ Application Condition:

Electrostatic spraying with: 40～70KV

Coating film thickness: 50～70μm

Degreased cold-rolled steel 0.5mm

◇ Curing Requirement: 160℃×10min.

◇ Film Properties:

Gel time(180℃,sec) 60~90

Horizontal flow (180℃), mm: 20~25

Gloss(60°): ≥85%

Bending(φ1mm): pass

Adhesive(1mm,grade): 0

Pencil hardness: ≥1H

Impact (50cm): pass

◇ Packaging:

PE bags, N.W. 25KG±0.1KG / bag

Remarks:all the polyester resins could be customizes to Non-tin (A) ,anti gas burners(G),tribo gun(T) and anti-blooming(F)
