0.2 Class 2000A Outdoor Split Core Current Transformer For Online Testing

Price Negotiable

Price: Negotiable

MOQ: 1

Delivery Time: 1 weeks

Brand: HNMC

Product Description

Split Core Current Transformer SKH80

General description

Weatherproof Outdoor Split-core Current Transformer IP68 online monitoring

Characteristic	Apply to copper row teset on line
Current range	600-2000A
Jaw size	80mm×30mm

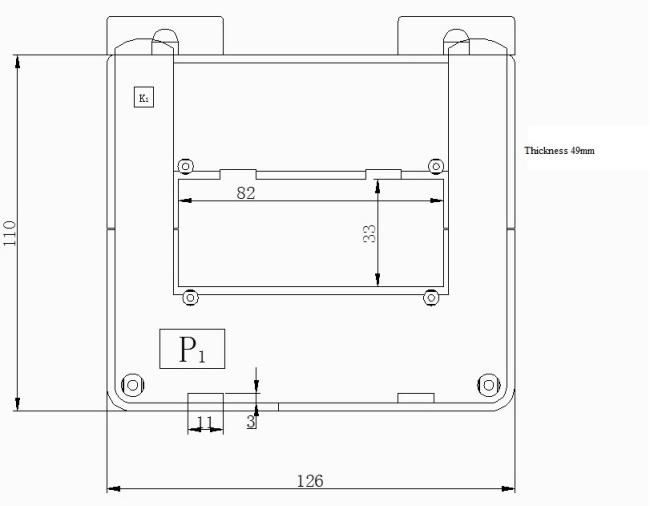

External size	126mm×110mm×49mm
Load capacity max	1VA (secondary 1A ), 5VA(Secondary 5A)
Installation	Bracket
Output	terminal output

Features

Outdoor Split-core Current Transformer Application

- Utility pole probe monitoring & management
- Power Distribution line monitoring
- Outdoor distribution board and panel
- Outdoor distribution transformer monitoring

Outdoor Split-core Current Transformer Features

- Outdoor rating IP68
- UV stabilized thermoplastic
- Hi-potential voltage 10kV per min.
- Compact size, light-weight, simple Installation
- Over-voltage protection circuits
- permalloy core
- Industrial designed for outdoor and safety

Technical parameters
Standards	IEC60044-1; IEC 61869-2; NTC 2205; GB1208-2006; ANSI C57.13
Accuracy Class	0.5 (1A or 5A output), 0.2 (mA output)
Range of primary rated current	600-2000A
Rated frequency	50/60Hz
Rated secondary current	5A or 1A
Rated short-time thermal current	40kA, 1S
Rated continuous thermal current	150%I1n
Secondary winding power frequency withstand voltage	3kV, 1min
Safety Factor Rating	(FS) <10
Output signal	1A, 5A (mA output, mV output, 1V or 5V, customized)
Cable length	2.5m, 5m, 10m(customized)
Flame retardant ABS plastic shell inside, jaw waterproof apron.
