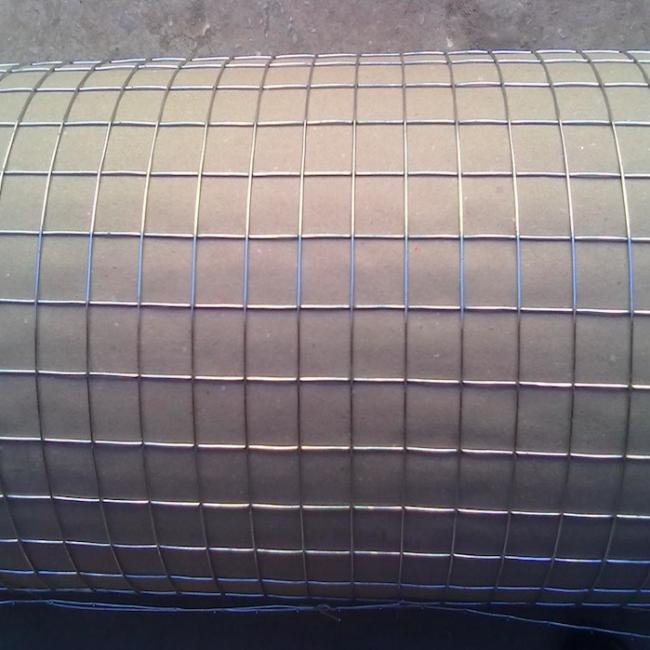

18 Gauge Welded Metal Wire Mesh Hot Dipped Galvanized 19mm X 19mm
19mm X 19mm Hot Dipped Galvanized After Welding Wire Mesh 18 Gauge Wire Diameter 30m Length
19mm X 19mm Hot Dipped Galvanized Welded Wire Mesh is a metal wire screen that is made up of low carbon steel wire or Galvanized wire. Welded wire mesh machines are used to produce the mesh with precise dimensional control. The product can result in considerable savings in time, labour and money.
Made of carbon steel wire then the whole mesh roll is proceed the hot dipped galvanized production. There is no welding spot in the wire cross apparent. Welded wire mesh with excellent corrosion resistance and oxidation resistance, is extensively used as fencing, decoration and machinery protection material in agriculture, construction.
transport, mine, sports field, lawn and various industrial fields.

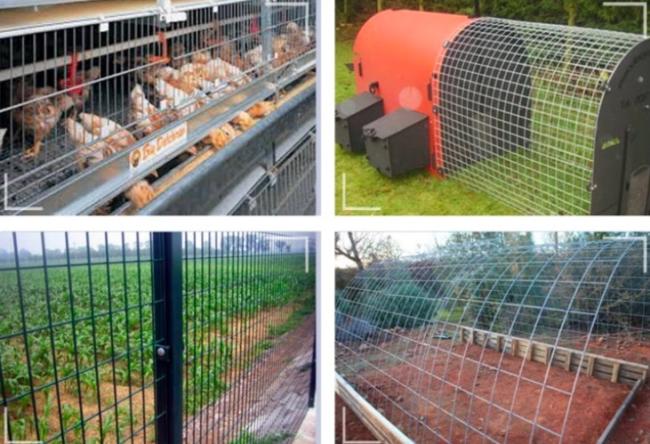

It is also suitable product for constructing animal cages, enclosure works, fabricating of wire containers and baskets, grills, partitions, machine protection fences, gratings and other construction applications.
- Strong welded and bright luster. 1 inch by 2 inch openings keep out pests and small critters
- Strong mesh, won’t come loose if cut in pieces or under pressure.

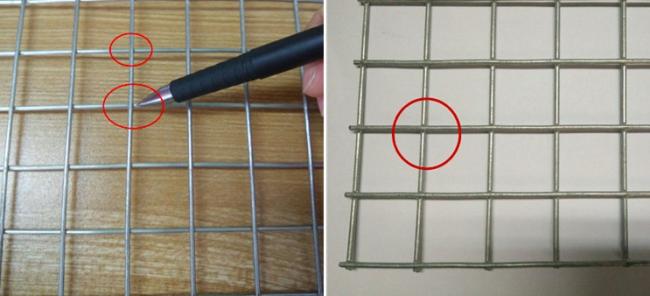

- Galvanized before welding. Anti-corrosive and anti-rust.
- Great for property boundaries, enclosing gardens and more
- 3 ft. by 50 ft. with 1 inch x 2 inch mesh
Specification
| Specification List of Welded Wire Mesh Roll | ||

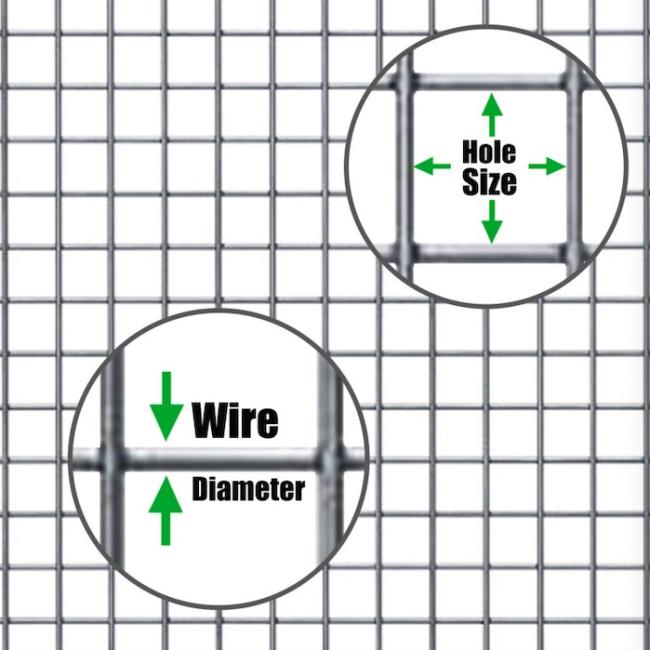

| Opening | Wire Diameter (BWG&mm) | |
| In inch | In metric unit(mm) | |
| 1/4" x 1/4" | 6.4mm x 6.4mm | 22,23,24 |
| 3/8" x 3/8" | 10.6mm x 10.6mm | 19,20,21,22 |
| 1/2" x 1/2" | 12.7mm x 12.7mm | 16,17,18,19,20,21,22,23 |
| 5/8" x 5/8" | 16mm x 16mm | 18,19,20,21, |
| 3/4" x 3/4" | 19.1mm x 19.1mm | 16,17,18,19,20,21 |
| 1" x 1/2" | 25.4mm x 12.7mm | 16,17,18,19,20,21 |
| 1" x 1" | 25.4mm x 25.4mm | 16,17,18,19,20,21 |
| 1-1/2" x 1-1/2" | 38mm x 38mm | 14,15,16,17,18,19 |
| 1" x 2" | 25.4mm x 50.8mm | 14,15,16 |
| 2" x 2" | 50.8mm x 50.8mm | 12,13,14,15,16 |
| 2" x 3" | 50mm x 70mm | 2.0mm,2.5mm,1.9mm,1.65mm |
| 3" x 3" | 75mm x 75mm | 2.67mm,2.41mm,2.11mm,1.83mm,1.65mm |
| 2" x 4" | 50mm x 100mm | 2.11mm,2.5mm |
| 4" x 4" | 100mm x 100mm | 2.0mm,2.5mm |
| Technical Note: | ||
| 1,Standard roll length: 20m 25m 30m;width: 0.5m to 1.8m | ||
| 2,Special sizes available at request | ||
| 3,Packing: in waterproof paper in rolls. Custom packing available at request. | ||
Production Details
Hot Dipped Galvanized After Welding
Application
Packing & Loading:
- Wrap with plastic film
- With labels
- All bulk in container
