100 X 50mm Welded Wire Mesh Panel 5mm Diameter Roll Top Fencing Panels
PVC Coated Rolled Top Fencing Welded Wire Mesh Panel 100mm X 50mm Opening 5mm Wire Diameter

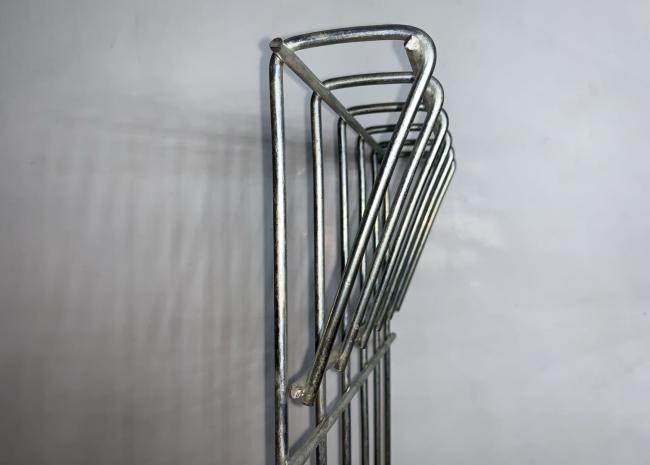

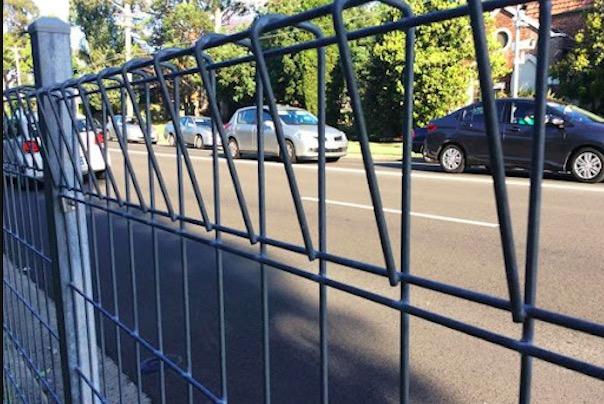

Roll top mesh fence system included roll top mesh panels, post and fasterns. The post is made by 60 mm × 60 mm × 2.5 mm hollow sections or 80 mm × 60 mm × 2.5 mm rectangle hollow sections and fitted with M8 threaded inserts for securing panels, posts come inclusive of top caps.
This type of security fencing has the benefits of good appearance, high rigidity, good through vision, color can be customized, and suitable for where safety is a consideration.
Specification
- Mesh Pattern 50 mm × 100 mm, 50 mm × 150 mm or 50 mm × 200 mm, upto 50 mm × 700 mm resistance welded at each intersection.
- Wire diameter: 5 mm.
- Panels width 2500 mm, 3000 mm.
- Heights 900, 1200, 1500, 1800 mm.
- Surface Anti-corrosion treatment: galvanized and PVC coated in Green, white, red and Black color.
- Panels are flush edged all round, with radiused corners to the 50 mm wide beam profiles. Post centers at approximately 3.025 m.
- Posts are polyester coated with a galvanized substrate.
- In order to achieve fence heights over 1.8 m the panels are designed for multi-lift erection, one or more panels placed above the bottom panel.
| Fence Height | Panel Size-1 H × W | Panel Size-2 H × W | Inter clips | Corner clips |
|---|---|---|---|---|
| 900 mm | 900 mm × 2500 mm | 900 mm × 3000 mm | 3 | 6 |
| 1200 mm | 1200 mm × 2500 mm | 1200 mm × 3000 mm | 4 | 8 |
| 1500 mm | 1500 mm × 2500 mm | 1500 mm × 3000 mm | 4 | 8 |
| 1800 mm | 1800 mm × 2500 mm | 1800 mm × 3000 mm | 5 | 10 |
| 2000 mm | 2000 mm × 2500 mm | 2000 mm × 3000 mm | 6 | 12 |
| 2400 mm | 2 × 1200 × 2500 mm | 2 × 1200 × 3000 mm | 7 | 14 |
