40 X 80mm Expanded Steel Mesh Sheet / Galvanised Steel Walkway Grating Customized
Expanded Galvanized Metal Mesh For Walkway Railing Screen 40mm X 80mm Opening 3mm Thickness

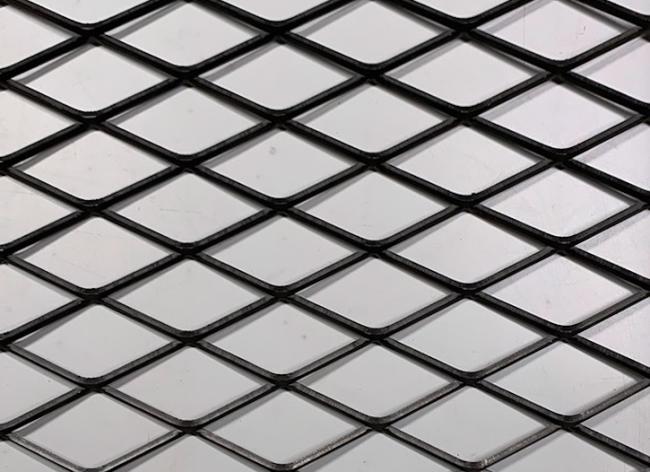

Expanded metal mesh screen is also called Diamond wire mesh screen
It's produced by expanded metal mesh and then welded into the steel frame made by steel pipe or steel angle bar. This type of fence is used extensively for high security applications, the industrial solution for high traffic areas that require maximum security. Expanded Fencing is based on a simple round rail fence framework with the added strength and security of expanded metal mesh panels.
Expanded metal mesh fence is also used as high security fence with barbed wire or razore barbed concertina wire above.
Specification
| Thickness of plate (mm) | Nominal size of mesh(mm) | Size of standard products(mm) |
Calculated weigth |
|||
| THICKNESS | SWD | LWD | STRAND | WIDTH | LENGTH | kg/m2 |
| 0.8 | 10 | 25 | 1.12 | 1.41 | ||
| 12 | 30 | 1.35 | ||||
| 15 | 40 | 1.68 | ||||
| 2 | 18 | 50 | 2.03 | 1800 2000 2500 |
3600 4000 5000 |
|
| 22 | 60 | 2.47 | ||||
| 29 | 80 | 3.26 | 4.42 | |||
| 36 | 100 | 4.05 | ||||
| 44 | 120 | 4.95 | 5.29 | |||
| 3 | 36 | 100 | 4.05 | |||
| 44 | 120 | 4.95 | ||||
| 55 | 150 | 4.99 | 2000 | 5000 | 4.27 | |
| 2500 | 6400 | |||||
| 65 | 180 | 4.6 | 2000 | 6400 | 3.33 | |
| 2500 | 8000 | |||||
| 4 | 22 | 60 | 4.5 | 1500 | 2000 |
2000-3000 | 12.84 |
| 30 | 80 | 5 | 2000-4000 | 10.46 | ||
| 38 | 100 | 6 | 2000-4500 | 9.91 | ||
| 5 | 24 | 60 | 6 | 2000-3000 | 19.62 | |
| 35 | 80 | 6 | 2000-4000 | 14.71 | ||
| 38 | 100 | 7 | 2000-4500 | 14.67 | ||
| 56 | 150 | 6 | 2000-6000 | 8.41 | ||
| 76 | 200 | 6 | 2000-6000 | 6.19 | ||
| 6 | 32 | 80 | 7 | 2000-4000 | 20.6 | |
| 38 | 100 | 7 | 2000-4500 | 17.35 | ||
| 56 | 150 | 7 | 2000-6000 | 11.77 | ||
Our tenet is Prestinge First, Quality First,Efficiency First and Service First.
All inquires will be replied within 8 hours
High Quality, Reasonable prices, prompt delivery, perfect after-sales services.
Quality Quarantee:
A. All goods strictly inspected during production.
B. All products must be checked strictly before packing.
C. Every consignment must be re-inspected before shipment.
D. You are more than welcomed to my factory to inspect the goods at any time. Payment made via TT, LC, Western Union or DP.
Shipment:
A. Small and light and valuable goods will be sent by DHL, TNT, UPS, FED by airplane.
B. Large and heavy goods will be shipped by LCL, FCL or bulk vessel.
