Anti Slip Steel Heavy Duty Expanded Metal Mesh 5mm Thickness 35mm X 80mm
Expanded Metal Mesh Anti-Slip Decking Heavy Duty Galvanized Steel 5mm thickness 35mm X 80mm Opening

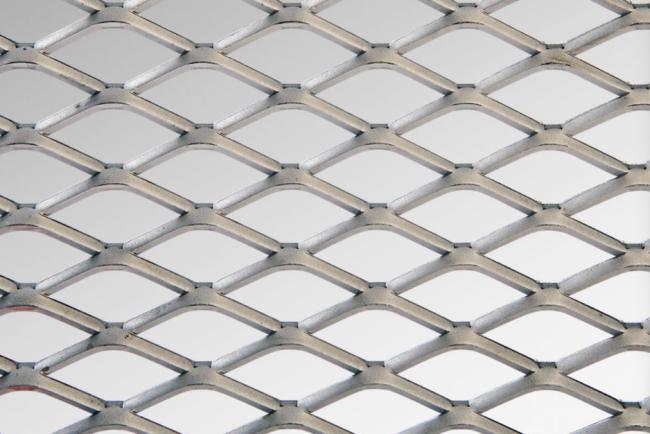

Expanded metal decking is made through cutting and stretching metal sheets or coils. The surface of the metal decking is generally raised to provide better non-slip characteristic.

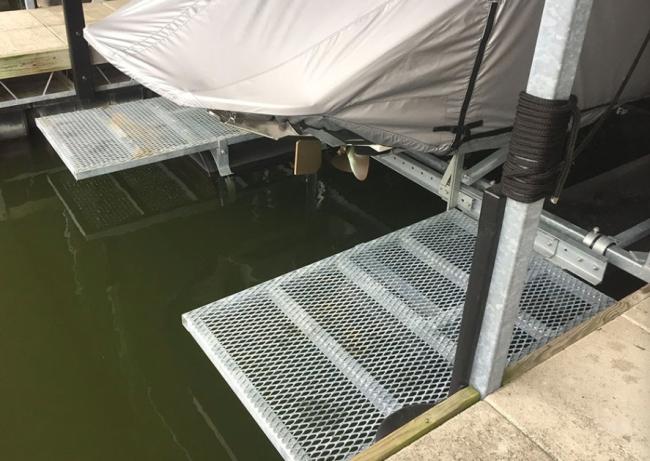

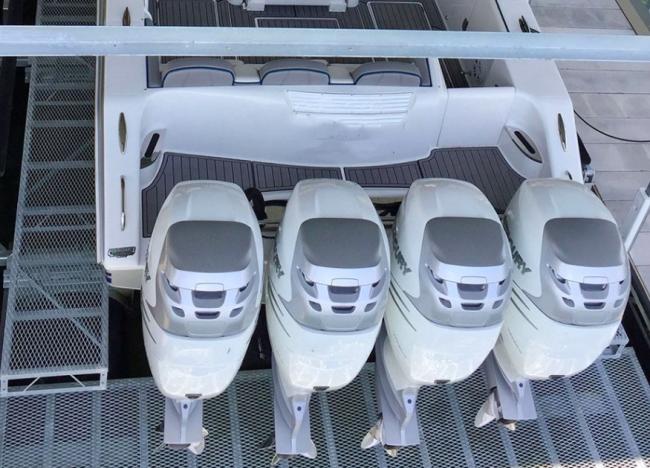

The expanded metal decking can be made of stainless steel, galvanized steel or aluminum. Due to its excellent anti-slip, high load-bearing performance and safety, it can be used to make decks, non-slip floors, stair treads, etc. Common applications include oil rigs, dock decks, balconies, platforms, gangways, aviation maintenance and assembly platforms, and bridge decks.
- High carrying capacity
- High security, the grid allows water to flow freely without water accumulation.
- Excellent slip resistance
Specification
| Thickness of plate (mm) | Nominal size of mesh(mm) | Size of standard products(mm) | Calculated weigth | |||
| THICKNESS | SWD | LWD | STRAND | WIDTH | LENGTH | kg/m2 |
| 0.8 | 10 | 25 | 1.12 | 1.41 | ||
| 12 | 30 | 1.35 | ||||
| 15 | 40 | 1.68 | ||||
| 2 | 18 | 50 | 2.03 | 1800 2000 2500 | 3600 4000 5000 | |
| 22 | 60 | 2.47 | ||||
| 29 | 80 | 3.26 | 4.42 | |||
| 36 | 100 | 4.05 | ||||
| 44 | 120 | 4.95 | 5.29 | |||
| 3 | 36 | 100 | 4.05 | |||
| 44 | 120 | 4.95 | ||||
| 55 | 150 | 4.99 | 2000 | 5000 | 4.27 | |
| 2500 | 6400 | |||||
| 65 | 180 | 4.6 | 2000 | 6400 | 3.33 | |
| 2500 | 8000 | |||||
| 4 | 22 | 60 | 4.5 | 1500 | 2000 | 2000-3000 | 12.84 |
| 30 | 80 | 5 | 2000-4000 | 10.46 | ||
| 38 | 100 | 6 | 2000-4500 | 9.91 | ||
| 5 | 24 | 60 | 6 | 2000-3000 | 19.62 | |
| 35 | 80 | 6 | 2000-4000 | 14.71 | ||
| 38 | 100 | 7 | 2000-4500 | 14.67 | ||
| 56 | 150 | 6 | 2000-6000 | 8.41 | ||
| 76 | 200 | 6 | 2000-6000 | 6.19 | ||
| 6 | 32 | 80 | 7 | 2000-4000 | 20.6 | |
| 38 | 100 | 7 | 2000-4500 | 17.35 | ||
| 56 | 150 | 7 | 2000-6000 | 11.77 | ||
