3 X 0.5 inch PVC Coated Welded Wire Mesh 10 Gauge 3510 Wire Security Fence Panels
PVC Powder Coated 3 inch X 0.5 inch X 10 Gauge 3510 Rigid High Security Fence Welded Mesh Panel
PVC Powder Coated Anti-climb 3510 Security Fence is a special welded wire fencing panel with high strong, usually used for prison wire wall. The welded security fence panel has small close mesh opening and horizontal wires that make it an incredibly robust fencing. It is called 3510 wire fence, because its mesh size is 3" × 0.5" × 10 gauge, which equates to 76.2 mm × 12.7 mm × 3.2 mm.
This system has good through visibility and is also esthetical pleasure. This panel and 358 security fence are highly regarded as the most difficult fence to penetrate, providing an excellent defence against climbing and cutting. 3510 welded fence is a professional structure designed for high security environments, combined with an steel framework, coated with heavily Galfan or powder coating.
Features
- 76.2 × 12.7 × 3.2 mm mesh size makes it difficult to penetrate using conventional hand tools, thus providing a high Security.

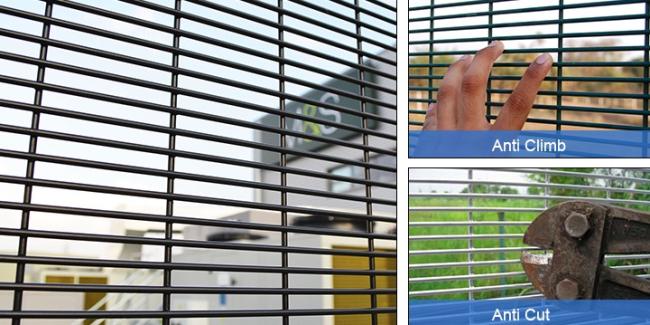

- With small and narrow mesh opening, no toe or finger holds, robust wire and strength welded joints on every weld make it anti-cutting and anti-climbing.
- With high strength, 3510 Security Fencing is lighter than 358 Security Fencing. Using 3.2 mm wire instead of 4 mm allows even better visibility - easier to see through, so it's ideal for commercial applications.
- Galfan or powder coated for long life protection.
Specification
- Mesh length × mesh width × wire diameter: 3" × 0.5" × 10# = 76.2 mm × 12.7 mm × 3.2 mm.
- Material: low carbon steel wire.
- Tensile Strength of wire: 500–750 N/mm2.
- Process: strong and durable welding.
- Mesh size: 76.2 mm × 12.7 mm.
- Fence length: 2 m, 2.5 m, 3.0 m as standard.
- Height: 1.5 m,1.8 m, 2 m, 2.4 m, 2.7 m, 3.0 m, 4.0 m, 5.2 m.
- Surface Finish: Glafan coated, or electro galvanized then plastic powder coated green, red, or black colors (Superior coating system designed for the harshest marine environments).
| Fence height (m) | Panel size (Height × Width) |
Fence Post (Height × Size × Thick) |
Clamp Bar (Height × Width × Thick ) |
Inter or corner Clamp No. (PCS) |
|---|---|---|---|---|
| 2.0 | 2007mm × 2515mm | 2700 × 80 × 80 × 3mm | 2007 × 60 × 5.00mm | 7 or 14 |
| 2.4 | 2410mm × 2515mm | 3100 × 80 × 80 × 3mm | 2400 × 60 × 5.00mm | 9 or 18 |
| 3.0 | 3010mm × 2515mm | 3800 × 100 × 100 × 3.0mm | 2997 × 80 × 6.00mm | 11 or 22 |
| 3.6 | 3610mm × 2515mm | 4500 × 100 × 100 × 3.5mm | 3607 × 100 × 7.00mm | 13 or 26 |
| Note: anti-climb mesh fencing can be custom ordered to measure. | ||||
