100mm X 50mm Green PVC Coated Wire Mesh Fencing Sheets 5mm Diameter
PVC Coated Rolled Top Fencing Welded Wire Mesh Panel 100mm X 50mm Opening 5mm Wire Diameter
Roll top mesh panels, post, and fastener consist the roll top mesh fence system. The post is manufacturer by 60 mm × 60 mm × 2.5 mm square hollow sections or 80 mm × 60 mm × 2.5 mm rectangle hollow sections and fitted with M8 threaded inserts for securing panels, posts come inclusive of top caps.

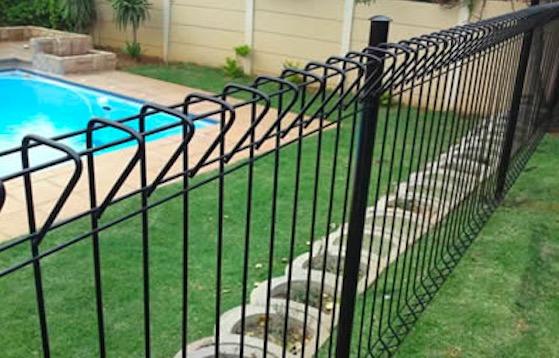

This type of security fencing has the benefits of aesthetic appearance, high rigidity, excellent through vision, wide range of color, and suitable where safety is a consideration. Top round roll fencing for pool is also offered by us, please see the right picture.
Specification
- Mesh Pattern 50 mm × 100 mm, 50 mm × 150 mm or 50 mm × 200 mm, upto 50 mm × 700 mm resistance welded at each intersection.
- Wire diameter: 5 mm.
- Panels width 2500 mm, 3000 mm.
- Heights 900, 1200, 1500, 1800 mm.
- Surface Anti-corrosion treatment: galvanized and polyester coated (Min. 100 micron) in Green, white, red and Black color.
- Panels are flush edged all round, with radiused corners to the 50 mm wide beam profiles. Post centers at approximately 3.025 m.
- Posts are polyester coated with a galvanized substrate.
- In order to achieve fence heights over 1.8 m the panels are designed for multi-lift erection, one or more panels placed above the bottom panel.
| Fence Height | Panel Size-1 H × W | Panel Size-2 H × W | Inter clips | Corner clips |
|---|---|---|---|---|
| 900 mm | 900 mm × 2500 mm | 900 mm × 3000 mm | 3 | 6 |
| 1200 mm | 1200 mm × 2500 mm | 1200 mm × 3000 mm | 4 | 8 |
| 1500 mm | 1500 mm × 2500 mm | 1500 mm × 3000 mm | 4 | 8 |
| 1800 mm | 1800 mm × 2500 mm | 1800 mm × 3000 mm | 5 | 10 |
| 2000 mm | 2000 mm × 2500 mm | 2000 mm × 3000 mm | 6 | 12 |
| 2400 mm | 2 × 1200 × 2500 mm | 2 × 1200 × 3000 mm | 7 | 14 |
Package
Our tenet is Prestinge First, Quality First,Efficiency First and Service First.
All inquires will be replied within 8 hours
High Quality, Reasonable prices, prompt delivery, perfect after-sales services.
Quality Quarantee:
A. All goods strictly inspected during production.
B. All products must be checked strictly before packing.
C. Every consignment must be re-inspected before shipment.
D. You are more than welcomed to my factory to inspect the goods at any time. Payment made via TT, LC, Western Union or DP.
Shipment:
A. Small and light and valuable goods will be sent by DHL, TNT, UPS, FED by airplane.
B. Large and heavy goods will be shipped by LCL, FCL or bulk vessel.
