0.45mm Thickness Metal Hy Rib Formwork Galvanized 100mm Distance

Rib Lath Galvanized Sheet For Plaster Base Reinforcement 0.45mm Thickness 600mm x 2500mm Rib Distance 100mm

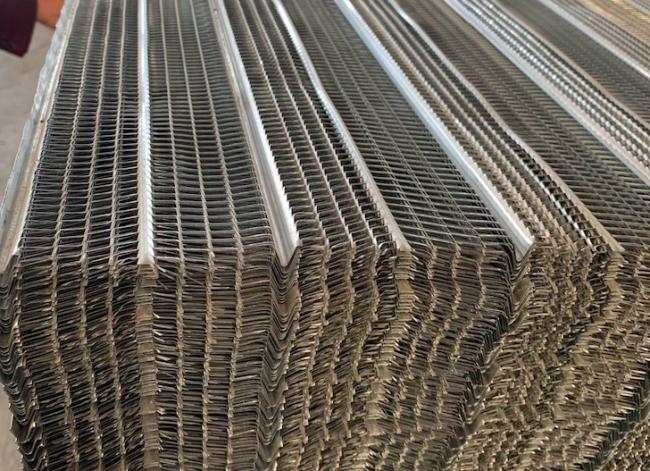

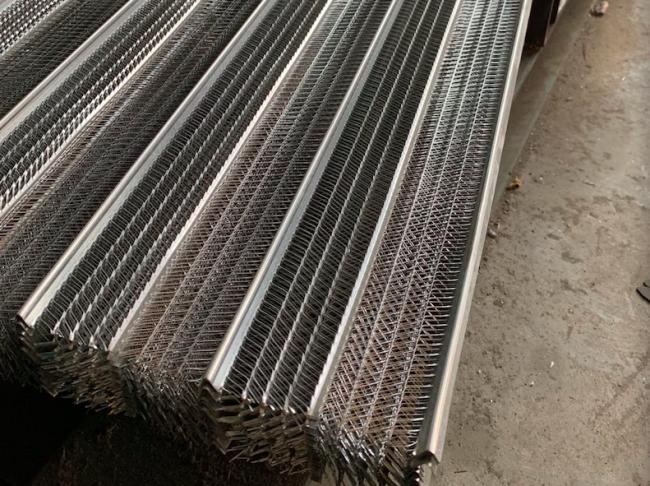

Ribbed Lath is a versatile metal lath stiffened by the longitudinal ribs. It has V ribs and greater tensile strength offering excellent plaster base and reinforcement for all types of walls, ceilings and fireproofing of steel beam, and columns. Ribbed lath is ideal for providing a high degree key of mechanical bonding with plaster or render.

Features

• It is easy to cut and form to ornamental plaster work.
• It provides ample keying for scratch coat.
• It is commonly used for plaster machine application.
• It gives a uniform coat depth for large area.

Applications of interior wall galvanized expanded rib lath

1. High and low-rise residential light compartments, firewalls;
2. Construct a partition, a compartment;
3. the floor of the building, the partition wall;
4. Permanent interior and exterior walls and walls of permanent buildings;
5. the basement moisture-proof duplex wall.
6. Work seams with structural combination;
7. Tunnels, sewers, and wall works;
8. cutting foundation, dock, retaining wall;
9. flat and arched floor;
10. Nuclear power plant, storage tank and other arc-shaped structures;
11. Special projects such as landscaping sculptures;
12. Slope protection, earth embankment and other projects.

Installation

General

• Rib Lath must be fixed with the apexes of the ribs in contact with the support or the backing.
• Rib Lath should be lapped at the sides wire tied at intervals not exceeding 150mm.
• At the ends of the sheets, the Rib Lath should be overlapped with at least 100mm (4”).

Ceilings

• For steel beams, wire ties are needed.
• For timber joists, the rib lath can be secured by fixing nails through the rib.
• For concrete beams, it is recommended to cast a timber-nailing strip to accept nails.

Partitions

• Nails or wire ties to secure the rib lath.

​​


Manufacture Process & Sepcification
Hot dipped galvanized metal sheet is processed by perforating and expanding, to be made into rib lath metal sheet.

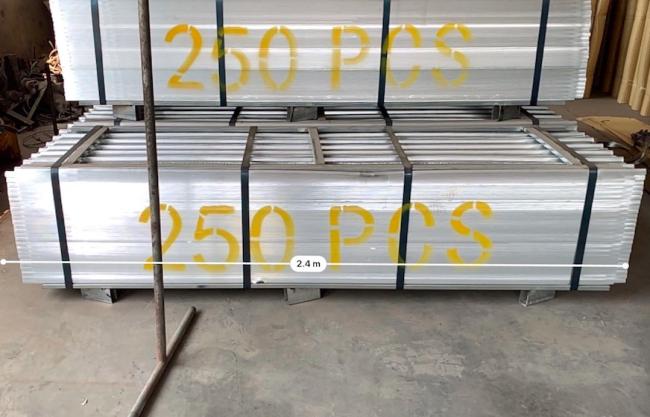

Package

With pallets, each pallet quantity according to request.
