Small Hole Expanded Metal Sheet Mesh 0.5mm Thickness 2.5 X 4.5mm Aluminium
Aluminium Small hole Expanded Metal Mesh Roll 0.5mm Thickness 2.5mm X 4.5mm Opening
Expanded Aluminium Steel Sheet for Grain Screening. Specially designed diamond opening expanded metal mesh for grains. Fine mesh and coarse mesh types are both supplied.
The grain screen is about 515 LF & an additional of 2 light screen gates 16 LF each. The sheet panel size is 8' w X 10' high & fine grain metal mesh is attached to coarse grain metal mesh behind.
Material:low carbon steel plate,Aluminum plate,copper plate,stainless steel plate,aluminum-magnesium alloy sheet,steel plate,nickel sheet etc

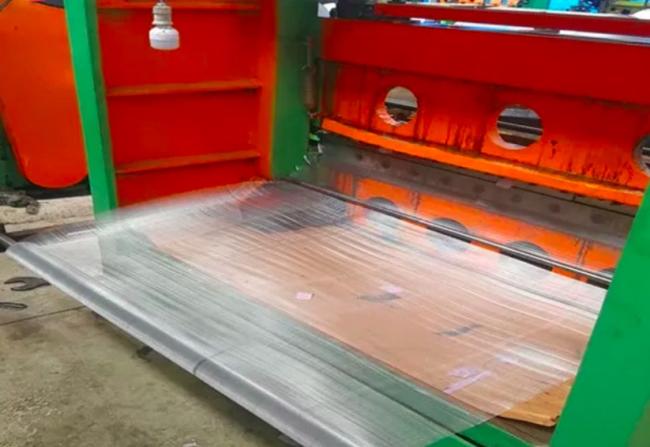

Processing:perforating and stamping the metal sheets
Surface treatment: PVC coated,hot dipped galvanized,electro galvanized,plastic coated
Expanded metal is often referred to as diamond punched, stretched metal or security mesh. Due to its method of manufacture, expanded metal is one of the most economical steel mesh, or grating material, on the market.
The strength of expanded metal runs along the long dimension, not the short dimension. Sheets of expanded generally come in 4’ short dimension and 8’ long dimension. The long dimension is approximately double that of the short dimension. Expanded metal open area percentage typically falls between 60% to 80%.
This product is ideal for security, decoration or traction applications.
Specification

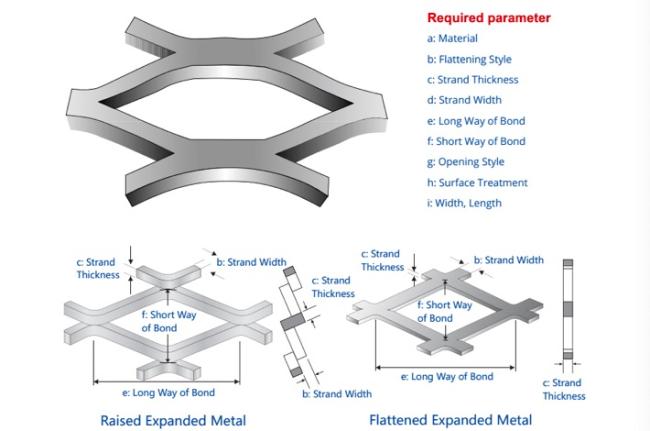

| Thickness | SWD | LWD | wire stems width | Width | Length | Weight |
| (mm) | (mm) | (mm) | (mm) | (m) | (m) | (kg/m2) |
| 0.5 | 2.5 | 4.5 | 0.5 | 0.5 | 1 | 1.8 |
| 0.5 | 10 | 25 | 0.5 | 0.6 | 2 | 0.73 |
| 0.6 | 10 | 25 | 1 | 0.6 | 2 | 1 |
| 0.8 | 10 | 25 | 1 | 0.6 | 2 | 1.25 |
| 1 | 10 | 25 | 1.1 | 0.6 | 2 | 1.77 |
| 1 | 15 | 40 | 1.5 | 2 | 4 | 1.85 |
