10 inch Length Metal Safety Grating 9 Gauge Diamond Stair Treads 3mm Thickness

These heavy duty products offer the advantage of regular diamond safety grating, but are designed for applications of greater load and/or longer span. Basic design is the same, but diamond openings are larger and metal is thicker. Heavy duty grating products are available in many of the same configurations, materials and finishes as regular diamond grip safety grating.

Heavy duty safety diamond grating products include: planks, walkways and stair treads.

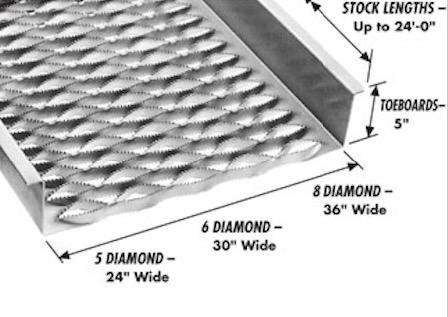

• One-of-a-kind plank grating sporting a hefty 24 foot clear span capability
• Offers the advantages of regular DIAMOND GRIP plus the capabilities for greater loads and/or longer spans

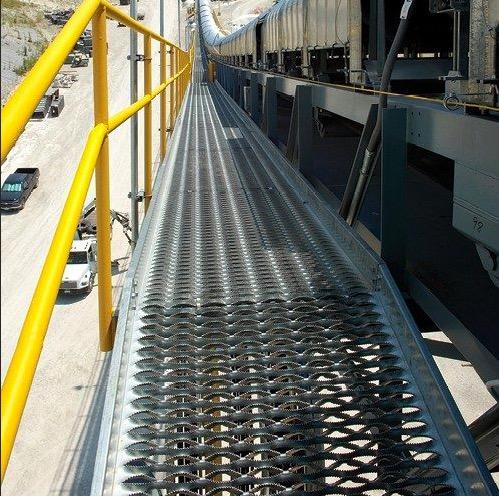

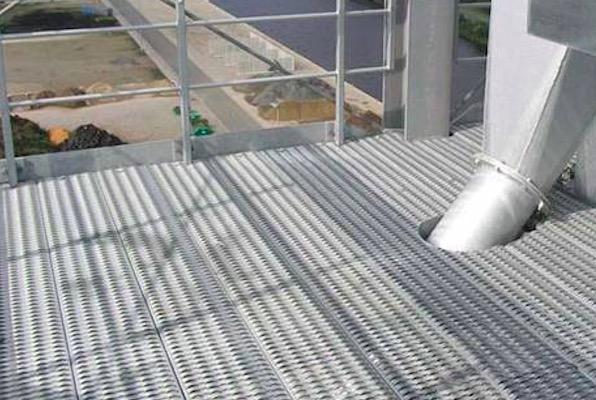

• Ideal for process plants, refineries, grain elevators, conveyor walkways, under-bridge inspection walkways, papermills, etc.
• Competitive against Bar Grating
• Standard Lengths – 10’ & 12’
• Available in 24-foot spans
• Less support structure means labor savings
• Walkways also available in 20’ & 24’
• 9 Ga. & 11 Ga. available upon request
• Hot Dip Galvanized after fabrication is available upon request
• Special fabrication, cutting or specialty configurations available upon request

High load capacity, long life:

High strength-to-weight performance is achieved through section depth and integral side-channel design. Bridged struts form a rigid, strong plank surface that carries large loads with minimum deflection. There are no rivets, fabricated joints or pressure joints to loosen or break.

Safety at all levels:

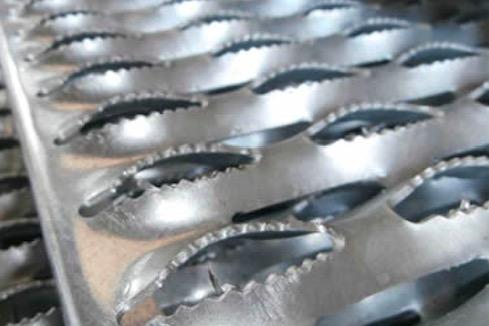

Heavy Duty Diamond Grip safety grating’s serrated surfaces grip soles securely in all directions. These non-slip sheared edges are ideal for both indoor and outdoor locations — wherever mud, ice, snow, oil and detergents can create hazardous walking conditions.

Application versatility:
A variety of standard plank widths and channel heights can be combined with numerous special-order items to meet almost any application requirement. Special sizes and fabricating services are available for unusual requirements. Heavy duty safety grating products may be painted, hot-dip galvanized after fabrication, anodized, plated, plastic-coated or specially finished in other ways to fit service requirements. Finish coatings are economically applied since all surfaces are accessible to brush or spray.


Fast, simple Installation:
Diamond grip safety grating is light and simply installed. Often, regular maintenance personnel can do the job. Sections are easily field-cut, at virtually any angle, and field-adapted; connections are rapidly made with bolts, clamps or welding. Disassembly, when needed, can be just as rapid.


Tested performance:
Statistics show falls as the second highest cause of lost-time injuries in industry. Yet tests prove that falls can be reduced by the safe surface of heavy duty safety grating, planks, walkways and stair treads. And fewer accidents mean lower workmen’s compensation insurance costs, to save the cost of safety grating many times over. Independent laboratory tests prove that heavy duty diamond grip safety grating exceeds Federal Specification RR-G-1602D requirements for slip resistance. Five shoe soles were tested, in longitudinal, transverse and diagonal directions; under five conditions: dry, greasy, muddy, soapy and icy. Heavy Duty safety grating tested more slip-resistant than other gratings (depending upon the condition).
