0.21mm Thickness Plaster Reinforcement Mesh 90mm Distance High Rib Roofing Sheet

0.21mm Thickness 450mm x 2200mm Rib Distance 90mm Rib Lath Permanent Roof Sheet

High Ribbed Formwork is an expanded metal sheet product, specifically developed for use as permanent formwork to concrete. The profile of the open mesh, in combination with the High Ribbed Formwork tangs, allows the development of dense concrete nodules and indents on the face, forming an enhanced mechanical key for the second phase pour. The resulting surface is suitable for a rendered or tiled finish.

Specification

Installation

General

• Rib Lath must be fixed with the apexes of the ribs in contact with the support or the backing.
• Rib Lath should be lapped at the sides wire tied at intervals not exceeding 150mm.
• At the ends of the sheets, the Rib Lath should be overlapped with at least 100mm (4”).

Ceilings

• For steel beams, wire ties are needed.
• For timber joists, the rib lath can be secured by fixing nails through the rib.
• For concrete beams, it is recommended to cast a timber-nailing strip to accept nails.

Partitions

• Nails or wire ties to secure the rib lath.​

Manufacture

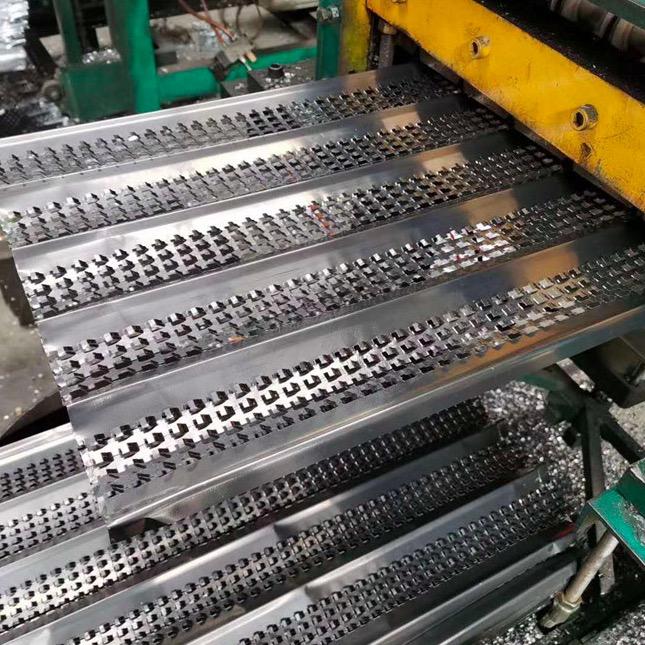

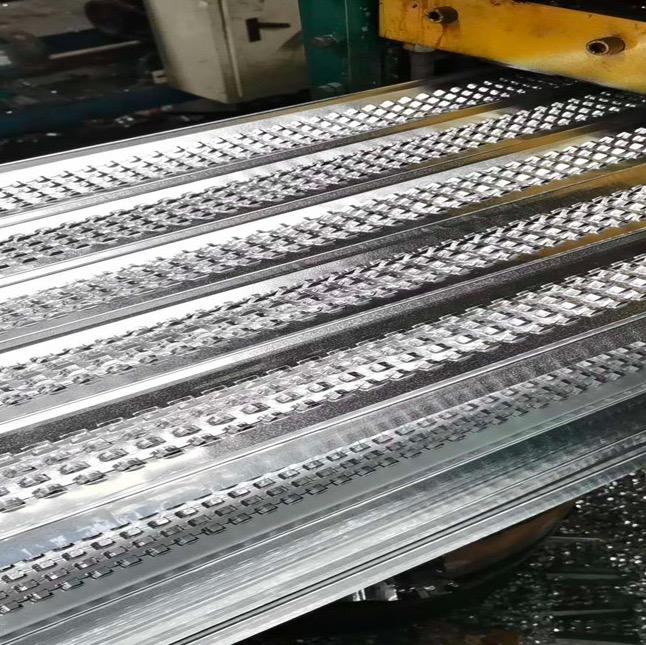

Hot dipped galvanized metal sheet is processed by perforating and expanding, to be made into rib lath metal sheet.

Details

Our tenet is Prestinge First, Quality First,Efficiency First and Service First.
All inquires will be replied within 8 hours
High Quality, Reasonable prices, prompt delivery, perfect after-sales services.


Quality Quarantee:
A. All goods strictly inspected during production.
B. All products must be checked strictly before packing.
C. Every consignment must be re-inspected before shipment.
D. You are more than welcomed to my factory to inspect the goods at any time. Payment made via TT, LC, Western Union or DP.


Shipment:
A. Small and light and valuable goods will be sent by DHL, TNT, UPS, FED by airplane.
B. Large and heavy goods will be shipped by LCL, FCL or bulk vessel.
