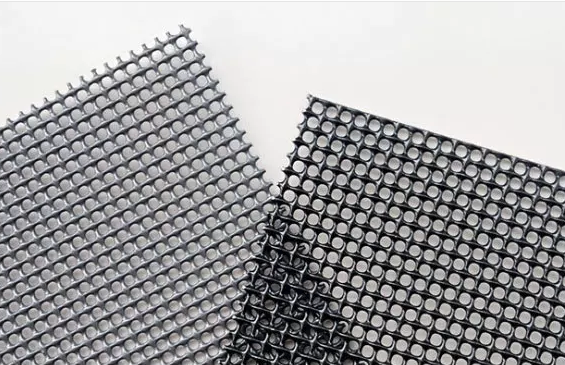

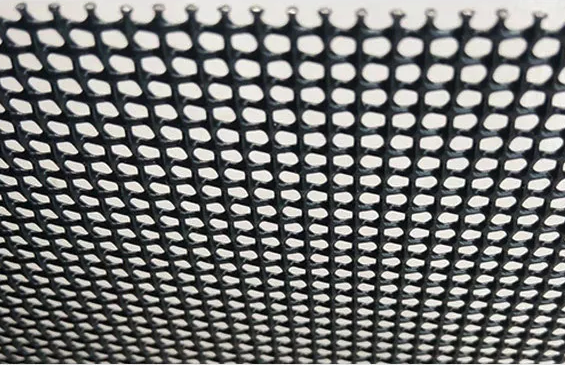

316 10 Mesh Stainless Steel Mosquito Wire Mesh Thickness 0.9mm
Stainless steel 316 Akzo Nobel Powder Security mesh screen window door 10mesh Wire thickness 0.9mm

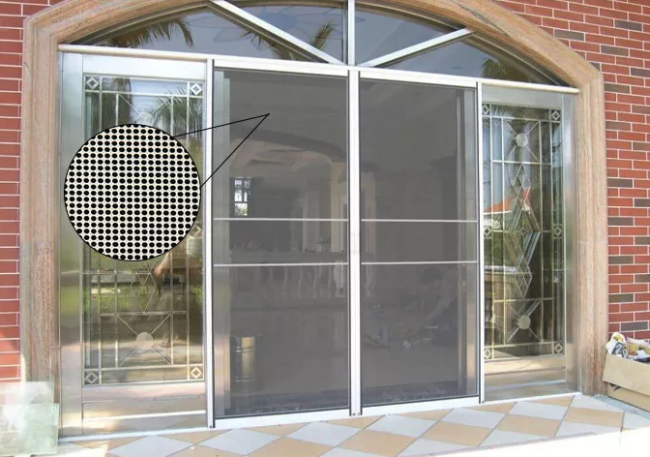

Security window insect screen is a high-tensile stainless steel mesh.
It is used to secure doors, windows and outdoor areas from intruders and insects alike while keep ventilation at the same time.
Quick view
Material: SS316 marine grade
Mesh: 10mesh x 0.9mm wire
Tensile: Over than 900N (Mpa)
Powder: Akzo Nobel powder
Color: Black
Testing: Pass all Australia standard test, including Knife Shear Test, Bushfire testing, etc. (Check below for more details)
Shet size: 750 x 2000mm / 2400mm / 3000mm / 3500mm
900 x 2000mm / 2400mm / 3000mm / 3500mm
1000 x 2000mm / 2400mm / 3000mm / 3500mm
1200 x 2000mm / 2400mm / 3000mm / 3500mm
1500 x 2000mm / 2400mm / 3000mm / 3500mm
Specification
| Material | Mesh Size x Wire Dia. | Hole Size | Sheet Size | Quality standard |
|
High tensile 316 Marine grade
Akzo Nobel powder coating
Color: black only |
10mesh×0.9mm | 1.6mm |
Width:
Length:
|
Passed all Australian standard and world wide standard related with security mesh screens Knife Shear Test – AS5039 - AS5041 Dynamic Impact Test – AS5039 - AS5041 Anti-Jemmy Test – AS5039 - AS5041 Pull Test – AS5039 - AS5041 Cyclone Rated – AS1170.2 Fire Attenuation – AS1530.4 Swimming Pool Safety – AS1829.1.1993 3006 Hours Salt Spray Test 534 Hours UV Test |
|
316 Marine grade stainless steel wire
Akzo Nobel powder coating
Color: black only |
11mesh×0.8mm | 1.5mm |
Width:
Length:
|
Passed all Australian standard and world wide standard (except Knife Share Test) related with |
Quality Control
- Sheets are flat (no any wave on the surface)
- Square and clear hole without burs
- Exact hole size and wire thickness
- No obvious tiger lines on the surface
- No color difference on the surface
- No sundries on the surface
- No folded wires on edges
- Tolerance of diagonal length is within +/-5mm
- Edge cutted along one wire
