90rows/Min Dia 2.6mm Iron Wire Making Machine , PLC Fence Mesh Welding Machine
Automatic Iron Net Wire Mesh Welding Machine
1. Product description

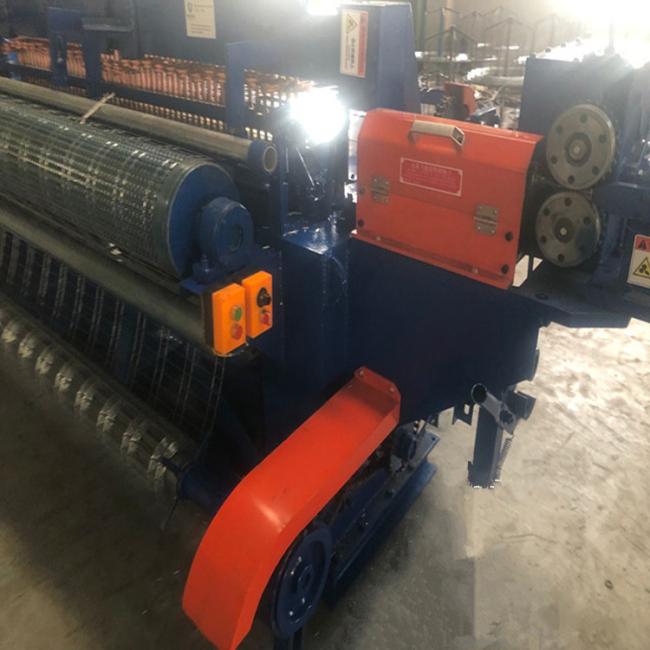

Automatic iron net wire mesh welding machine is used for making wire mesh. Both line wire coils and cross wire coils are fed automatically,the raw material is applicable for common low carbon steel wires or galvanized wires.This machine has the advantages such as reasonable structure design,low noise,working stably,easy to operate and so on.The mesh size is rather precise,the width and length for welded mesh can be set according to the practical needs.
2. Technical parameter
| Model | Mesh width | Minimum mesh size (inch) | Wire diameter(mm) | Welding speed (rows/min) | Roll mesh length (m) | Other available mesh size (inch) |
| R- DHW2 | 2m | 1/2x1/2 | 0.45-0.85 | 90-120 | 130 | 1/2x1, 1x1/2, 1x1, 2x2 |
| R- DHW2 | 2m | 1/2x1/2 | 0.6-1.3 | 90-120 | 110 | 1/2x1, 1x1/2, 1x1, 2x2 |
| R- DHW2 | 2m | 1/2x1/2 | 0.8-1.6 | 80-90 | 100 | 1/2x1, 1x1/2, 1x1, 2x2 |
| R- DHW2 | 2m | 1x1 | 0.45-0.85 | 90-120 | 130 | 1x2, 2x1, 2x2, 2x4 |
| R- DHW2 | 2m | 1x1 | 0.6-1.3 | 90-110 | 110 | 1x2, 2x1, 2x2, 2x4 |
| R- DHW2 | 2m | 1x1 | 0.8-1.6 |
90-110 |
100 | 1x2, 2x1, 2x2, 2x4 |
| R- DHW2 | 2m | 1x1 | 1.4-2.6 | 80-90 | 80 | 1x2, 2x1, 2x2, 2x4 |
3. Application area
The automatic iron net wire mesh can be widely used in algriculture. The machine produce the wire mesh. The people can use the wire mesh to make animal cages. Such as: chicken cage, dog cage, rabbit cage, etc. It is easy operation and economical.
4. Advantages
a. The welding time and welding current can be adjusted on the control panel to guarantee solid welding.
b. Sturdy structure and world famous electric components are used like Simens, Schneider, Delta etc.
c. Water cooling transformer is used for hot area.
d. We are the birthplace of wire mesh welding machine, representing the state of art technology,and is the first to use variable-frequency drive control.
e. Mesh pulling system adopts servo motor back and forward to ensure the mesh opening accurately and can be adjusted freely within a certain range.
