6ft Width Subcontrol Welded Mesh Making Machine , EDP Chicken Mesh Making Machine

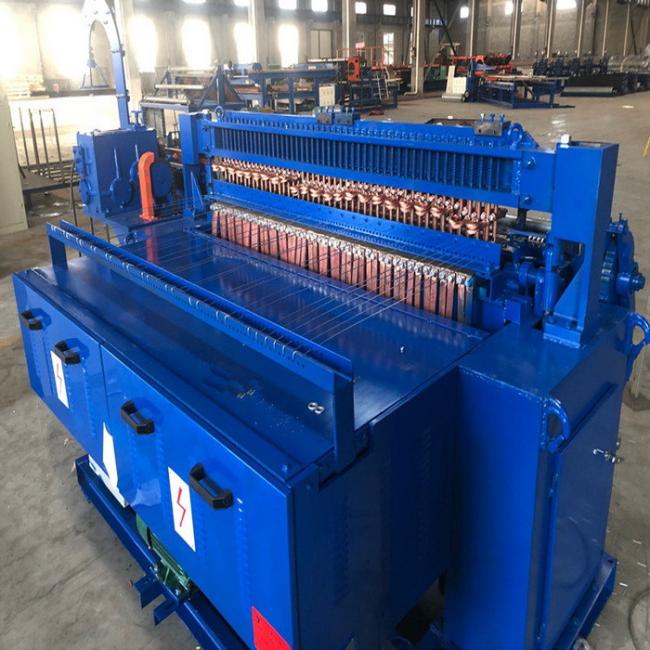

Automatic Six Feet Width Wire Mesh Welding Machine
1. Product description
Automatic six feet width wire mesh welding machine is used for making wire mesh. The machine adopts synchronous control technique, welding time and sub-control welding is composed of PLC program system. Touch screen input panel forms make operation more intellectualized and reasonable. New and high efficiency of welding machine transformer expands welding wire diameter scope. Easy handling and high flexibility and high working efficiency achieve a perfect welded wire mesh machine.
2. Technical parameter
| Model | Mesh width | Minimum mesh size (inch) | Wire diameter(mm) | Welding speed (rows/min) | Roll mesh length (m) | Other available mesh size (inch) |
| R- DHW | 6 feet | 1/2x1/2 | 0.45-0.85 | 90-120 | 130 | 1/2x1, 1x1/2, 1x1, 2x2 |
| R- DHW | 6 feet | 1/2x1/2 | 0.6-1.3 | 90-120 | 110 | 1/2x1, 1x1/2, 1x1, 2x2 |
| R- DHW | 6 feet | 1/2x1/2 | 0.8-1.6 | 80-90 | 100 | 1/2x1, 1x1/2, 1x1, 2x2 |
| R- DHW | 6 feet | 1x1 | 0.45-0.85 | 90-120 | 130 | 1x2, 2x1, 2x2, 2x4 |
| R- DHW | 6 feet | 1x1 | 0.6-1.3 | 90-110 | 110 | 1x2, 2x1, 2x2, 2x4 |
| R- DHW | 6 feet | 1x1 | 0.8-1.6 |
90-110 |
100 | 1x2, 2x1, 2x2, 2x4 |
| R- DHW | 6 feet | 1x1 | 1.4-2.6 | 80-90 | 80 | 1x2, 2x1, 2x2, 2x4 |
3. Application area
The automatic six feet width wire mesh welding machine can be widely used in agriculture. Steel welded wire mesh production for concrete reinforcement, panels in construction and security wire mesh fences, in a small area and noiseless. The welded wire mesh panels are highly demanded and consumed in construction, either for concrete reinforcement or panels in walls, floors, roofs and other applications in constructions and building.
4. Advantages
a. Design flexibility for the plant.
b. Increased cost-effectiveness and reduced staffing requirements.
c. Ease of operation and good EDP networking.
d. Spooling machine, repair table, we use good material to guarantee it is sturdy and stable, easy to operate.
e. We are engaged in wire mesh welding machine for more than 20 years, providing you with the most professional knowledge and the most
suitable machine.
