Husbandry 1m Width Weld Mesh Manufacturing Machine BI GI Wire

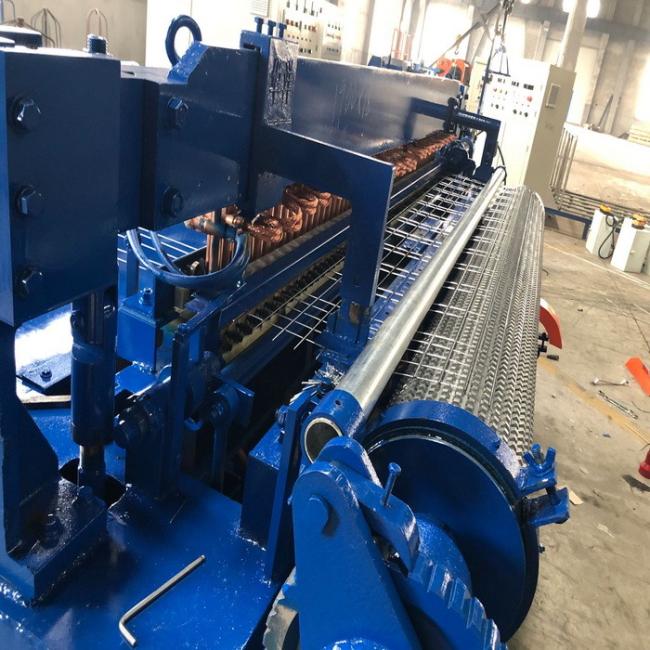

Automatic One Meter Width Drive Shaft Welding Machine
1. Product description
Automatic one meter width drive shaft welding machine is used for making wire mesh. The feature of the machine is saving materials and high capacity. The button switches to start and stop machine easily. The automatic one meter width drive shaft welding machine can be quick and easy roll extraction from the machine.
2. Technical parameter
| Model | Mesh width | Minimum mesh size (inch) | Wire diameter(mm) | Welding speed (rows/min) | Roll mesh length (m) | Other available mesh size (inch) |
| R- DHW | 1m | 1/2x1/2 | 0.45-0.85 | 90-120 | 130 | 1/2x1, 1x1/2, 1x1, 2x2 |
| R- DHW | 1m | 1/2x1/2 | 0.6-1.3 | 90-120 | 110 | 1/2x1, 1x1/2, 1x1, 2x2 |
| R- DHW | 1m | 1/2x1/2 | 0.8-1.6 | 80-90 | 100 | 1/2x1, 1x1/2, 1x1, 2x2 |
| R- DHW | 1m | 1x1 | 0.45-0.85 | 90-120 | 130 | 1x2, 2x1, 2x2, 2x4 |
| R- DHW | 1m | 1x1 | 0.6-1.3 | 90-110 | 110 | 1x2, 2x1, 2x2, 2x4 |
| R- DHW | 1m | 1x1 | 0.8-1.6 |
90-110 |
100 | 1x2, 2x1, 2x2, 2x4 |
| R- DHW | 1m | 1x1 | 1.4-2.6 | 80-90 | 80 | 1x2, 2x1, 2x2, 2x4 |
3. Application area
The automatic one meter width drive shaft welding machine can be widely used in agriculture. Prevention for road, railway, airport, residence district, seaport, garden, feeding and husbandry. The machine produce the wire mesh. The people can use the wire mesh to make animal cages. Such as: chicken cage, dog cage, rabbit cage, etc. It is easy operation and economical.
4. Advantages
a. Patent design for process of thick hard black wire.ne time two or three mesh rolls can be produced.
b. The welding speed is fast and it is easy to learn and operate. Only two operators are enough.
c. Finished products are both roll mesh and panel mesh ok.
d. Spooling machine, repair table, we use good material to guarantee it is sturdy and stable, easy to operate.
e. We are engaged in wire mesh welding machine for more than 20 years, providing you with the most professional knowledge and the most
suitable machine.
