50A Husbandry Weld Mesh Manufacturing Machine Low Carbon Steel 2000mm Width
Automatic Low Carbon Steel Diamond Mesh Wire Making Machine
1. Product description
Automatic low carbon steel diamond mesh wire making machine is used for making wire mesh. low carbon steel diamond mesh wire making machine production line is based on customer requirements and many years of production experience to upgrade and reform the entire production line.Its greatest advantages are high productivity,high automatic and simple operation.Normal operation of the machine requires only one person to operate, the wire mesh panel products are smooth and beautiful,and the automatic stacking is neat. Save a lot of labour and space.
2. Technical parameter
| Model | HY-DHW-1500 | HY-DHW-2000 | HY-DHW-2500 | HY-DHW-2800 | HY-DHW-3300 |
| Weld width(mm) | 1500 | 2000 | 2500 | 2800 | 3300 |
| Meshi trip(mm) | Single trip 3000 and no limit on return | ||||
| Std trans.spacing | >=25mm-stepless adjustable | ||||
| Std long.spacing | >=50mm, and progressive increase by 50 | >=100mm, and increase by 100 | |||
| Std weld spots | 31 | 41 | 51 | 27 | 32 |
| Wire diameter(mm) | 3.0-6.0 | 3.0-6.0 | 3.0-6.0 | 5.0-12.0 | 5.0-12.0 |
| Weld speed(times/min | 50-70 | 40-60 | 40-60 | 40-60 | 40-60 |
| Trans material | Straight bar/rod | Straight bar | |||
| Long material | Straight bar/rod | ||||

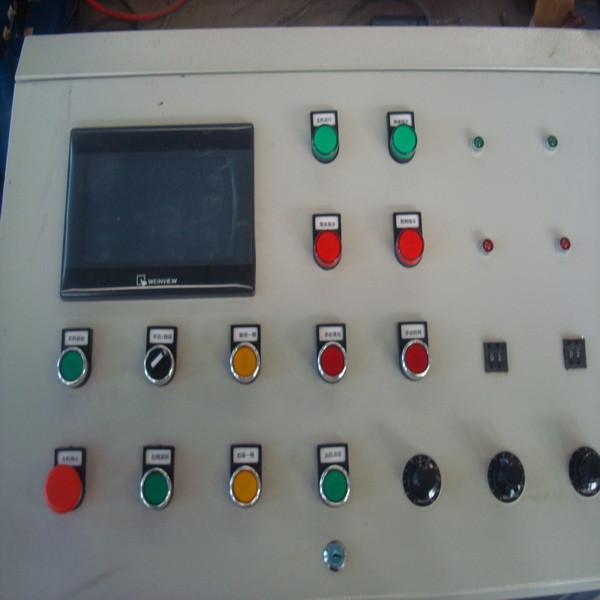

| Control mode | PLC programming servo motor stepper | ||||
| Mesh diagonal error | <=2 | ||||
| Mesh overall error | <=2 | ||||
| Air pressure | >=0.7 | ||||
| Weld material | Cold drawn wire, galvanized wire, cold rolled ribbed steel | ||||
3. Application area
The automatic low carbon steel diamond mesh wire making machine can be used in highway ,railway and various function of protection. For construction which used for basis of high building,roof mesh ,floor mesh. It is also widely used in agriculture and poultry mesh, farming mesh and so on.
a. Easy handling, improve production efficiency and reduce labor costs.
b. To produce mesh by coiled wire continuously.
c. The greatest advantage is possible to adjust the distance of line wires at random on the same mesh panel.
d. Reinforced length delivery process automatic control.
e. The machine line automatic degree can be according to request. For the economical type, line wire and cross wire are pre straightened and cut to length. We are capable to produce fully automatic machine.
