3.5m Width Cultivating Fishery Wire Welding Machinery , 51pcs Pin Diamond Fence Making Machine

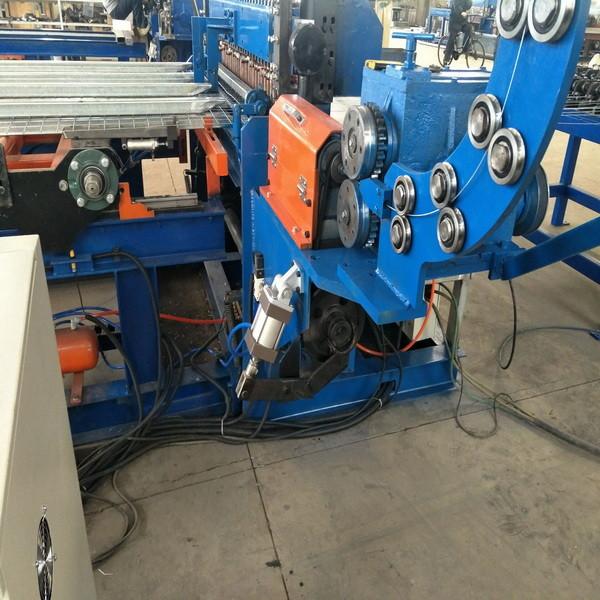

Automatic 3.5 Meters Width Diamond Mesh Wire Making Machine
1. Product description
Automatic 3.5 meters width diamond mesh wire making machine is used for making wire mesh. The welded mesh panel welding equipment can weld wire diameter from 4mm to 9mm. The welding range is very big. Each set of welding transformers is controlled by a separate microcomputer, which can be used for multiple welding under pressure at one time. The biggest advantage of this control is that more than 30 holes of different sizes can be found on the same mesh.
2. Technical parameter
| Model | HY-DHW-1500 | HY-DHW-2000 | HY-DHW-2500 | HY-DHW-2800 | HY-DHW-3300 |
| Weld width(mm) | 1500 | 2000 | 2500 | 2800 | 3300 |
| Meshi trip(mm) | Single trip 3000 and no limit on return | ||||
| Std trans.spacing | >=25mm-stepless adjustable | ||||
| Std long.spacing | >=50mm, and progressive increase by 50 | >=100mm, and increase by 100 | |||
| Std weld spots | 31 | 41 | 51 | 27 | 32 |
| Wire diameter(mm) | 3.0-6.0 | 3.0-6.0 | 3.0-6.0 | 5.0-12.0 | 5.0-12.0 |
| Weld speed(times/min | 50-70 | 40-60 | 40-60 | 40-60 | 40-60 |
| Trans material | Straight bar/rod | Straight bar | |||
| Long material | Straight bar/rod | ||||
| Control mode | PLC programming servo motor stepper | ||||
| Mesh diagonal error | <=2 | ||||
| Mesh overall error | <=2 | ||||
| Air pressure | >=0.7 | ||||
| Weld material | Cold drawn wire, galvanized wire, cold rolled ribbed steel | ||||
3. Application area
The automatic 3.5 meters width diamond mesh wire making machine can be construction,protective screening mesh and mine timbering.
4. Advantages
a. All the pneumatic components used are with world famous brand. For European customers, it is very easy to get the parts locally.
b. It can welded different mesh size on the one same mesh panel.
c. The greatest advantage is possible to adjust the distance of line wires at random on the same mesh panel.
d. This machine is compact in structure, easily to operate and with fully functions. It has lower cost, high efficiency, reliable working, low energy consumption advantages.
e. Welding part can easily switch, which greatly improves the service life of machinery, maximum reduce the cost.
