Poultry Cage Straightening Cut Stationary Spot Welding Machine Aquaculture
Automatic Black Wire Pneumatic Spot Welding Machine
1. Product description

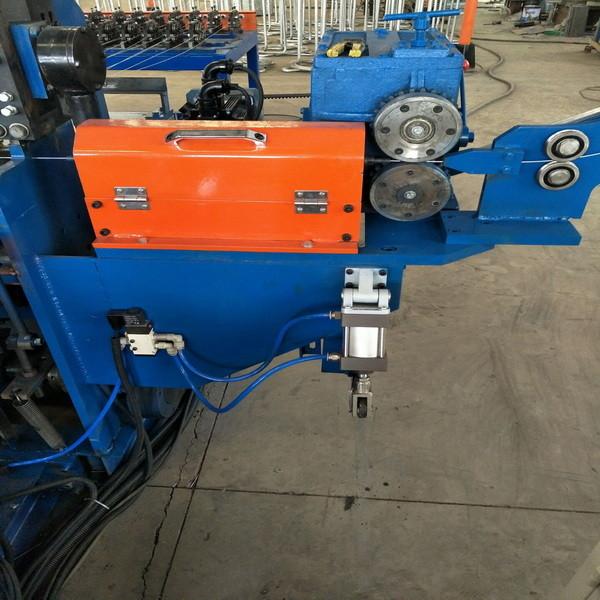

Automatic black wire pneumatic spot welding machine is used for making wire mesh. The machine equipped with automatic straightening cutting device. This device straighten and cut weft wire into fixed length. Then worker put those weft wires into hopper, the weft wires will fall automatically. Coil wires are put on the wire tray. Firstly, let coil wires through straightening device,this device will make the coil wire become straight. Then let coil wire through into warp hole, finally the entire welding process is automatic.
2. Technical parameter
| Model | HY-DHW-1500 | HY-DHW-2000 | HY-DHW-2500 | HY-DHW-2800 | HY-DHW-3300 |
| Weld width(mm) | 1500 | 2000 | 2500 | 2800 | 3300 |
| Meshi trip(mm) | Single trip 3000 and no limit on return | ||||
| Std trans.spacing | >=25mm-stepless adjustable | ||||
| Std long.spacing | >=50mm, and progressive increase by 50 | >=100mm, and increase by 100 | |||
| Std weld spots | 31 | 41 | 51 | 27 | 32 |
| Wire diameter(mm) | 3.0-6.0 | 3.0-6.0 | 3.0-6.0 | 5.0-12.0 | 5.0-12.0 |
| Weld speed(times/min | 50-70 | 40-60 | 40-60 | 40-60 | 40-60 |
| Trans material | Straight bar/rod | Straight bar | |||
| Long material | Straight bar/rod | ||||
| Control mode | PLC programming servo motor stepper | ||||
| Mesh diagonal error | <=2 | ||||
| Mesh overall error | <=2 | ||||
| Air pressure | >=0.7 | ||||
| Weld material | Cold drawn wire, galvanized wire, cold rolled ribbed steel | ||||
3. Application area
The automatic black wire pneumatic spot welding machine can be used in widely used for industry, agriculture, aquaculture, construction, transportation, mining, etc. Such as machine protective cover, animal livestock fence, garden fence, fence, protective window, channel poultry cages, egg baskets and office food baskets, basket and decoration.
4. Advantages
a. This line adopt special welding process ,Efficient water cooling system and precision welding control system and high quality copper alloy electrodes with unique appearance.
b. The line wire and the weft wire of wire mesh welding machine are pre-straight and pre-cut.
c. The greatest advantage is possible to adjust the distance of line wires at random on the same mesh panel.
d. Welding part can easily switch, which greatly improves the service life of machinery, maximum reduce the cost.
e. The machine line automatic degree can be according to request. For the economical type, line wire and cross wire are pre straightened and cut to length. We are capable to produce fully automatic machine.
