Huayang Treads Stainless Steel Spot Welder Fence Panel 40rows/Min
Stainless Steel CNC Spot Welding Machine
1. Product description

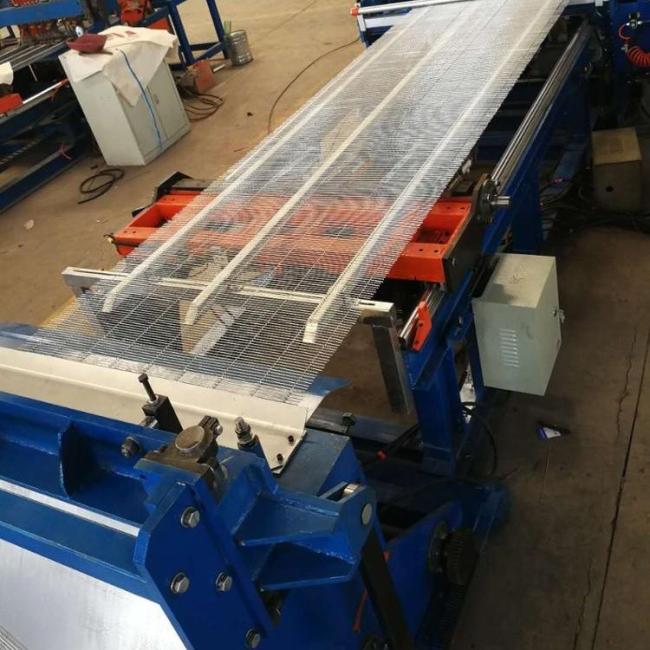

Stainless steel CNC spot welding machine is used for making panel mesh. Automatic wire mesh welding machine production line is based on customer requirements and many years of production experience to upgrade and reform the entire production line.Its greatest advantages are high productivity,high automatic and simple operation.Normal operation of the machine requires only one person to operate, the wire mesh panel products are smooth and beautiful,and the automatic stacking is neat. Save a lot of labour and space.
2. Technical parameter
| Model | HY-DHW-1500 | HY-DHW-2000 | HY-DHW-2500 | HY-DHW-2800 | HY-DHW-3300 |
| Weld width(mm) | 1500 | 2000 | 2500 | 2800 | 3300 |
| Meshi trip(mm) | Single trip 3000 and no limit on return | ||||
| Std trans.spacing | >=25mm-stepless adjustable | ||||
| Std long.spacing | >=50mm, and progressive increase by 50 | >=100mm, and increase by 100 | |||
| Std weld spots | 31 | 41 | 51 | 27 | 32 |
| Wire diameter(mm) | 3.0-6.0 | 3.0-6.0 | 3.0-6.0 | 5.0-12.0 | 5.0-12.0 |
| Weld speed(times/min | 50-70 | 40-60 | 40-60 | 40-60 | 40-60 |
| Trans material | Straight bar/rod | Straight bar | |||
| Long material | Straight bar/rod | ||||
| Control mode | PLC programming servo motor stepper | ||||
| Mesh diagonal error | <=2 | ||||
| Mesh overall error | <=2 | ||||
| Air pressure | >=0.7 | ||||
| Weld material | Cold drawn wire, galvanized wire, cold rolled ribbed steel | ||||
3. Application area
The stainless steel CNC spot welding machine can be used welded wire mesh, or steel mesh include: fencing panels, wire partitions, wire container panels, wire baskets, animal cages, enclosure works, screens, security panels, shelving, signage, stairways/treads, fishing traps and concrete reinforcement.
4. Advantages
a. This line adopt special welding process ,Efficient water cooling system and precision welding control system and high quality copper alloy electrodes with unique appearance.
b. The new wire mesh welding machine added the bear wire net and carry equipment that makes the working more convenience .
c. We can design the welded wire mesh machine as your requirement.
d. Welding part can easily switch, which greatly improves the service life of machinery, maximum reduce the cost.
e. It can welded different mesh size on the one same mesh panel.
