Galvanized Wire Cold Drawn Wire CNC Spot Welder , 380V Wire Spot Welding Machine

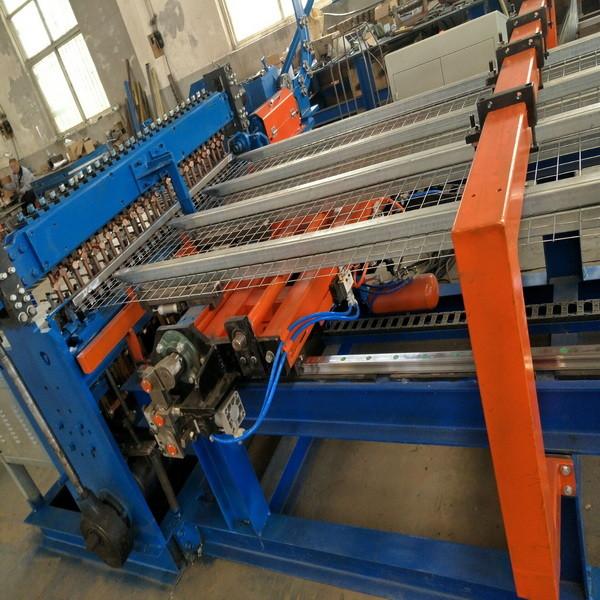

Blue Galvanized Wire CNC Spot Welding Machine
1. Product description
Blue galvanized wire CNC spot welding machine is used for making panel mesh. Fence mesh welding machine is also called fence mesh welding line, security fence machine, anti-climb fence welding machine,and fence panel machine. Reinforcing mesh welding machine, fence mesh welding machine, animal cage welding machine, steel grating welding machine, electric welded wire mesh machine, wedged wire screen welding machine, wire straightening and cutting machine etc.
2. Technical parameter
| Model | HY-DHW-1500 | HY-DHW-2000 | HY-DHW-2500 | HY-DHW-2800 | HY-DHW-3300 |
| Weld width(mm) | 1500 | 2000 | 2500 | 2800 | 3300 |
| Meshi trip(mm) | Single trip 3000 and no limit on return | ||||
| Std trans.spacing | >=25mm-stepless adjustable | ||||
| Std long.spacing | >=50mm, and progressive increase by 50 | >=100mm, and increase by 100 | |||
| Std weld spots | 31 | 41 | 51 | 27 | 32 |
| Wire diameter(mm) | 3.0-6.0 | 3.0-6.0 | 3.0-6.0 | 5.0-12.0 | 5.0-12.0 |
| Weld speed(times/min | 50-70 | 40-60 | 40-60 | 40-60 | 40-60 |
| Trans material | Straight bar/rod | Straight bar | |||
| Long material | Straight bar/rod | ||||
| Control mode | PLC programming servo motor stepper | ||||
| Mesh diagonal error | <=2 | ||||
| Mesh overall error | <=2 | ||||
| Air pressure | >=0.7 | ||||
| Weld material | Cold drawn wire, galvanized wire, cold rolled ribbed steel | ||||
3. Application area
The blue galvanized wire CNC spot welding machine can be used to make fence mesh,road mesh,reinforcing mesh,shelf,explosion-proof wall etc.
4. Advantages
a. To strengthen easy operation of machine, we use proximity switch between upper and lower welding heads, when cross wire doesn’t reach, the machine will stop automatically.
b. The new wire mesh welding machine added the bear wire net and carry equipment that makes the working more convenience .
c. We can design the welded wire mesh machine as your requirement.
d. Cross wire hopper with loading capacity 100kg.
e. It can welded different mesh size on the one same mesh panel.
