Servo Reinforcing CNC Welding Equipment , Wire Dia 3mm Steel Spot Welding Machine

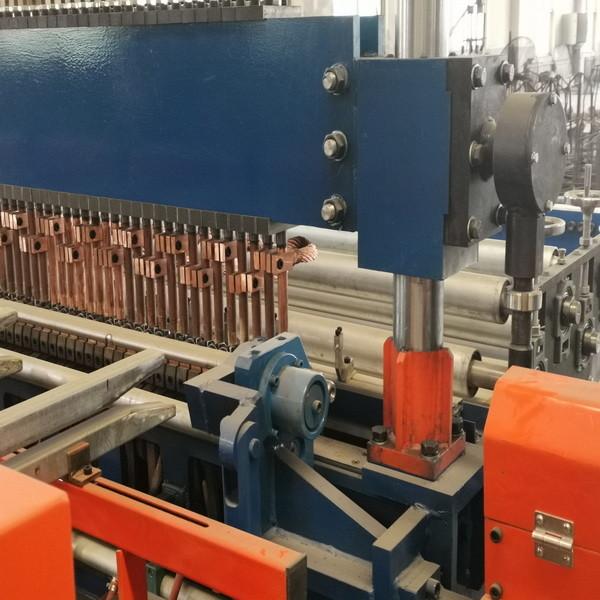

Servo Motor Reinforcing CNC Spot Welding Machine
1. Product description
Servo motor reinforcing CNC spot welding machine is used for making panel mesh. The reinforced mesh machine type 11 is equipment for welding fence mesh and mine timbering mesh. Both the line wire and cross wire are fed from pre-cut wires. The cross wires are fallen automatically, finished mesh is pulled by step motor. The line wires are fed manually, the cross wires falling automatically by step motor, when the wire diameter is 4-8mm, both the welding electrodes and transformer are equipped with water cooling system to prolong the service life.
2. Technical parameter
| Model | HY-DHW-1500 | HY-DHW-2000 | HY-DHW-2500 | HY-DHW-2800 | HY-DHW-3300 |
| Weld width(mm) | 1500 | 2000 | 2500 | 2800 | 3300 |
| Meshi trip(mm) | Single trip 3000 and no limit on return | ||||
| Std trans.spacing | >=25mm-stepless adjustable | ||||
| Std long.spacing | >=50mm, and progressive increase by 50 | >=100mm, and increase by 100 | |||
| Std weld spots | 31 | 41 | 51 | 27 | 32 |
| Wire diameter(mm) | 3.0-6.0 | 3.0-6.0 | 3.0-6.0 | 5.0-12.0 | 5.0-12.0 |
| Weld speed(times/min | 50-70 | 40-60 | 40-60 | 40-60 | 40-60 |
| Trans material | Straight bar/rod | Straight bar | |||
| Long material | Straight bar/rod | ||||
| Control mode | PLC programming servo motor stepper | ||||
| Mesh diagonal error | <=2 | ||||
| Mesh overall error | <=2 | ||||
| Air pressure | >=0.7 | ||||
| Weld material | Cold drawn wire, galvanized wire, cold rolled ribbed steel | ||||
3. Application area
The servo motor reinforcing CNC spot welding machine can be used widely used in construction, hollow wall reinforcement, increased elasticity, prevent cracks in the wall, it is a good building materials. Is used for the foundation, wall, etc.
4. Advantages
a. We choose well known brand from home and abroad to ensure the entirety steel property to avoid any transformation, transposition happen during transportation, installation process as to affect the precision of the machine.
b. The weft wire of wire mesh welding machine feeding from the multi hopper which capacity is more over ten times than the traditional hopper.
c. Humanized operation interface, easy to operate and master.
d. Welding part can easily switch, which greatly improves the service life of machinery, maximum reduce the cost.
e. Converter, motor: Chinese famous brand
