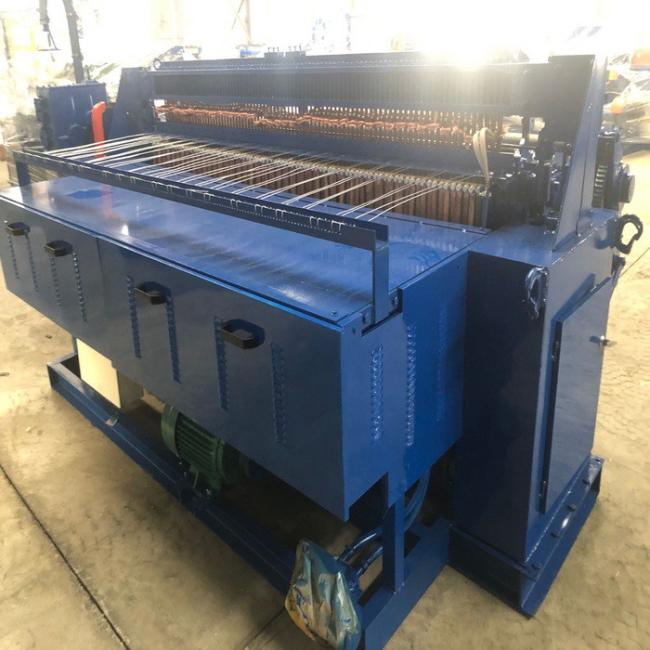

Servo Motor Automatic Diameter 0.6-1.3mm Welded Wire Mesh Machine
Automatic Wire Diameter 0.6-1.3 Welded Wire Mesh Machine
1. Product description
Automatic Wire Diameter 0.6-1.3 Welded Wire Mesh Machine is used for making wire mesh. The main body frame using thick steel plate and steel, that make the main structure is more fastness,and compact. The weft feeding system, the stepper motor automatically droping the weft automatic, it make the placed more accurately. Pulling mesh system adopts servo motor to pull the network, making the size of the pulling mesh more standard and accurate,and can adjust the cross wire distance at any size.
2. Technical parameter
| Model | Mesh width | Minimum mesh size (inch) | Wire diameter(mm) | Welding speed (rows/min) | Roll mesh length (m) | Other available mesh size (inch) |
| R- DHW | 2m | 1/2x1/2 | 0.6-1.3 | 90-120 | 110 | 1/2x1, 1x1/2, 1x1, 2x2 |
| R- DHW | 2m | 1/2x1/2 | 0.8-1.6 | 80-90 | 100 | 1/2x1, 1x1/2, 1x1, 2x2 |
| R- DHW | 2m | 1x1 | 0.6-1.3 | 90-110 | 110 | 1x2, 2x1, 2x2, 2x4 |
| R- DHW | 2m | 1x1 | 0.8-1.6 |
90-110 |
100 | 1x2, 2x1, 2x2, 2x4 |
| R- DHW | 2m | 1x1 | 1.4-2.6 | 80-90 | 80 | 1x2, 2x1, 2x2, 2x4 |
3. Application area
Automatic Wire Diameter 0.6-1.3 Welded Wire Mesh Machine is the most widely used material for fences and cages. It also plays a vital, load-bearing role in oven and barbecue grills, refrigerator shelves and racks, shopping carts and dishwasher baskets.
4. Advantages
a. We are the birthplace of wire mesh welding machine, representing the state of art technology,and is the first to use variable-frequency drive control.
b. Reasonable design, low noise, easy to operate.
c. We can provide detailed installation videos, manuals, electrical schemes, layouts to help your machine installation.
