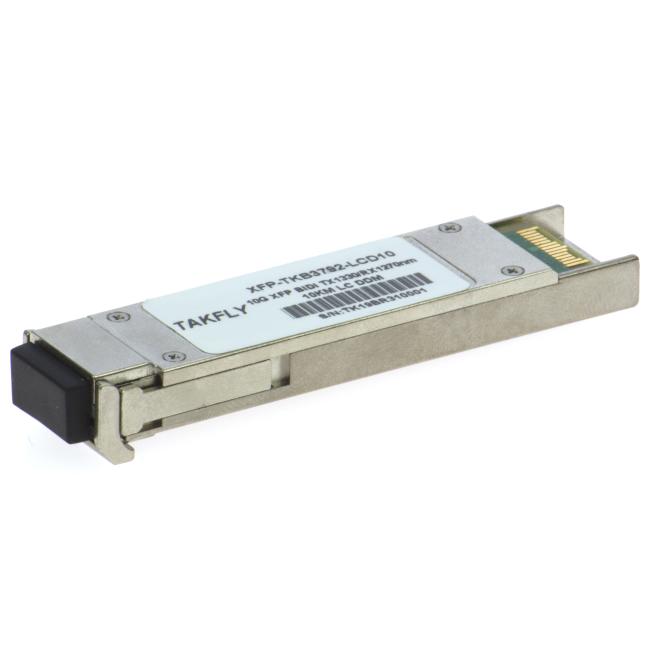

10G XFP BIDI SM LC Optical Transceiver Module 10KM 1270nm 1330nm
10G XFP BIDI 10KM 1270nm/1330nm SM LC Optical Transceiver Module
Description
The transceiver module comprises a transmitter with a 1270/1330nm DFB laser transmitter, an integrated 1330/1270nm detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC. Transmitter and receiver are separate within a wide temperature range of 0℃ to +70℃ and offers optimum heat dissipation and excellent electromagnetic shielding thus enabling high port densities for 10 GbE systems.
Features
- Supports 9.95Gb/s to 11.1Gb/s bit rates
- Hot-pluggable XFP footprint
- Maximum link length of 10km with SMF
- 1270/1330nmDFB laserTransmitterand1330/1270nm Receiver
- XFP MSA package with LC connector
- No reference clock required
- Loop Back Support.
- +3.3V,+1.8V power supply
- Power dissipation <2W
- Compatible with RoHS
- Built-in digital diagnostic functions
- Temperature range 0°C to 70°C
Application
- 10GBASE-BX 10G Ethernet
Absolute Maximum Ratings
| Parameter | Symbol | Min | Max | Unit | Ref. |
| Storage Ambient Temperature Range | -40 | +85 | ℃ | ||
| Powered case Temperature Range | 0 | +70 | ℃ | ||
| Operating Relative Humidity | RH | 85 | ％ | ||
| Supply Voltage Range @3.3V | Vcc3 | 0 | 3.6 | V | |
| Supply Voltage Range @ 1.8V | 0 | 1.98 | V |
Any stress beyond the maximum ratings can result in permanent damage. The device specifications are guaranteed only under the recommended operating conditions.
Pin Definitions
General Specifications
| Parameter | Symbol | Min | Typ | Max | Units | Ref. |
| Bit Rate | BR | 9.95 | 11.1 | Gb/s | 1 | |
| Bit Error Ratio | BER | 10-12 | 2 | |||
| Max. Supported Link Length | LMAX | 10 | km | 1 |
Compatibility
All of Takfly's transceiver modules are open sourced, can be coded to be fully compatible with major brands' products and devices, such as Intel, Dell, , Finisar, Arista, HP, Mellanox, Juniper, HUAWEI, H3C, etc. For other brands' devices, please specify when ordering so that we can write corresponding codes for your easy application.
