SC Single Mode Duplex Fiber Optic Adapter Beige Color Shutter Type
Shutter Type SC Single Mode Duplex Fiber Optic Adapter
SC fiber optic adapter, also called a fiber optic coupler, is a small device designed to terminate or link the fiber optic cables or fiber optic connectors between two fiber optic lines.
Application of Shutter Type SC Single Mode Duplex Fiber Optic Adapter
- Telecommunication
- CATV
- LAN & WAN
- Network
- Broadband
- FTTH
Features of Shutter Type SC Single Mode Duplex Fiber Optic Adapter
- Single mode and Multimode
- Zirconia sleeves
- NTT standard compatible
- Available without flanges or with flange for duplex, saving panel space
- Meet JIS5974 and bellcore GR-326 standard
- Compliant with IEC874-14 & IEC874-19
- All parts compliant with ROHS
Parameter of Shutter Type SC Single Mode Duplex Fiber Optic Adapter
| Product | SC Adapter | |
| Mode | S.M | M.M |
| Insertion Loss | ≤0.2dB | ≤0.2dB |
| Mating Durability(500 timer) | Additional Loss≤0.1dB | |
| Temperature Stability(-40℃～85℃) | Additional Loss≤0.2dB | |
| Operating Temperature | -40℃～+85℃ | |
| Storage Temperature | -40℃～+85℃ | |

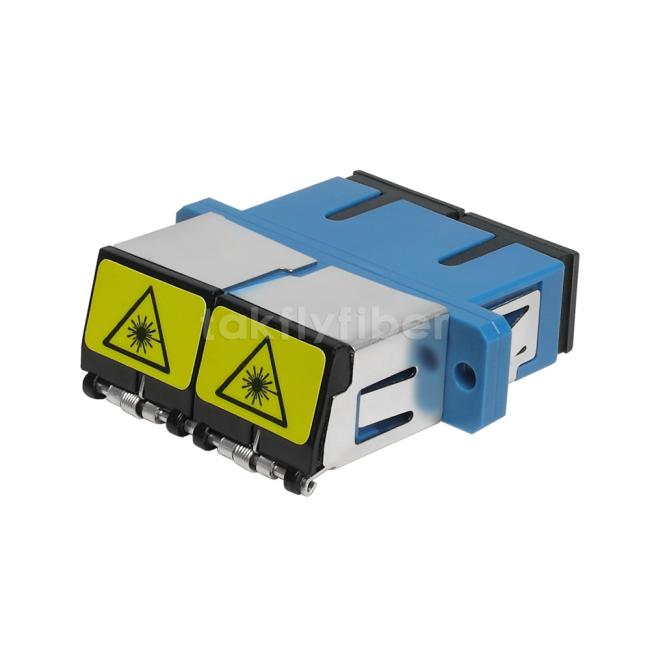

Picture of Shutter Type SC Single Mode Duplex Fiber Optic Adapter
