Gas filled Air Spring Shocks Weforma WBE 100-E1 G1/8 Continental FS 40-6
Weforma WBE 100-E1 G1/8 Continental FS 40-6 One Conlvoluted Air Spring Rubber Shocks
Refer Number
Continental FS 40-6
Continental FS 40 6
Contitech: FS 40-6 1/8 M8
Contitech: FS 40-6 1/8 M8
Contitech: FS40-6 1/8 M8
Contitech: FS 40 6 1/8 M8
Contitech: FS40 6 1/8 M8
Weforma: WBE 100-E1 G1/8
Weforma: WBE 100-E1
Weforma: WBE 100 E1
Weforma: WBE 100E1
Weforma : WBE100-E1
Phoenix: SP 1 B 04
Phoenix: SP1B 04
Phoenix: SP1B04
The detailed Specifications and techical parameters: 1B4060
The Max. Diameter: 145mm
Air hole/air inlet: G1/8
Working stroke: maximum 110 mm to minimum 50 mm
Top plate screw (nut) teeth: M8×1.25
Bottom plate screw (nut) teeth: 2 x M8×1.25
Top cover diameter: 90 mm
Bottom cover diameter: 90 mm
Screw center distance: 20 mm
The air hole distance between the nuts: together
Min. pressure: 0 bar
Return force to min.height: ≤120N
Overall weight with clamped plates: 0.9kg
Vibration isolation - dynamic characteristic values
Design Height H: recommended 90mm, minimum 70mm
| Pressure p[bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V[l] |
| Force(Load) [KN] | 1.7 | 2.3 | 2.8 | 3.4 | 3.8 | 4.4 | 0.5 |
| Spring rate [N/cm] | 760 | 990 | 1220 | 1480 | 1610 | 1820 | |
| Natural frequency [Hz] | 3.5 | 3.3 | 3.3 | 3.3 | 3.2 | 3.2 |
Pneumatic application-static characteristic values
Force F[KN]
| Pressure p [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V [l] | |
| Height H[mm] |
100 | 1.2 | 1.6 | 2.0 | 2.5 | 3.0 | 3.4 | 0.6 |
| 90 | 1.7 | 2.2 | 2.8 | 3.4 | 3.9 | 4.4 | 0.5 | |
| 80 | 2.1 | 2.8 | 3.5 | 4.2 | 4.9 | 5.3 | 0.5 | |
| 70 | 2.3 | 3.2 | 3.9 | 4.7 | 5.4 | 6.2 | 0.4 | |
| 60 | 2.6 | 3.5 | 4.3 | 5.2 | 6.1 | 6.9 | 0.3 | |
Bladder air springs can be used in different situations
The shock absorption effect of the bladder-type air spring is far better than that of the traditional steel coil spring and buffer pad. In addition, due to the adjustable hardness and softness of the bladder air spring, it can be applied to shock absorption under various load conditions without replacing the shock absorber, and achieve a satisfactory shock absorption effect.
Such as gluing mill, stripping machine, calender roll, etc. After adjustment and use, the internal pressure of the bladder air spring is constant, which can provide stable and continuous power to the equipment according to the user's requirements. Different from the traditional fixed compression device, when encountering abnormal operation, due to the compressibility of the air, the bladder air spring can be further compressed to avoid further damage to the equipment.
Due to the high degree of softness of the bladder, the bladder-type air spring can almost directly eliminate the steps of design and experiment for curve operation or curved surface operation while ensuring the shock absorption effect and effect. sex.

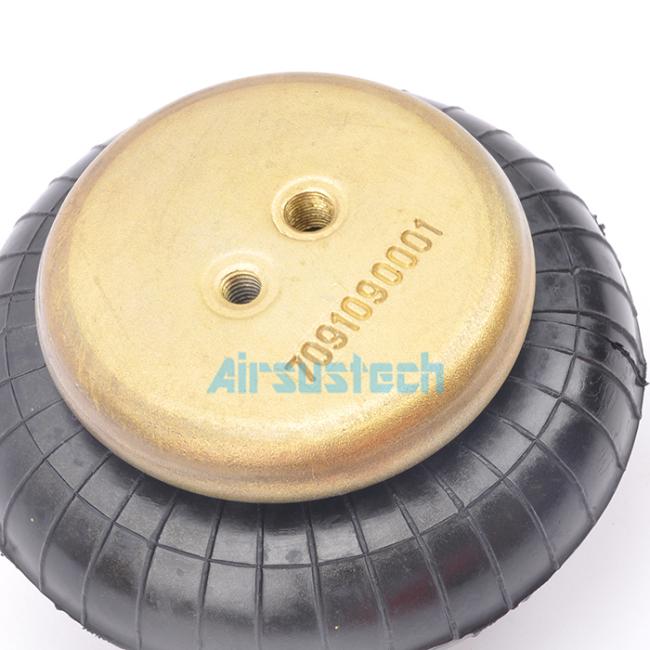

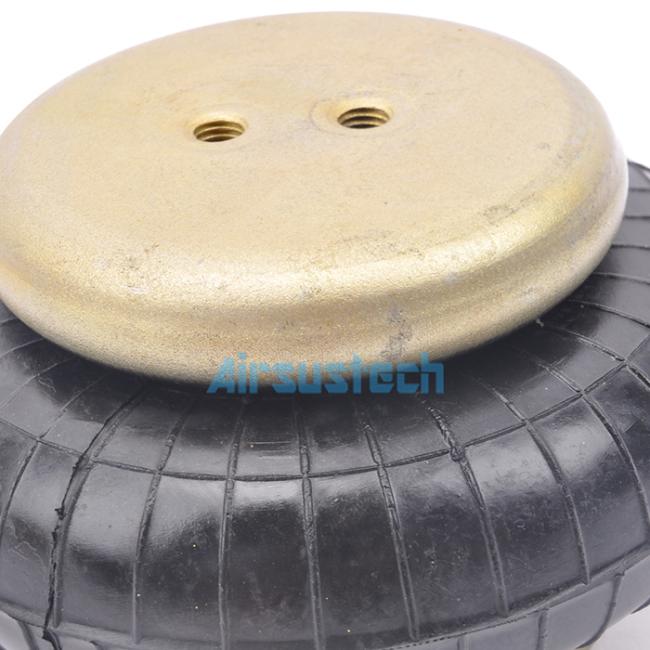

The reated picture
