Firestone Style 131 Rubber Air Spring W01-M58-6155 Firestone Industrial Air Bag
Firestone Style 131 Rubber Air Spring W01-M58-6155 Firestone Industrial Air Bag
1B7070 Air Spring Standards
Operating Temperature: -40℃+70℃
Working Pressure: 0 bar... 8 bar
Air Hole: 1/4 BSP
Maximum Diameter: 165 mm
Number of Convolutions: one
Working Stroke: 63 mm
Operation: gas filled
Materials - Body: natural rubber and steel
Dimensions - Min. Height: 51 mm
Dimensions - Max. Height: 114 mm
Country of Origin: China
OEM Original Manufacturer
|
Firestone Air Spring: W01-M58-6155 Firestone Air Spring: W01M586155 Firestone Air Spring: W01 M58 6155 |
|
Continental Contitech: FS 70-7 Continental Contitech: FS 707 Continental Contitech: FS 70 7 |
|
Phoenix Air Bellow: SP 1B 05 Phoenix Air Bellow: SP 1B05 Phoenix Air Bellow: SP1B05 |
|
Bos-ch Air Bag: 8224 19002 Bos-ch Air Bag: 822419002 |
|
Festo Air Suspension: EB-165-65 Festo Air Suspension: EB16565 Festo Air Suspension: EB 165 65 |
|
Weforma Rubber Air Spring: WBE 200-E1 Weforma Rubber Air Spring: WBE 200E1 Weforma Rubber Air Spring: WBE 200 E1 |
Critical Safety Guidelines for Air Spring Applications
1. Height Limitations
- DO NOT exceed maximum extension height
- DO NOT compress below minimum height specification
Noted: Prevents premature fatigue and extends service life
2. Pressure Restrictions
- Maximum operating pressure: 0.7 MPa (101.5 PSI)
- Never exceed rated pressure limits
Noted: Avoids structural damage and potential failure
3. Proper Installation Alignment
- Never operate in a twisted or misaligned state
- Ensure correct mounting orientation before use
Noted: Prevents uneven wear and maintains performance
4. Additional Best Practices
- Regularly inspect for abrasions, cracks, or deformation
- Maintain clean air lines and connections
- Follow manufacturer's load capacity guidelines
FAQ
| Q: What will you do for customer's complaint? A: We will respond quickly to our customers within 24 hours. |
| Q: How long does it take to get product after placing the order? A: The delivery time of your ordered product varies as per what you've ordered and the shipping method that you've chosen. The estimated delivery time is mentioned during the checkout process, so be carefree while shopping. |
| Q: Is it possible to receive a proforma invoice? A: Yes, we will send you a proforma invoice if you choose for the payment method: ‘Bank Transfer Payment’ at the check out. You can pay with bank transfer, PayPal or Credit Card after you have received the proforma invoice. We will ship your order out as soon as we have received the payment. |

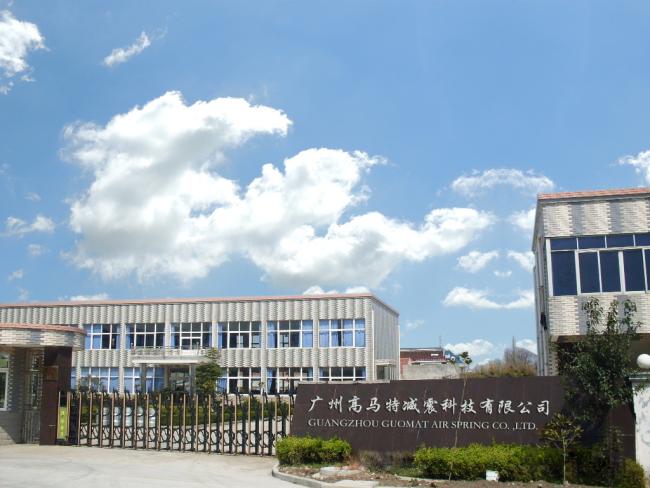

About Guangzhou Guomat air spring Co.,Ltd. – Your Industrial Air Spring Partner
Guangzhou Guomat air spring Co.,Ltd. is located in China's first open ports -- Guangzhou, from the Guangzhou Baiyun International Airport only fifteen minutes by car. Our factory has an area of about 20,000 square meter sand is modernly built with advanced rubber air spring manufacturing equipment. Is currently China's largest production base of airspring.
Our products are mainly used in commercial vehicles,track vehicles,industrial machinery equipment base. The main products are: rubberairspring, passenger car truck airbag, airbag, paper making machinery industry with the air spring, large washing machine, automotive rubber air spring, now has hundreds of models and styles, but also according to customer requirements or customer's existing product specifications to design and production, welcome new and old customers call advisory.
Our company adopts the most advanced domestic air spring dedicated processing equipment and the introduction of foreign production technology of air spring Combined with our unique production process, in accordance with international standards of production, to create a world-class products.

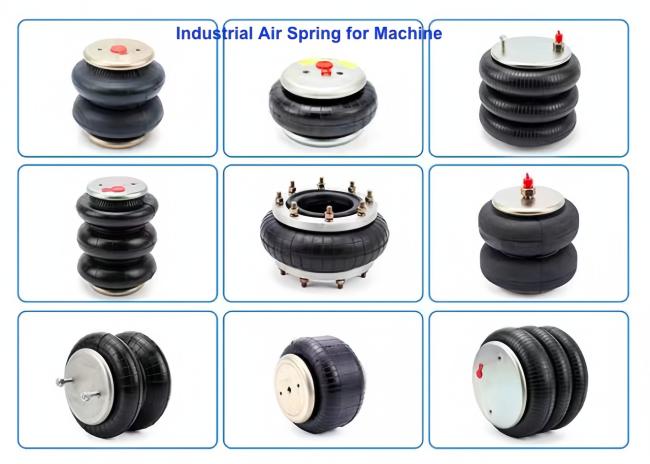

Our Industrial Air Spring Range
Why Choose Us?

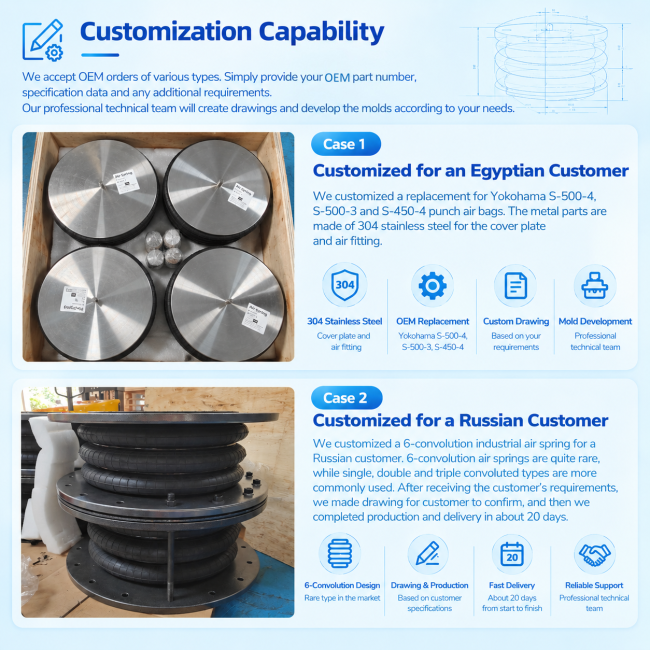

Customization Capability
Certificate

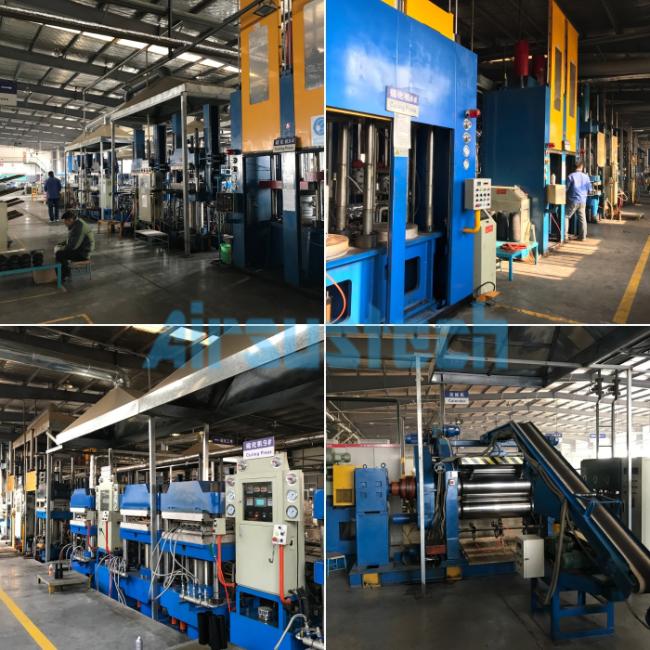

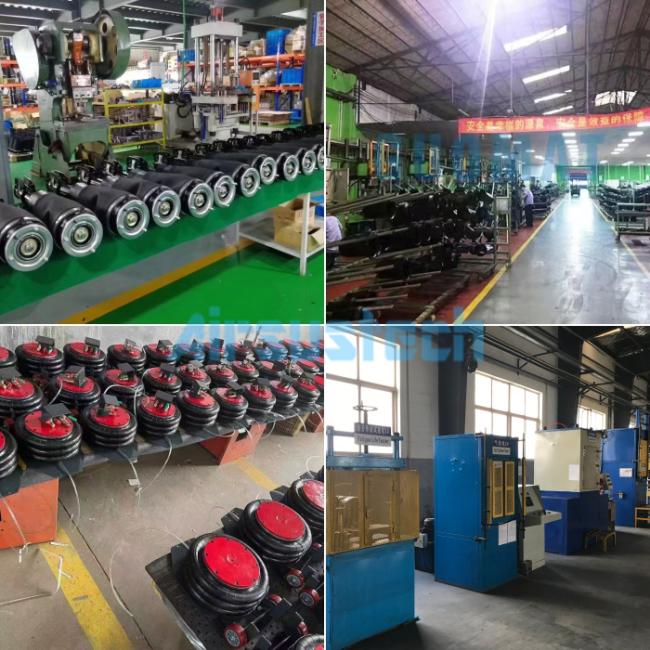

Our Manufacturing Capabilities
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
